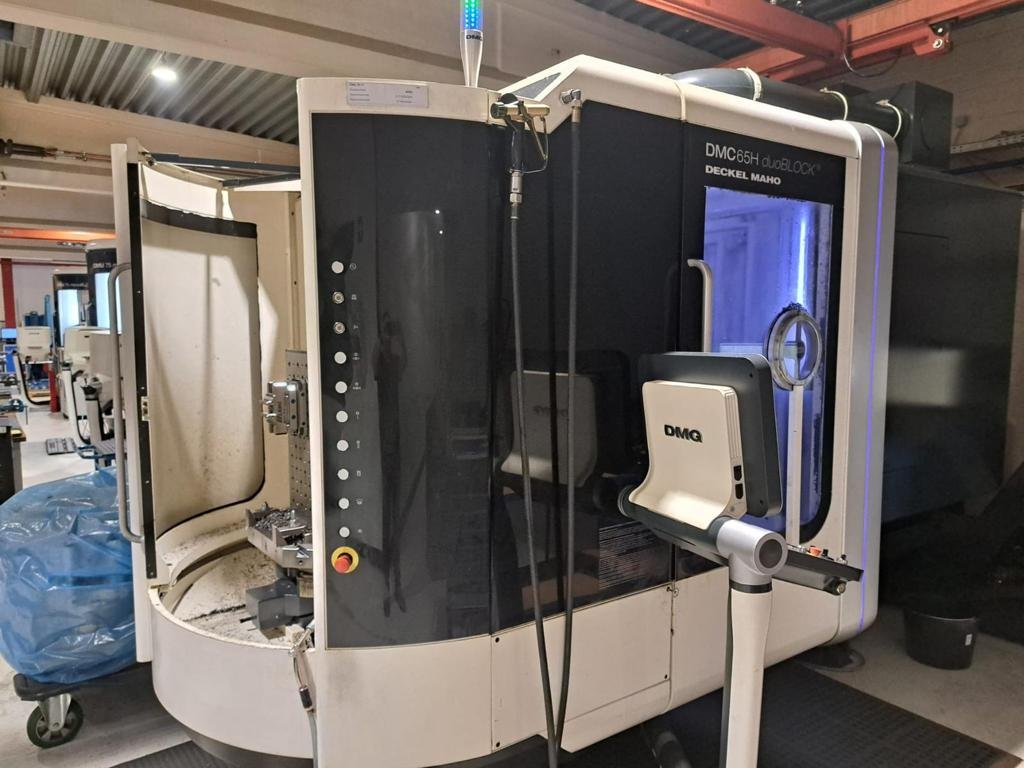

Horizontal machining center (HMC)
DECKEL MAHO - DMC65 H duoBLOCK
4 Axis Controlled simultenious
New WEISS spindle in 2022
New Window SG Glass
BLUM laser measuring
Renishaw 3D Measuring taster
Filtration and coolant system 600 Liter and 40 bar
X - Travel: 650mm
Y - Travel: 700mm
Z - Travel: 700mm
B-Axis indexing: 360°
Table Length: 450mm
Table Width: 500mm
Table load: 600
Number of pallets: 2
Feed rate X-Axis: 60000mm/min.
Feed rate Y-Axis: 60000mm/min.
Feed rate Z-Axis: 60000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 13kW
Speeds / ranges: 12000Rpm
ATC / revolver: 120
Coolant true spindle / Bar:40
Number of controlled axis:4
Chip conveyor: Yes
Coolantsystem: Yes

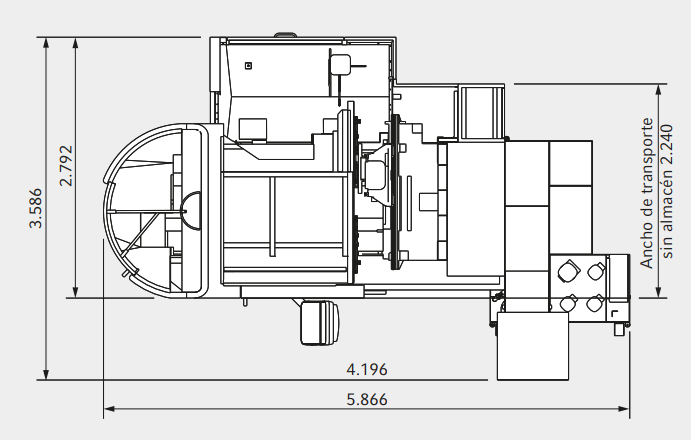

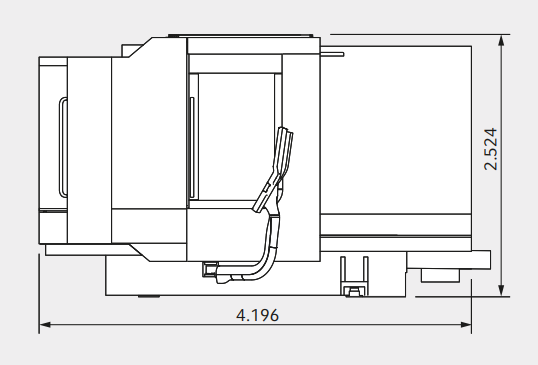

Length: 5900mm
Width: 3586mm
Height: 2524mm
Weight: 11000kg
Specifications:
Horizontal machining center (HMC)
DECKEL MAHO - DMC65 H duoBLOCK
4 Axis Controlled simultenious
New WEISS spindle in 2022
New Window SG Glass
BLUM laser measuring
Renishaw 3D Measuring taster
Filtration and coolant system 600 Liter and 40 bar
X - Travel: 650mm
Y - Travel: 700mm
Z - Travel: 700mm
B-Axis indexing: 360°
Table Length: 450mm
Table Width: 500mm
Table load: 600
Number of pallets: 2
Feed rate X-Axis: 60000mm/min.
Feed rate Y-Axis: 60000mm/min.
Feed rate Z-Axis: 60000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 13kW
Speeds / ranges: 12000Rpm
ATC / revolver: 120
Coolant true spindle / Bar:40
Number of controlled axis:4
Chip conveyor: Yes
Coolantsystem: Yes
Length: 5900mm
Width: 3586mm
Height: 2524mm
Weight: 11000kg
