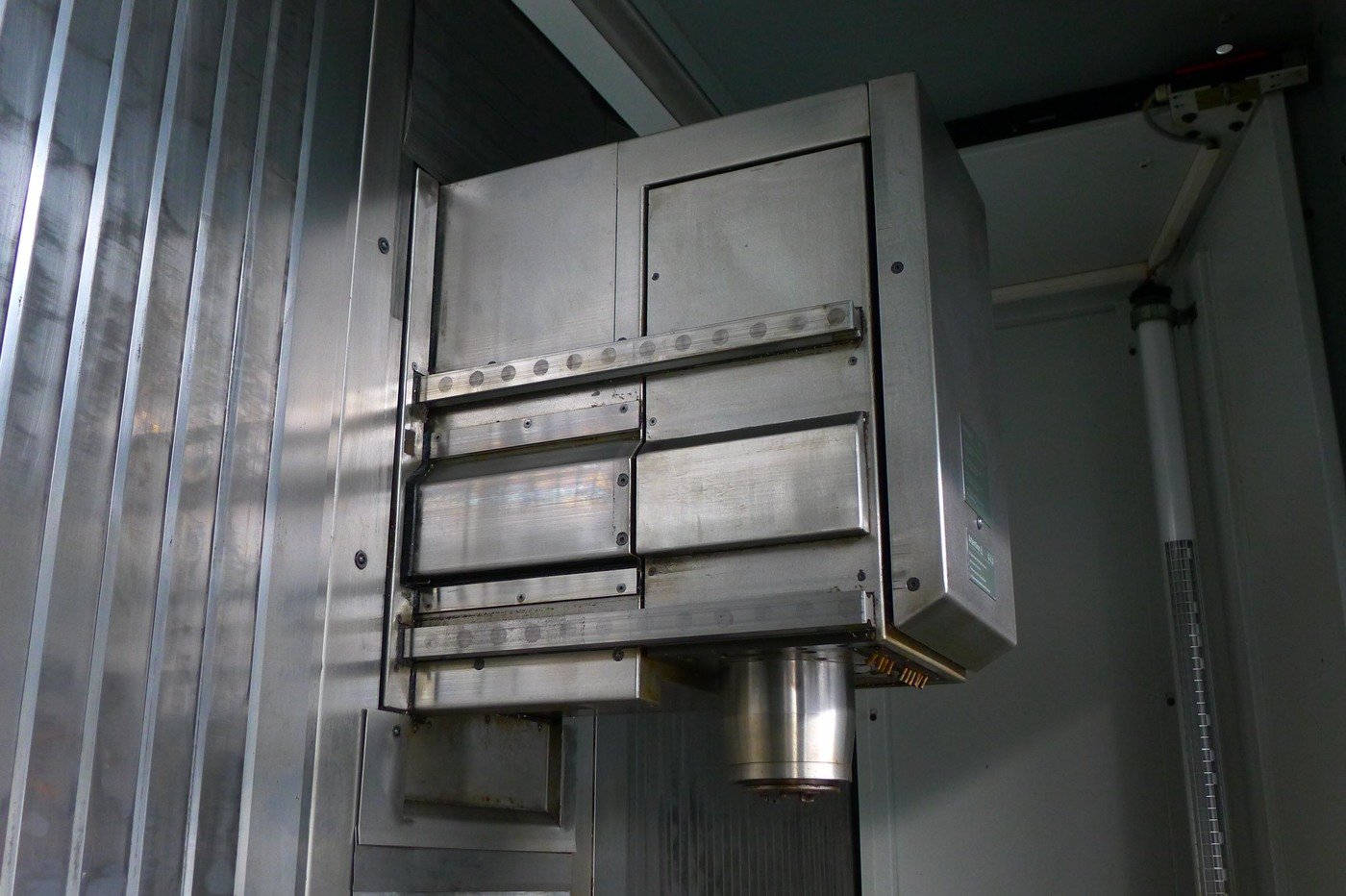

DMG DMF 220 Linear X 2200 Y 560 Z 720 with 4 & 5 Axis 5110 = Mach4metal
Spindle Taper BT 40
power on spindle 35 kW
X – Travel 2200 mm
Moving column
Control SIEMENS 840D
Y – Travel 560 mm
Z – Travel 720 mm
Table Length x Width 2600 x 600 mm
Table load 2200 Kg
Spindle speeds / ranges 12.000 Rpm
ATC tool changer 30
Coolant true spindle / Bar Yes
Number of controlled axis 3 + 2
CNC Automatic milling head / Gr.90Gr 2.5 indexing
Specifications:
DMG DMF 220 Linear X 2200 Y 560 Z 720 with 4 & 5 Axis 5110 = Mach4metal
Spindle Taper BT 40
power on spindle 35 kW
X – Travel 2200 mm
Moving column
Control SIEMENS 840D
Y – Travel 560 mm
Z – Travel 720 mm
Table Length x Width 2600 x 600 mm
Table load 2200 Kg
Spindle speeds / ranges 12.000 Rpm
ATC tool changer 30
Coolant true spindle / Bar Yes
Number of controlled axis 3 + 2
CNC Automatic milling head / Gr.90Gr 2.5 indexing
