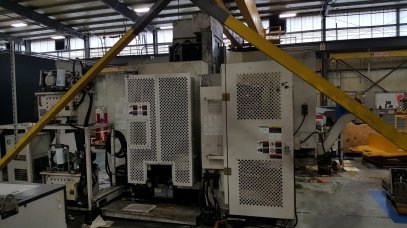

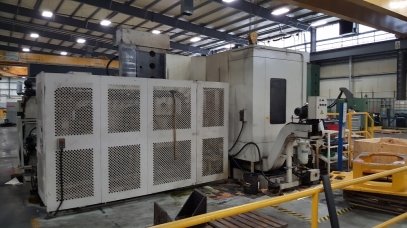

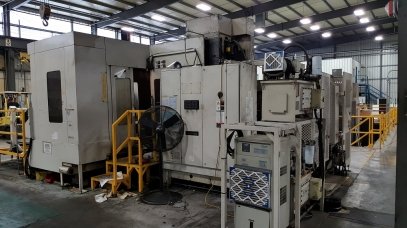

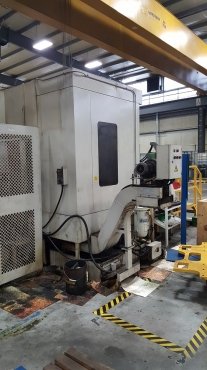

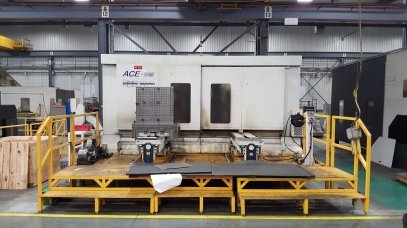

Doosan ACE-H100 Machinign Center

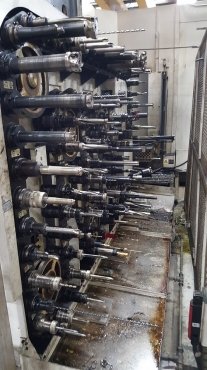

All shown tools in the tool magazine are included
Machine is in perfect condition and under power.
Machine is immediately available
Dismantling can be quoted via request.
Specifications:
Type of CNC Fanuc 18i MB
X travel (longitudinal) 1999 mm
Y travel (transversal) 1249.7 mm
Z travel (vertical) 1249.7 mm
Table length 1000.8 mm
Table width 1000.8 mm
Max load on table

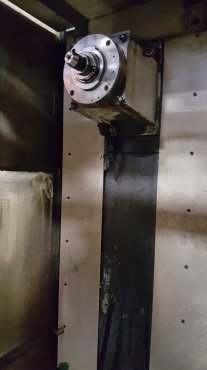

Spindle taper CAT 50
Max. spindle speed 4500 rpm
Spindle motor power
Length x width x height 7500.6 mm × 6469.4 mm × 3578.9 mm
Weight 27500 kg
Worked power hours
State excellent
At local norms yes
Status under power
Description

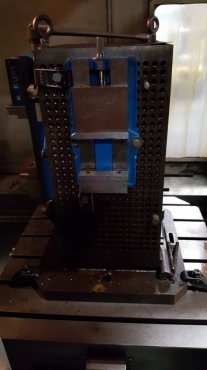

Table size 1000 x 1000 mm
Number of pallets 2
Movement x-Axis 2000 mm
y-Axis 1250 mm
z-Axis 1250 mm
Table index 1°
Number of tools in magazine 120 pieces
Maximum spindle speed 20-4.500 min
Tool taper CAT 50

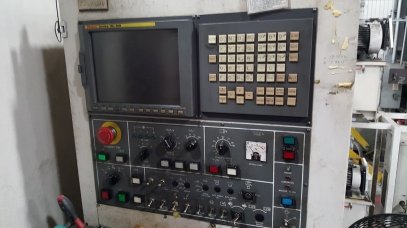

CNC control Fanuc 18 i-MB
