Description:

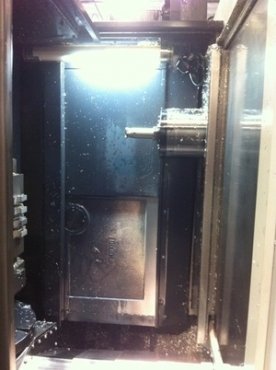

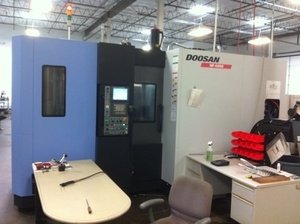

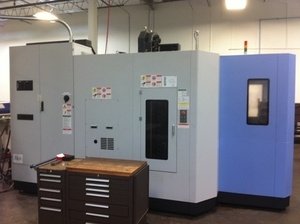

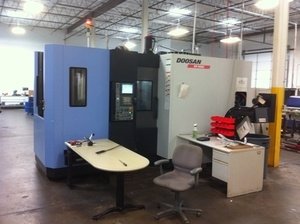

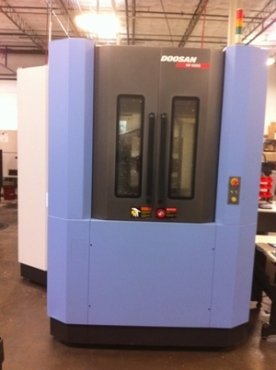

23.6"X, 22"Y, 23.6"Z, DOOSAN HP 4000, 2008, Part Probe, Fanuc 18i-MB
Specifications:
General Specifications As Per Brouchure:
Control: fanuc 18i-mb
X axis travel: 600 mm (23.6 ")
Y axis travel: 560 mm (22.0")
Z axis travel: 600 mm (23.6")
Pallet table size: 15.75" x 15.75"
Allowable load: 880 lbs
Maximum part swing: 23.6" diameter x 31.5" height
Pallet surface: (24) m16 x p2.0 tap
Changing method: rotary shuttle
Pallet change time: 7 seconds
Spindle nose to p.c.: 5.9 - 29.5"
Spindle center to pallet top: 1.97 - 24.0"
Spindle taper: iso no. 40
Spindle speeds: 140 - 14,000 rpm
Ac spindle motor: (15 min): 22 kw (30 hp)
Spindle torque: 140 ft-lbs
Automatic tool changer:
Number of tools: 60
Tool shank: cat 40
Max tool diameter: 2.9"
With empty adjacent pockets: 5.5"
Max tool length: 13"
Max tool weight: 22 lbs
Tool change time: 1.5 seconds (tool-to-tool)
Tool change time: 4 seconds (chip-to-chip)
Machine motion:
X and z axis rapid traverse: 60 m/min (2,362 ipm)
Y axis rapid traverse: 60 m/min (2,362 ipm)
Cutting feed: .04 - 1,181ipm)
Least command increment: .0001")
X axis feed thrust: 1,693 / 2,708 lbs (continuous/intermittent)
Y axis feed thrust: 1,693 / 2,708 lbs (continuous/intermittent)
Z axis feed thrust: 1,693 / 2,708 lbs (continuous/intermittent)
Equipped with (must be verified by buyer):

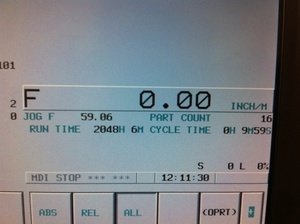

Fanuc 18i-mb control
14,000 rpm direct drive spindle
Big plus dual contact spindle taper
High precision spindle with two double-row cylindrical roller bearings and two
Angular contact ball bearings pre-loaded by stepped sleeve
Spindle taper air blow
, swiveling operator console
Massive meehanite cast iron bed
Large linear motion guides
Table clamping by large diameter curvic coupling
Servo motors mounted directly to the ballscrews by flexible coupling
Double pre-tensioned ballscrews
Fast 60 m/min (2,362 ipm) x,y and z rapid traverse
Rigid tapping
Custom macro b (user definable)
Cam type double arm atc 60 tools
Automatic pallet changer with (2) t-slotted pallets
Full enclosure splash guard
Work light
3 color tower signal light

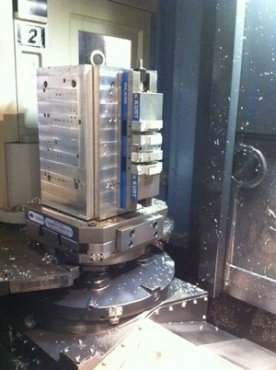

(3) Tombstones
Part Probe
Installed 9/9/08
