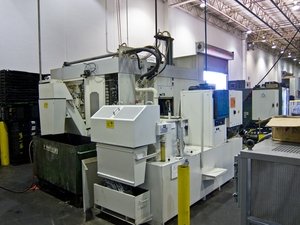

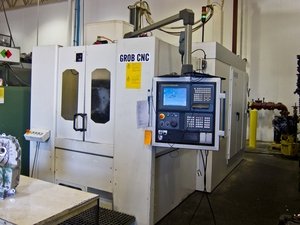

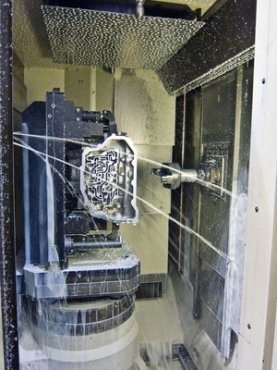

2006 GROB BZ500 Specifications
• Travels Rapid
o X axis 630mm/24.8” 60M/min 2362ipm
o Y axis 630mm/24.8” 60M/min 2362ipm
o Z axis 500mm/19.68 70M/min 2756ipm
• Table
o Extended Table Option 500mm x 630mm/19.68” x 24.8”
o B axis Full (360K x .001*)
o Max Table Weight 800Kg/1,760 lbs.
o Auto Pallet Change time 9 seconds
o Max Piece Height from Table 930mm/36.6”
o Max Piece Dia. 740mm/29.1”
• Spindle
o Taper HSK-A63
o Motor 45/60 Hp 23/30 Ft lbs of Tq
o RPM 15,000
o 0-Max rpm 0.7 seconds
o Coolant Thru 80 Bar/1160 psi
• Automatic Tool Changer
o Chain Type 60 positions
o Max Tool Length 380mm/14.96”
o Max Tool Dia. 92mm/3.62” (without adjacent pockets open)
o Max Tool Dia. 150mm/5.90” (with adjacent pockets open)
o Max Tool Weight 8Kgs/17.6 lbs
o Chip-to-chip 3.8 Sec. (related to 15k rpm ,15K->0->15K)
Included Options:

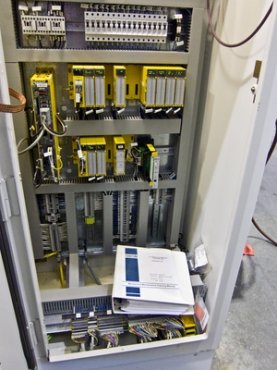

• Fanuc 160iM CNC Controller
• Heidenhain Scales on X,Y,Z axis
• Hydraulic Clamping for fixturing integrated with CNC rotary table
• Rear Chip Conveyor
• Additional Micron Coolant Filtration unit
Specifications:
Specification Description
Approximate Machine Age: 1997
Chuck Size: 10"
Swing Over Saddle 16.54"
Max. Cutting Diameter: 16.53"
Max Turning Length: 49.21"
Spindle Speeds: 65-3500 RPM
Gear Box YES 2 Speed
Spindle Motor: 40/30
Spindle Nose A2/8
Spindle Bore: 3.15"
Max Bar Size 2.65"
Turret Configuration - Upper: 12 Tools Bidirectional, VDI 40
Turret Configuration - Lower: 10 Tools Bidirectional, VDI 40
Z- Axis Head One Travel 52.16" Upper/ 50.00" Lower
X- Axis Head One Travel 11.81" Upper/ 7.68" Lower
Rapid Travels: X , Z X = 591 / Z = 787 IPM
Quill Type Quill MT# 5
Quill Diameter / Stroke (3.94") / Stroke: (5.91")
Dimensions: L X W X H 171" x 100" x 86.61"
Approximate Weight: 18,700 LBS
Equipped With:
Okuma OSP L 7000 CNC Control
Twin Turret Design
Lift-up Chip Conveyor
Simple tow along Tailstock w/ Programable Live Quill
10" Kitagawa 3-Jaw Chuck
Transformer
Solid Box-Way Construction
All Available Manuals
Thread Feed Hold
Cycle time Reduction
60 Meters of Mem.
Turret Pos. Compensation
Tool Life Management
NC Torque Limit
Animation
NC Work Counter
Mac Man
LAP 4
Nose-R 2B
User Task 2
EXP. Auto Champer
Cycle Time Calulation
Spindle Oreintation
Chuck Open Close Comformation
Auto Door
