HAAS, 500H, HORIZONTAL, MACHINING CENTERS
  • Condition:Used
  • Category:MACHINING CENTERS
  • Type:HORIZONTAL
  • Manufacturer:HAAS
  • Model:500H
  • YOM:2006
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:CNC
  • ID:AS28246
Description:

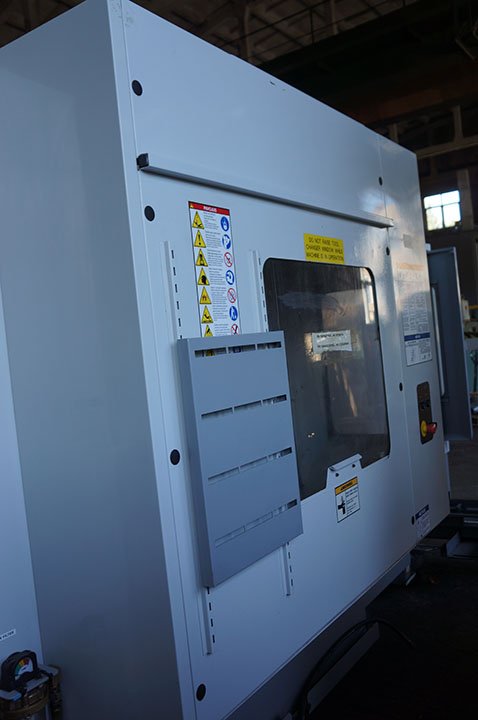

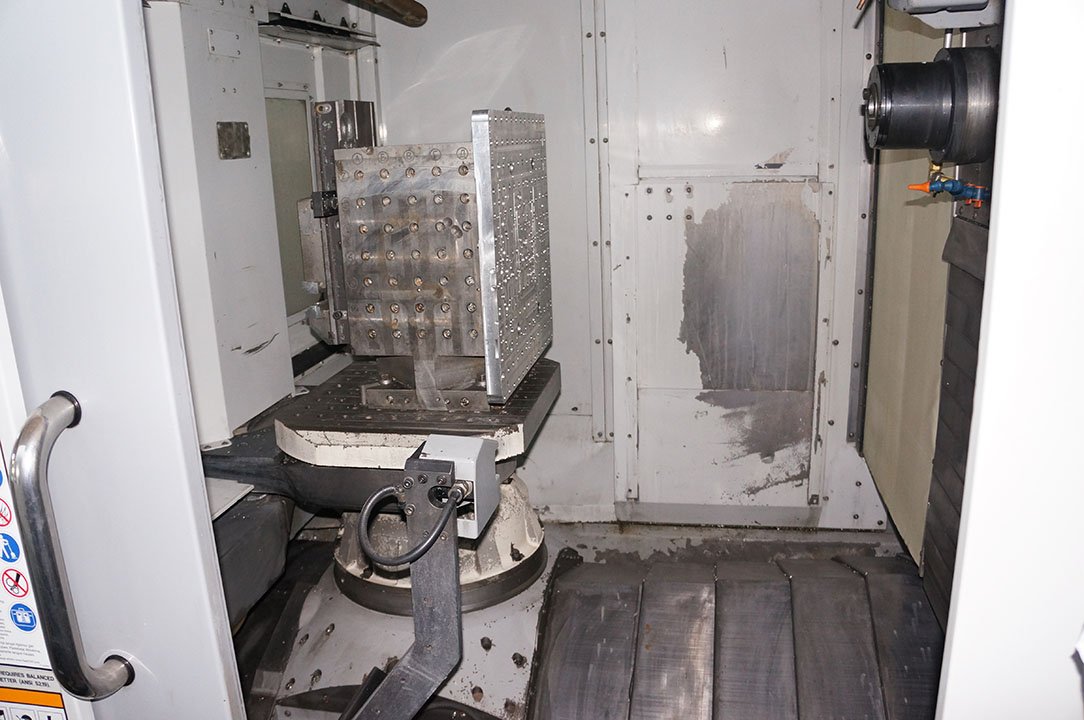

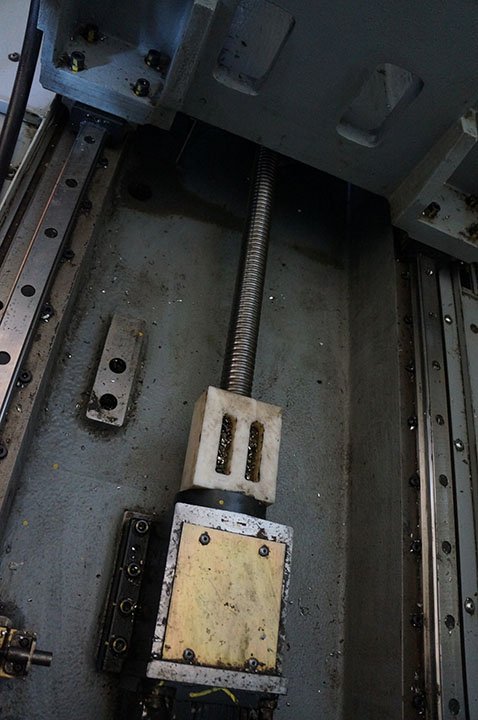

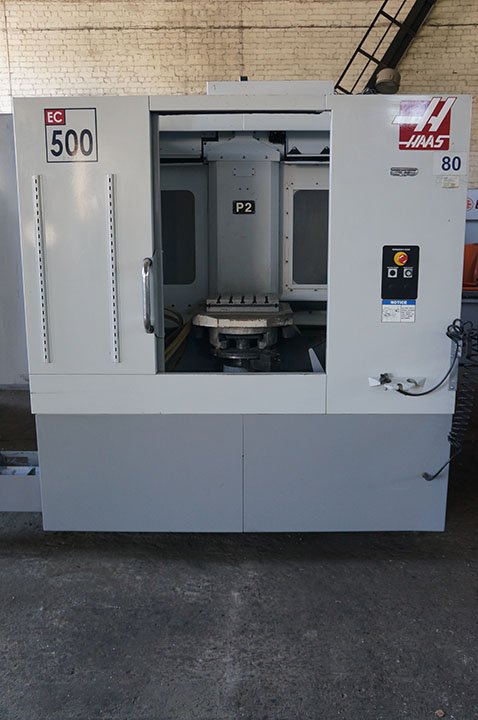

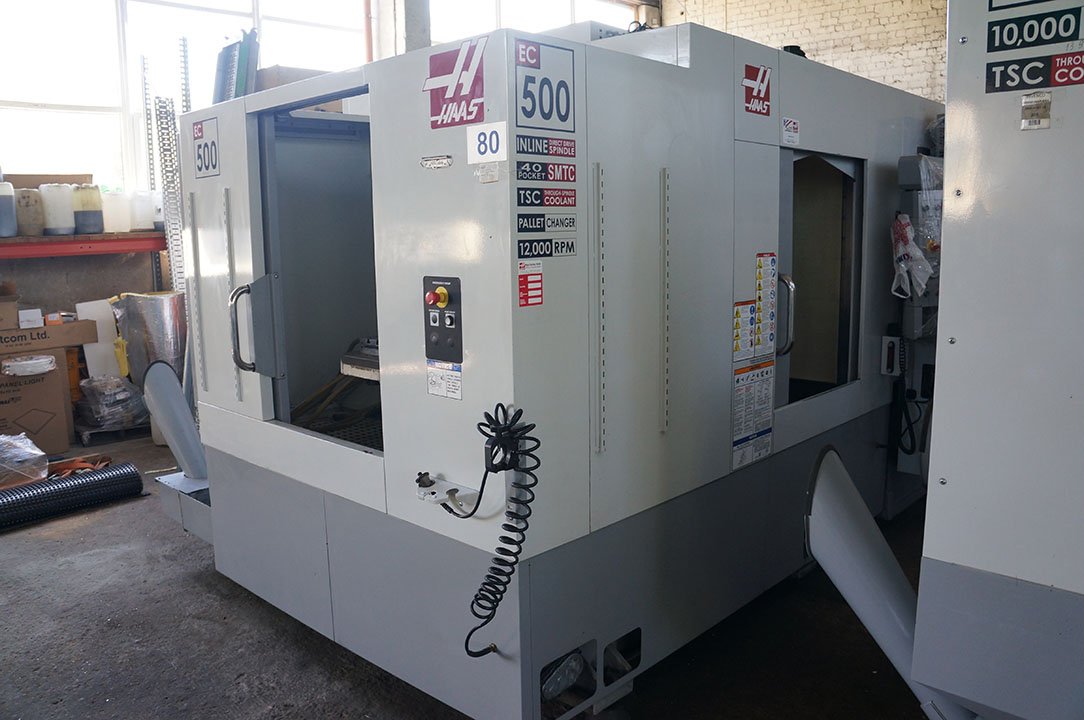

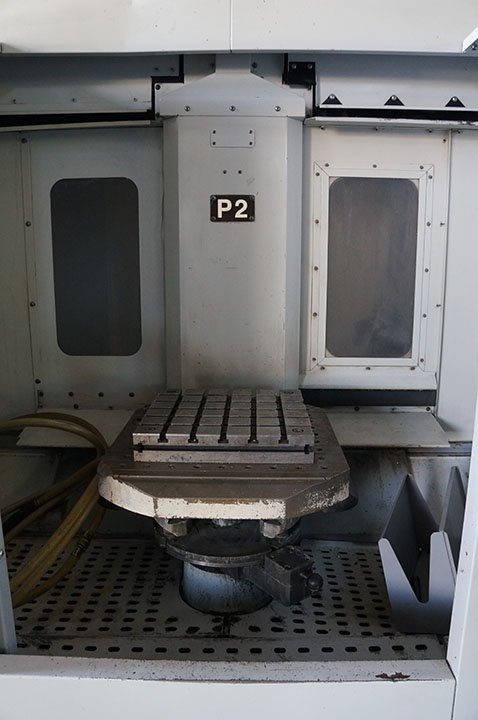

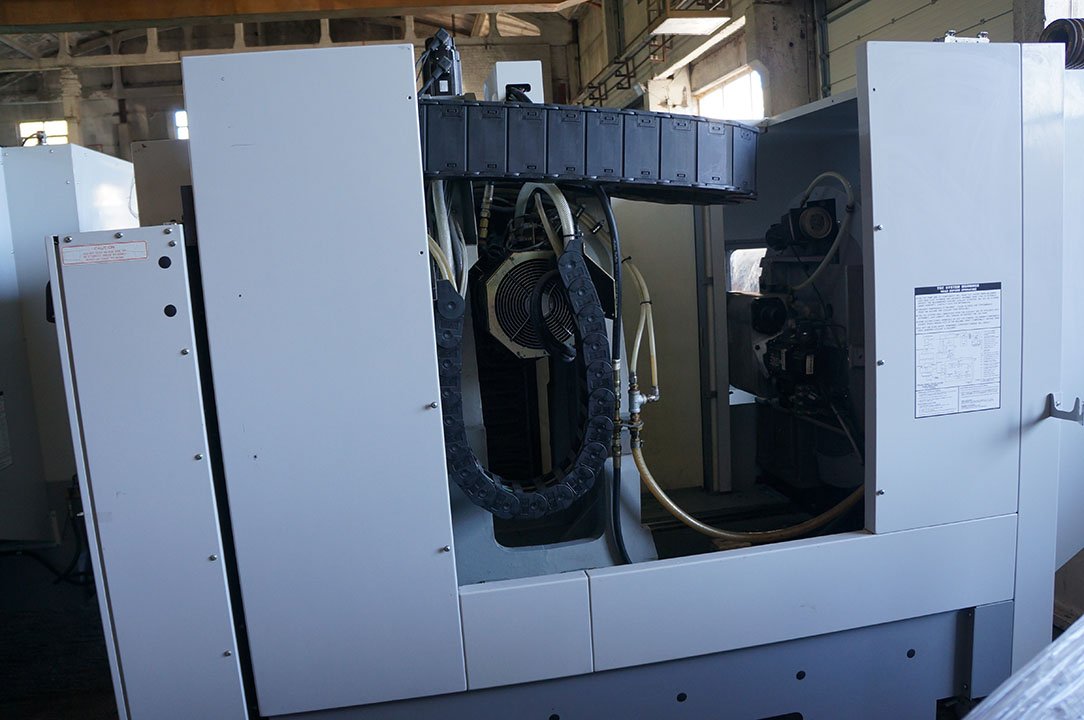

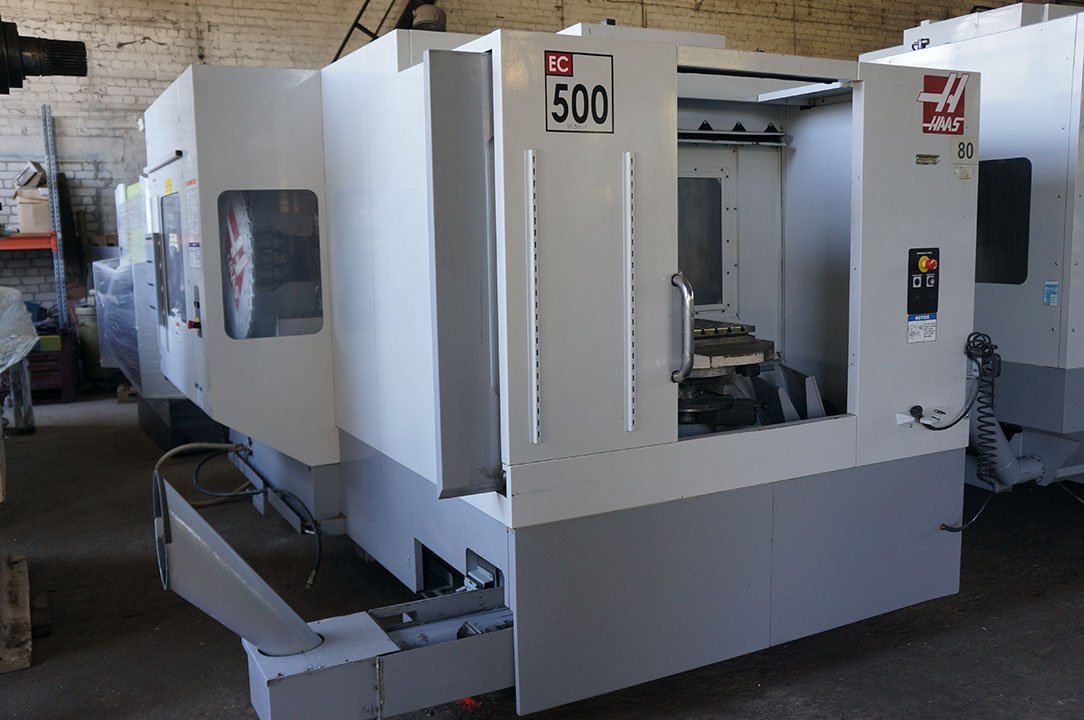

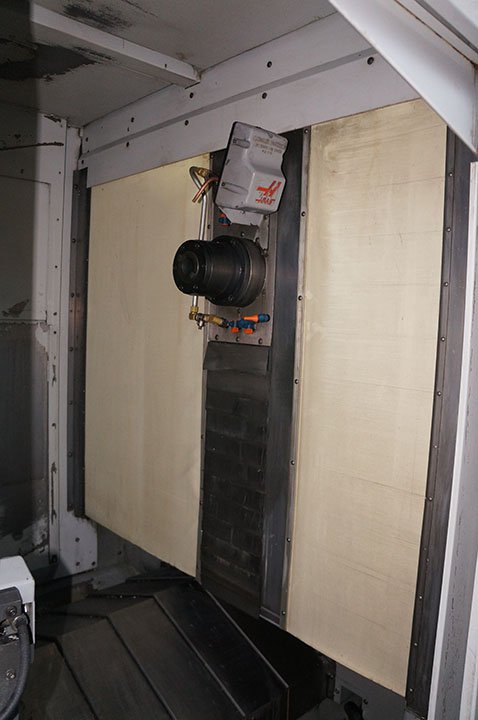

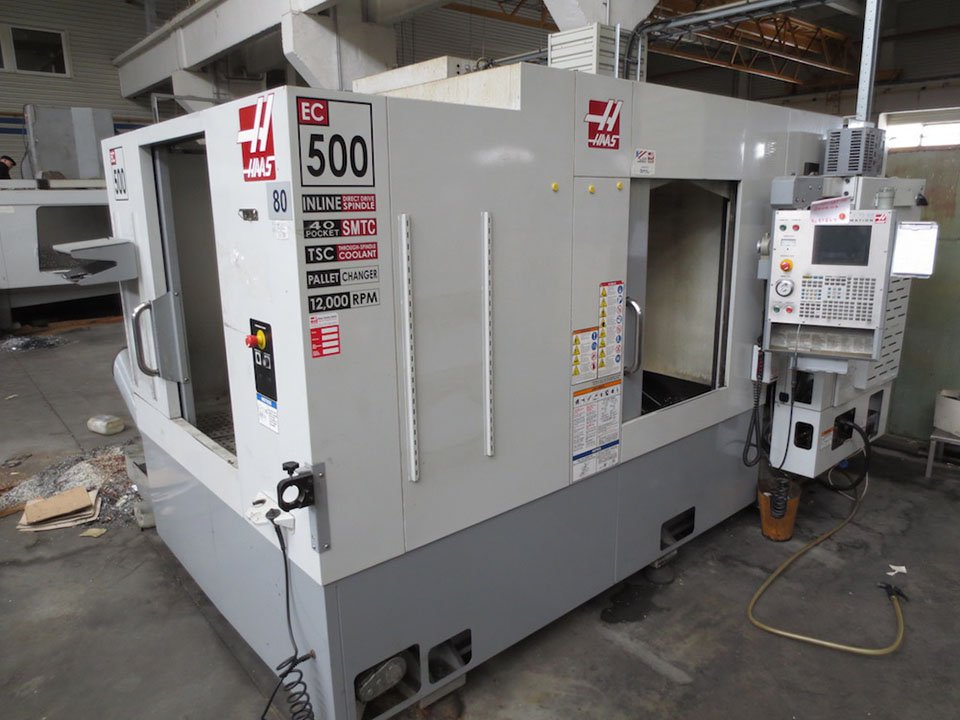

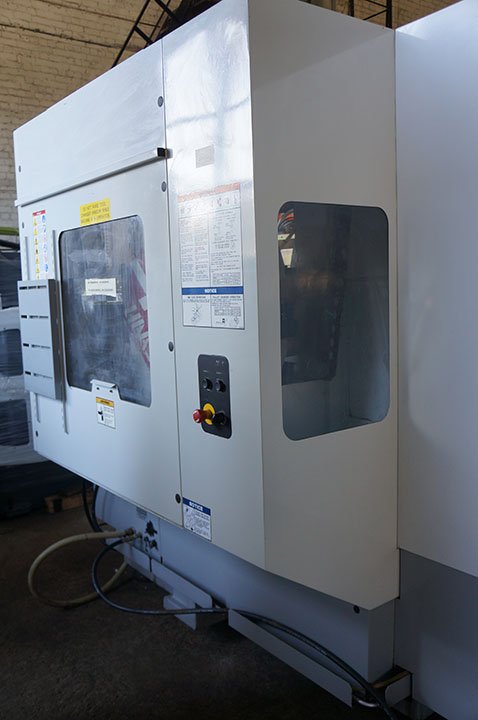

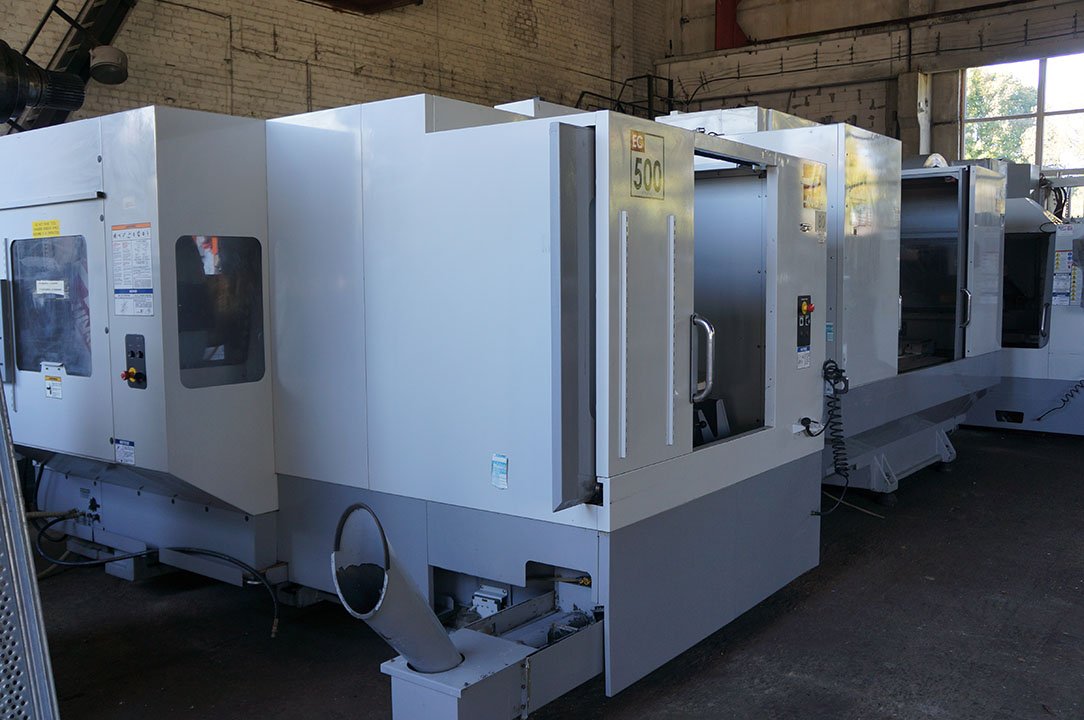

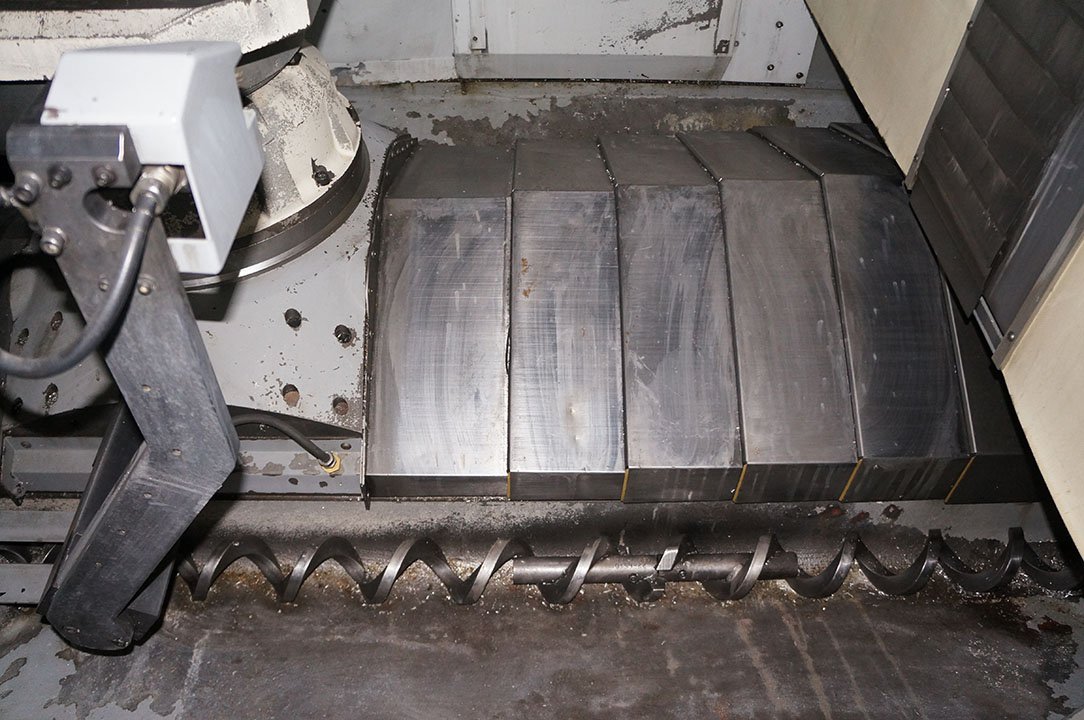

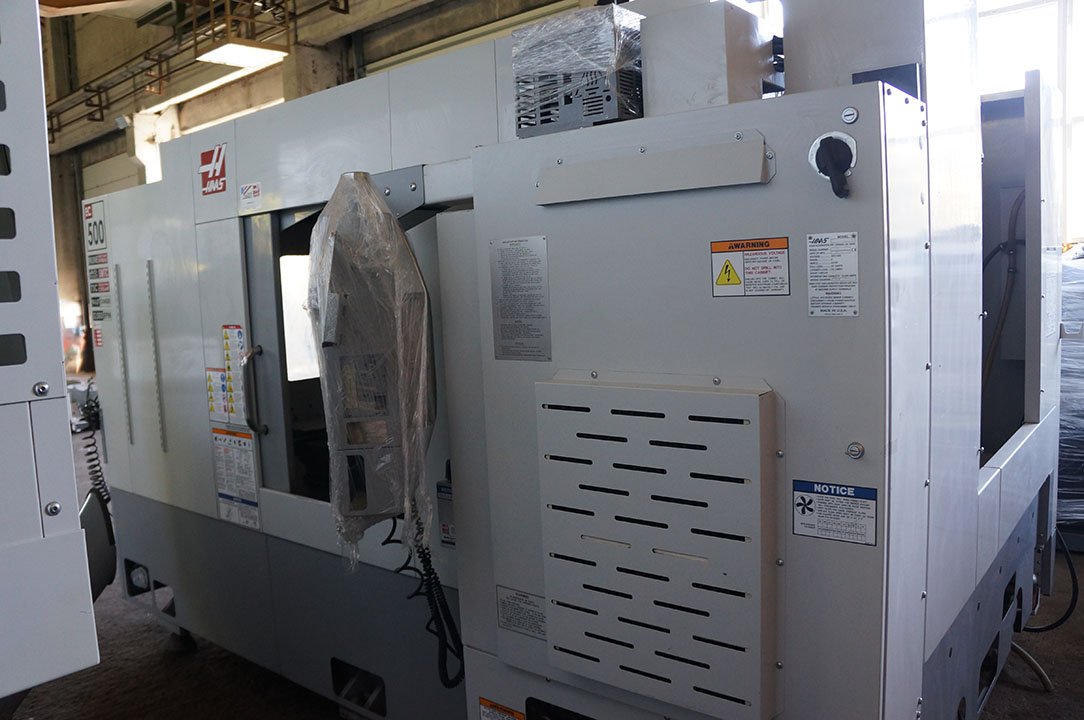

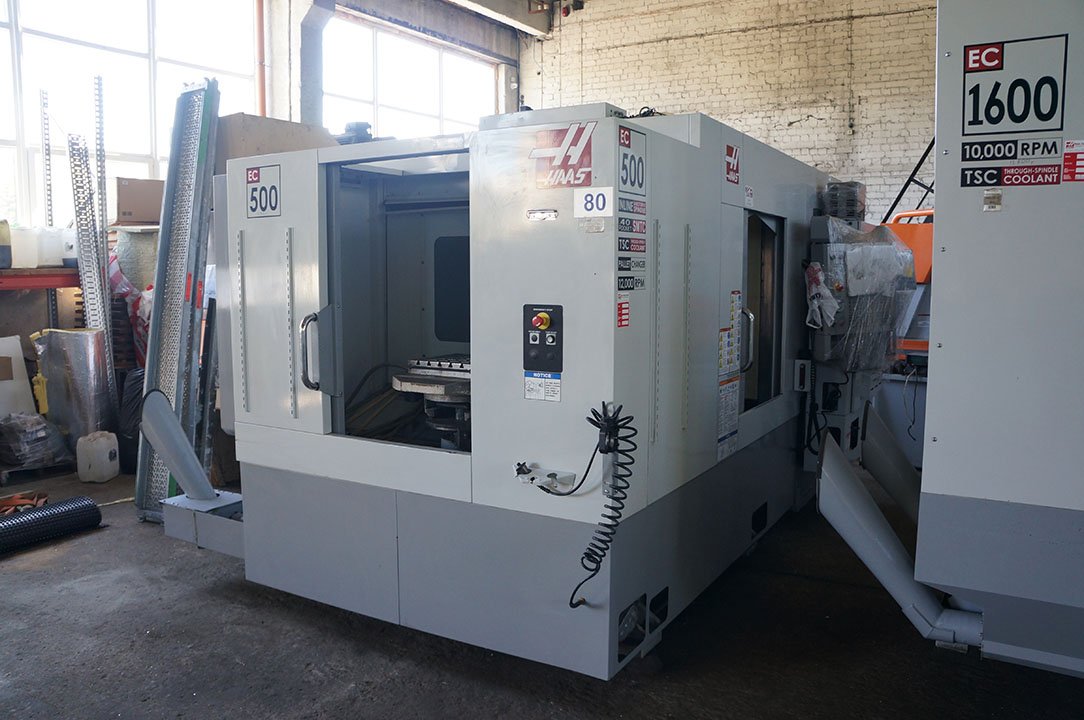

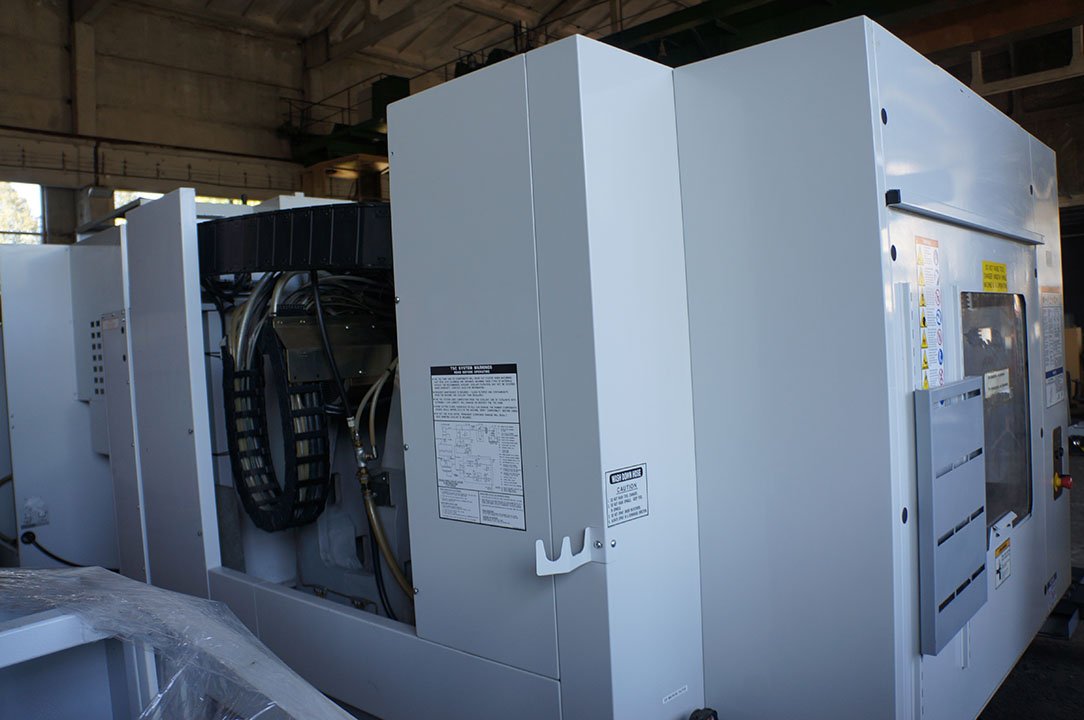

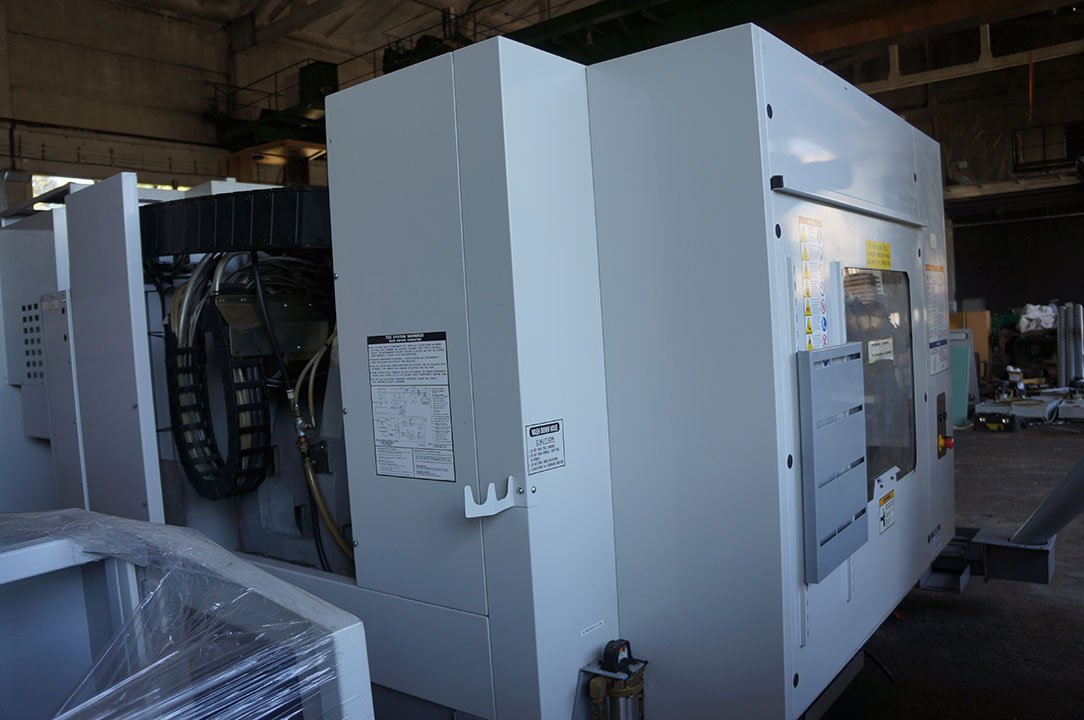

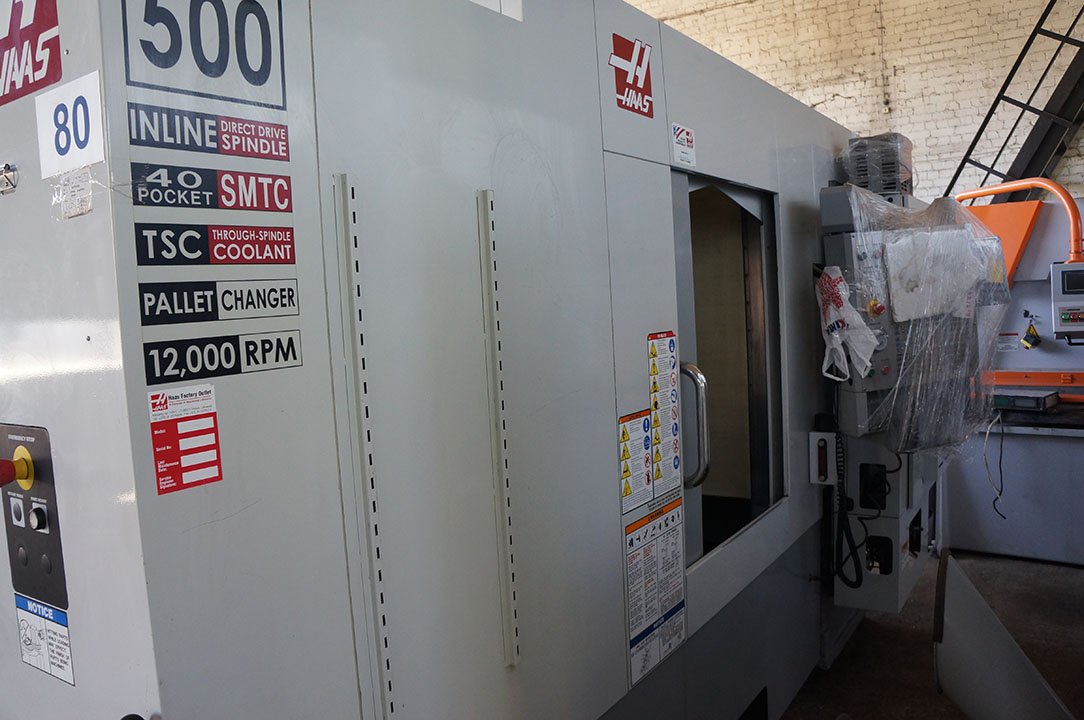

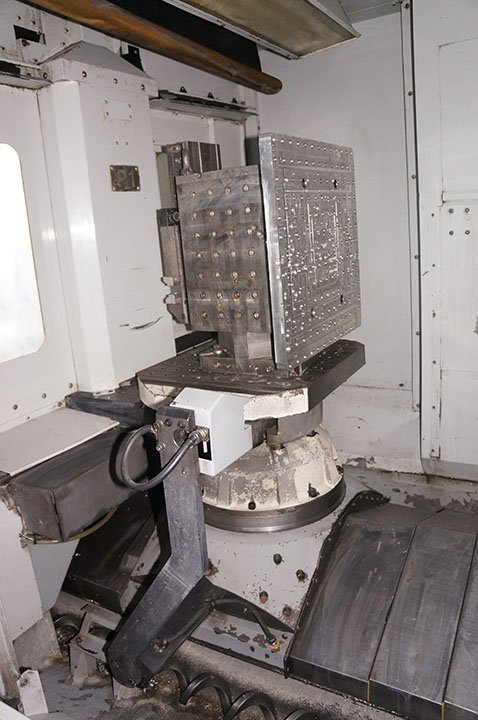

CNC Horizontal machining center HAAS 500HE made in 2006 in USA.
Specifications:
Working stroke:
-X-axis: 813 mm
-Y-axis: 508 mm
-Z-axis: 711 mm
-A-axis: 1°
Max. work-piece weight: 456 kg
Spindle taper: ISO 40
Max. spindle rotation: 8000 rpm
Max. torque at 1400 rpm: 102 Nm
Max. spindle power: 15 kW
Max. rapid stroke on X, Y, Z: 25,4 mm/min
Max. working stroke: 12,7 mm/min

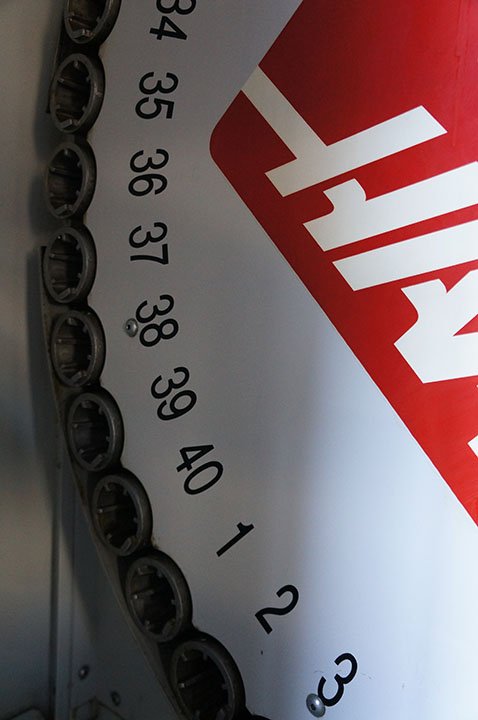

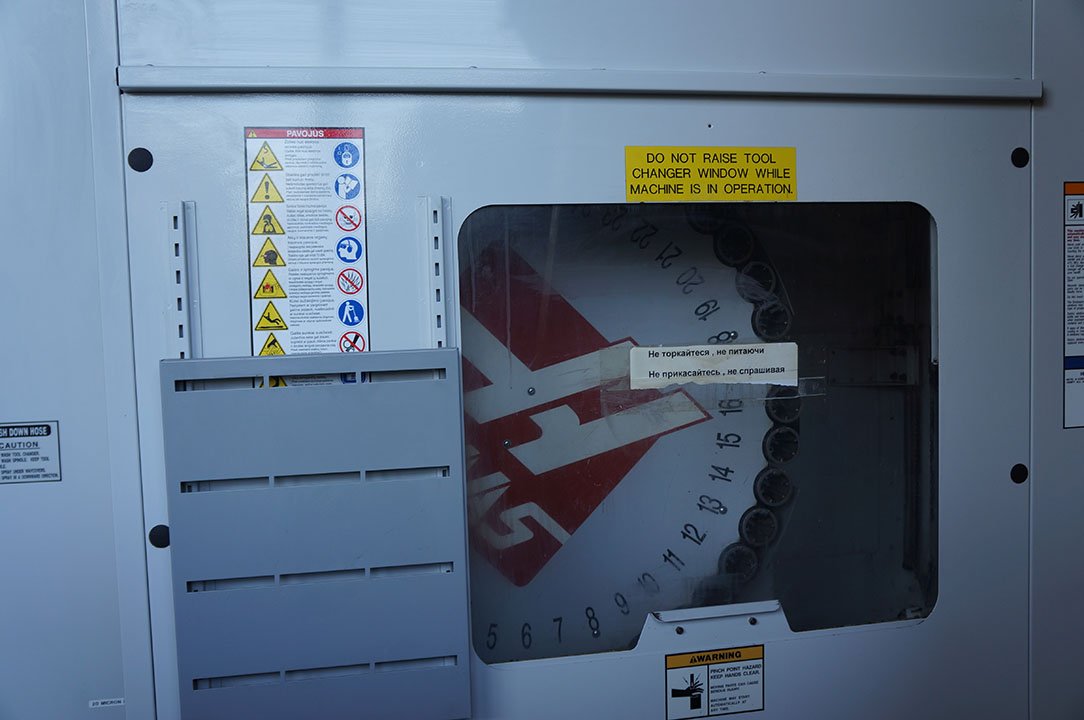

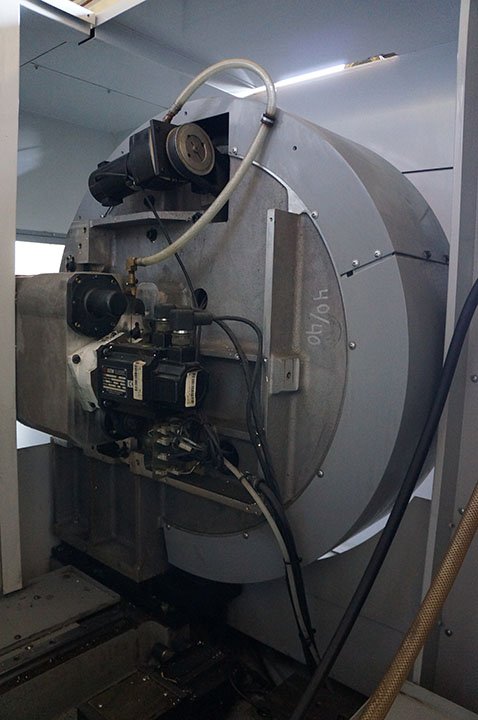

Number of tools: 40+1
Max. tool diameter: 76 mm
Max. tool weight: 5,4 kg
Max. tool length: 305 mm
Tool change time: 2,8 sec
Accuracy of positioning: +/-0,0051 mm
Repeatability: +/-0,0025 mm
Air pressure: 6,9 bar
Air output: 255 l/min
Voltage: 400 V
Weight:
10886 kg
