HAAS, EC-1600H, HORIZONTAL, MACHINING CENTERS
  • Condition:Used
  • Category:MACHINING CENTERS
  • Type:HORIZONTAL
  • Manufacturer:HAAS
  • Model:EC-1600H
  • YOM:2006
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:CNC
  • ID:AS28247
Description:

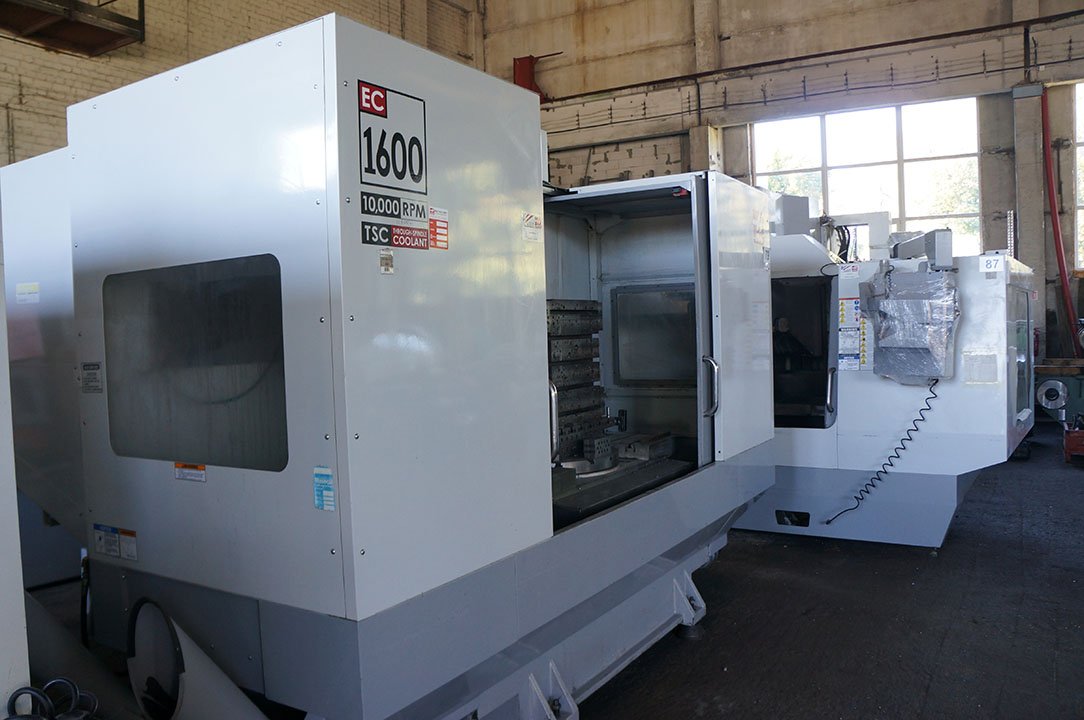

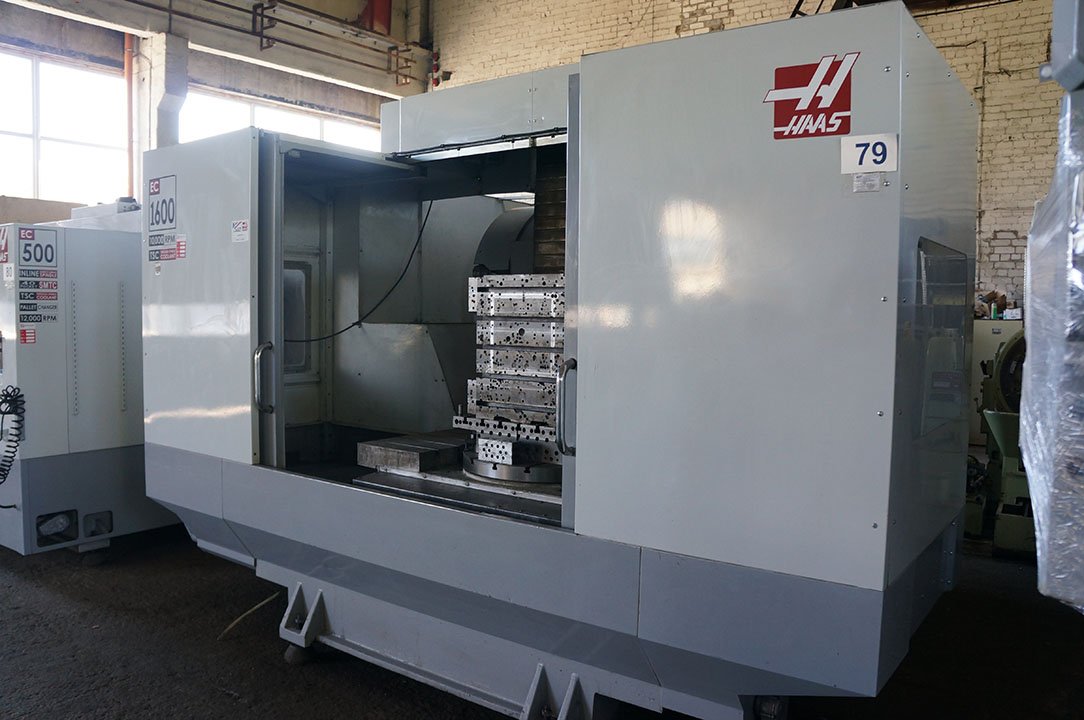

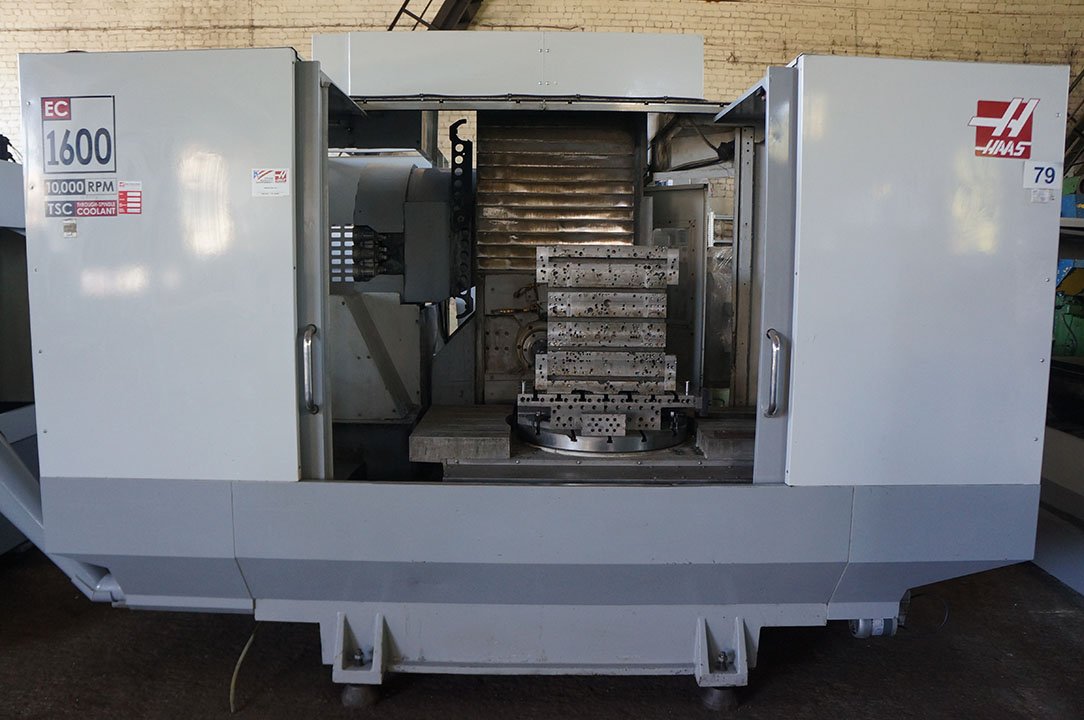

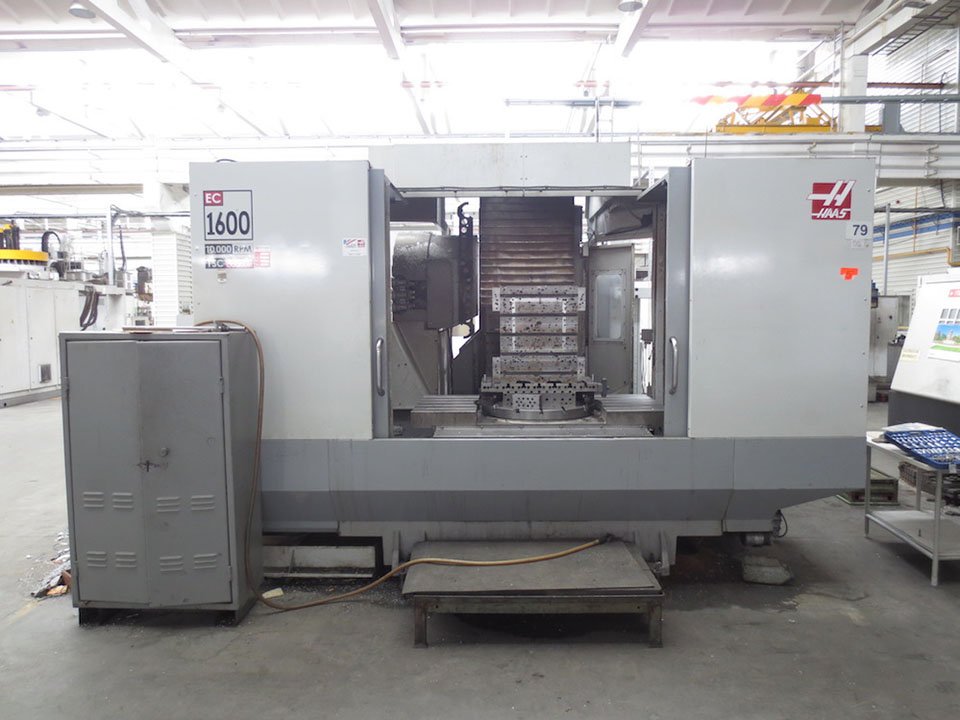

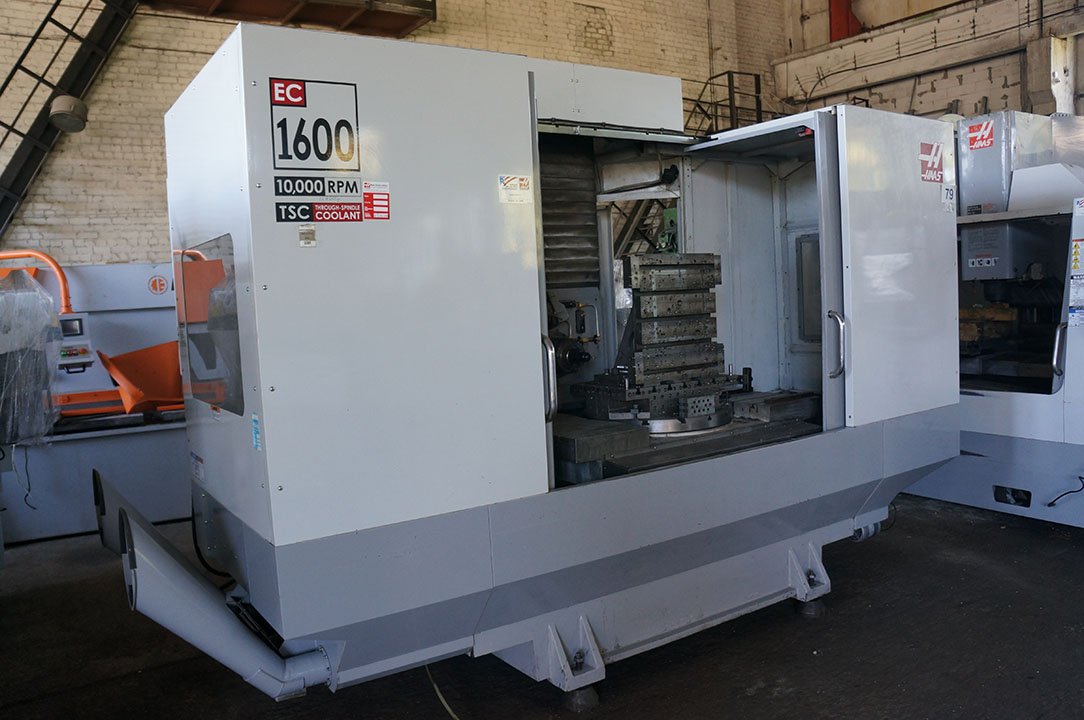

CNC Horizontal machining center HAAS EC-1600HE made in 2006 in USA.
Specifications:
Working stroke:
-X-axis: 1626 mm
-Y-axis: 1016 mm
-Z-axis: 813 mm

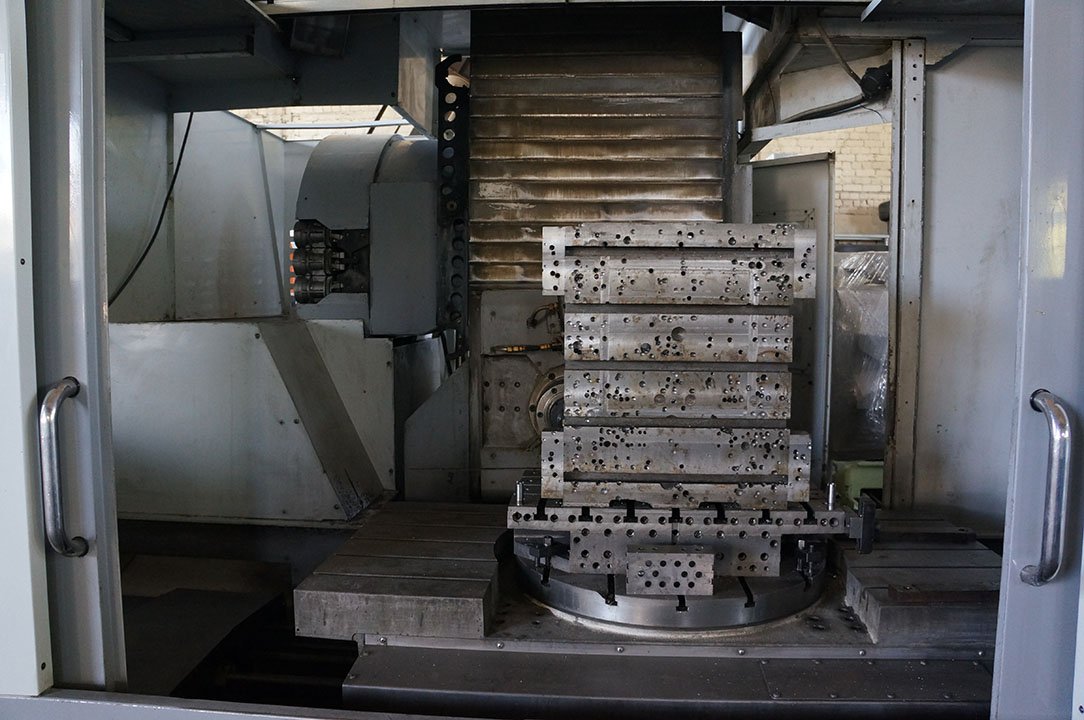

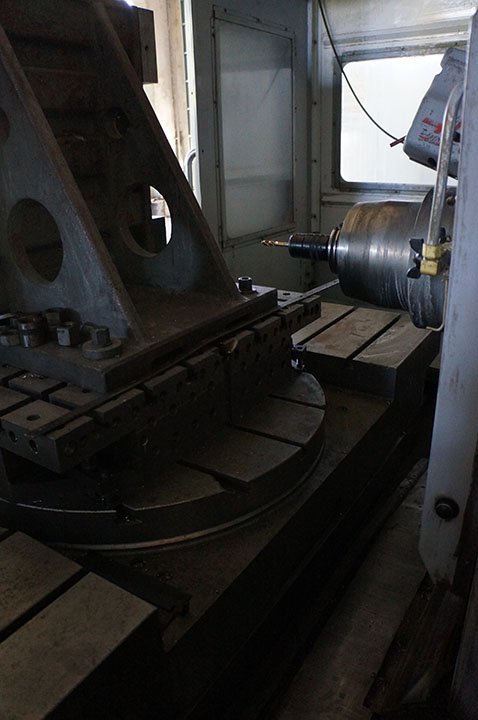

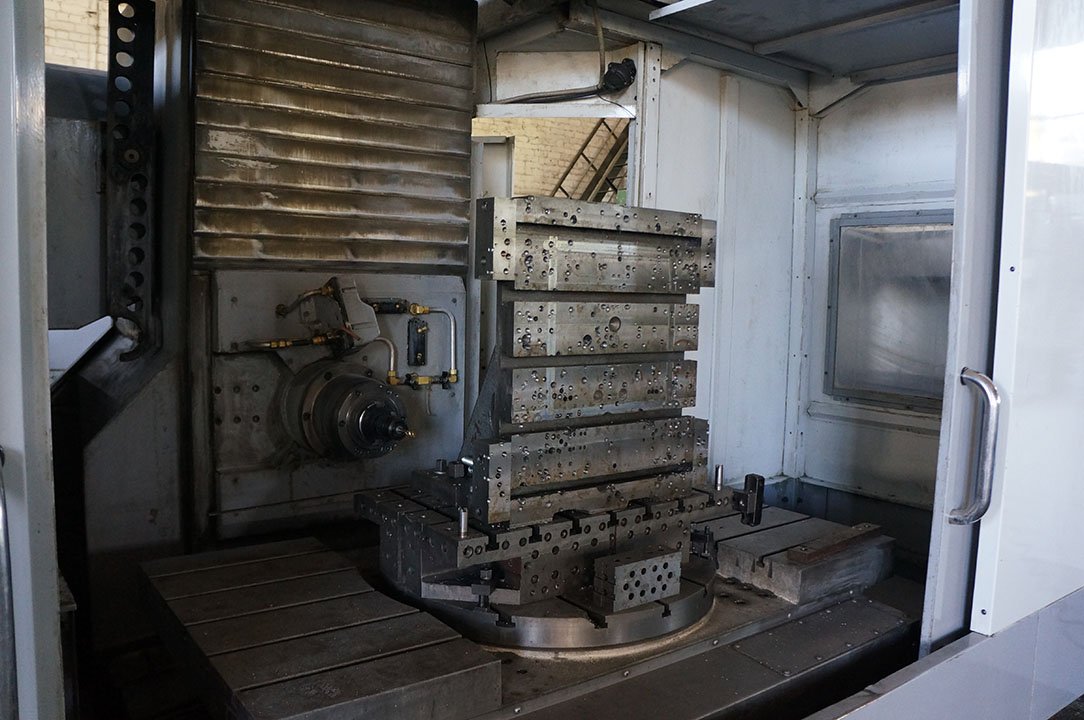

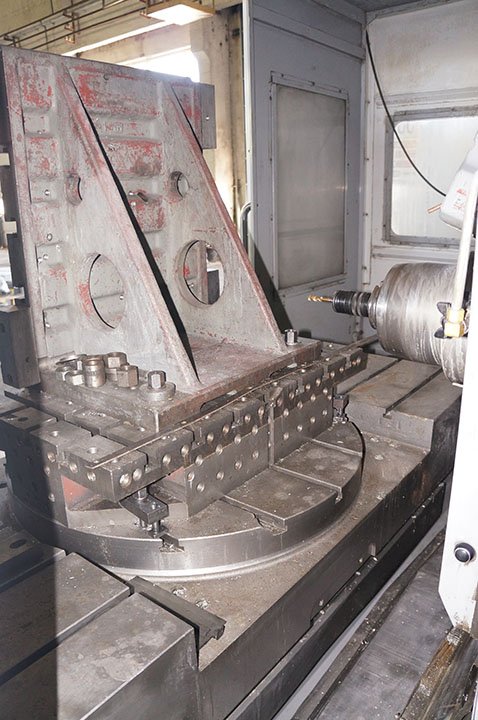

Table size: 813x1626 mm
Max. table load: 4536 kg

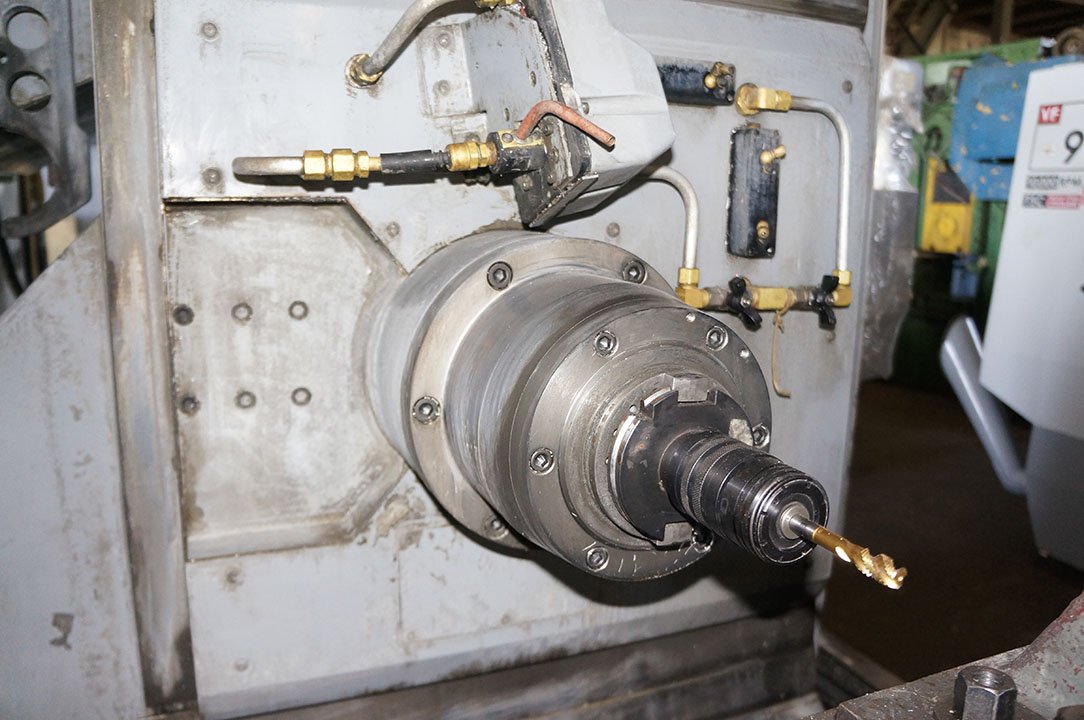

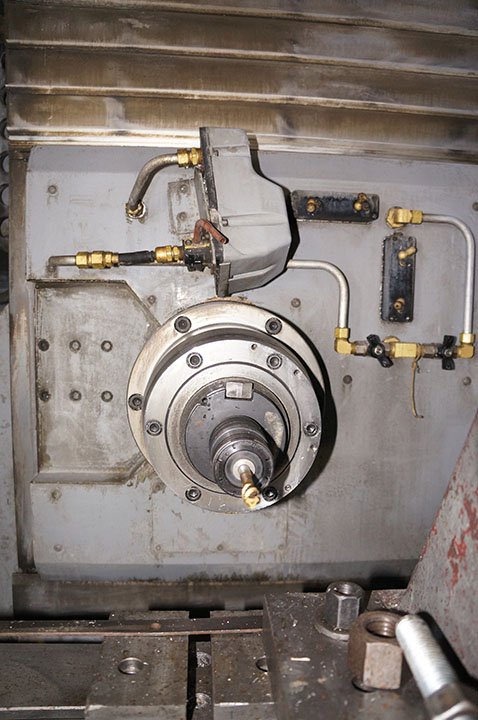

Spindle taper: ISO 50
Max. spindle rotation: 6000 rpm
Max. torque at 500 rpm: 610 Nm
Max. spindle power: 22,4 kW
Max. rapid stroke on X, Y, Z: 13,7 mm/min
Max. working stroke: 12,7 mm/min

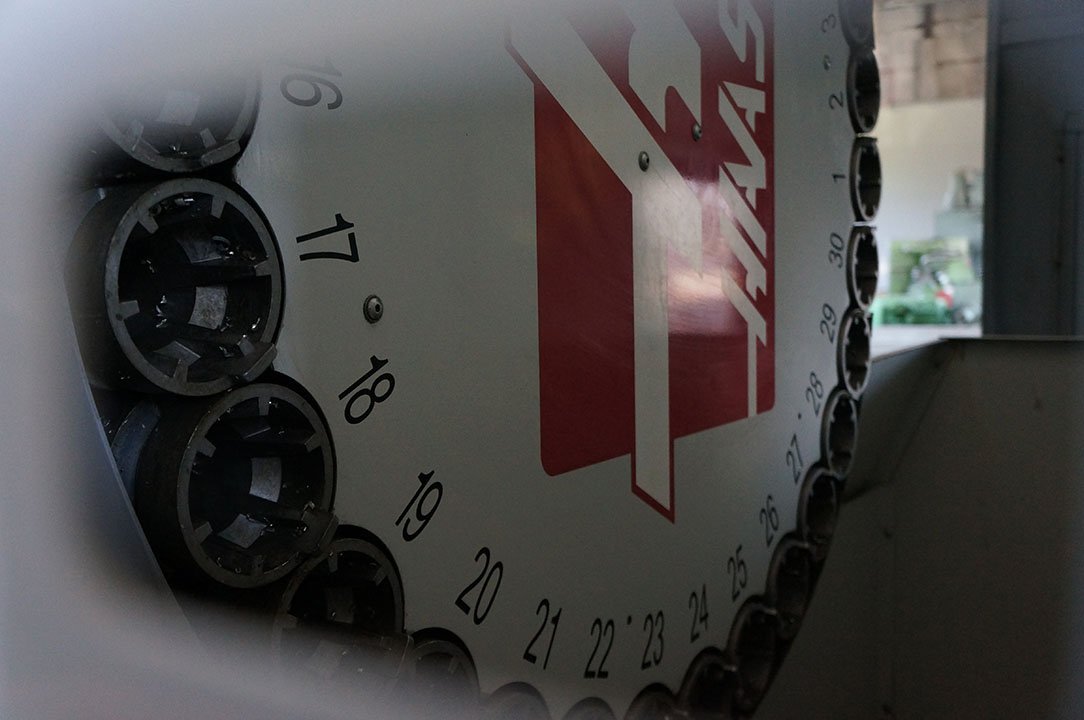

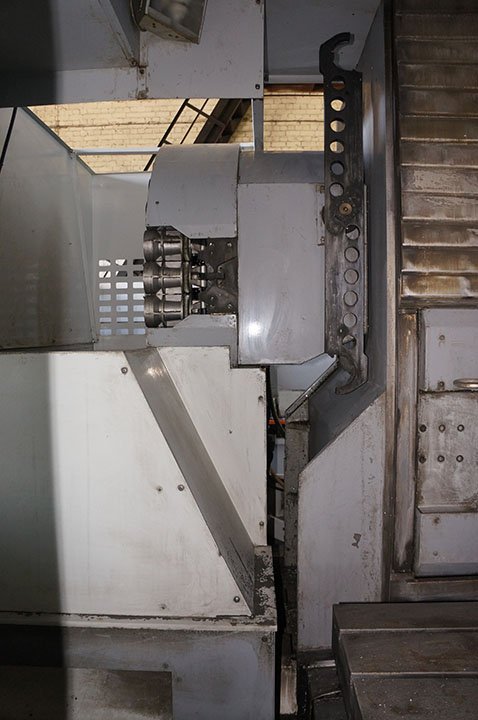

Number of tools: 30+1
Max. tool diameter: 102 mm
Max. tool weight: 13,6 kg
Tool change time: 2,8 sec
Accuracy of positioning: +/-0,0076 mm
Repeatability: +/-0,0051 mm
Air pressure: 6,9 bar
Air output: 113 l/min
Voltage: 400 V
Weight:
18144 kg
