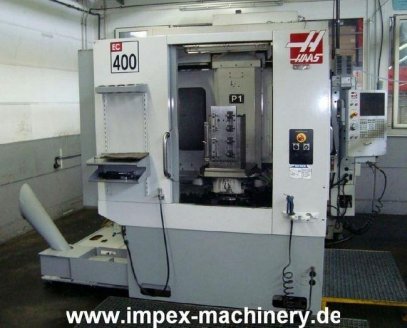

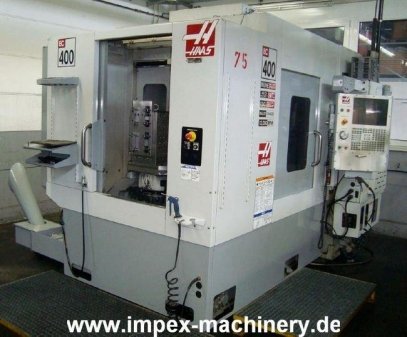

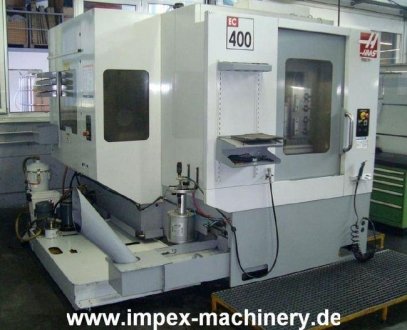

Ladies and gentlemen! Below we offer subject to change: Make: Naming Haas H. machining center type: EC 400 U Year: 12/2006 Technical Specifications: Thickness (max) 2565 mm Width (max) 3429 mm Depth 3378 mm weight kg 9072 Travel: X axis 508 mm Y-axis 508 mm Z-axis 508 mm B-axis as the fourth full Axis 0.001 mm distance spindle nose machine table 99 607 distance table top machine spindle center 53 561 mm pallet changer: Pallet size 400 x 400 mm pallet load quantity two full fourth Axis kg 300 mm max workpiece size. X 500 max. Height 500 Main spindle: taper ISO 40 spindle speed min-1 12.000 spindle motor (max) kW 22.3 Factory Show Changer: Magazine capacity 40 +1 tools tool holder (cone and type), SK 40 DIN 69871 Tool diameter (max.) mm 76 with no free adjacent pockets tool diameter (max) mm 152 with free adjacent pockets Tool Length (max) mm 300 Tool change time (tool to tool) 1.6 sec. Tool change time (chip to chip) 2.8 sec. Please let us know if you are still interested in acquiring such a machine. If you are looking for other objects, or even intend to sales, we also ask for your information only. If you are interested to hear from you. Sincerely, Signed Andree
