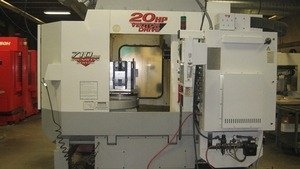

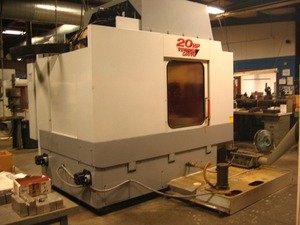

16" x 16" pallet Haas Model HS1RP 3 Axis Horizontal Machining Center (1998)

16" x 16" pallet Haas Model HS1RP 3 Axis Horizontal Machining Center (1998)





Pallet size (2-pallets): 16" x 16"
X-Axis Travel: 24"
Y-Axis Travel: 20"
Z-Axis Travel: 22"
Rapid Feeds: 710 IPM
Rotary Indexing Table: 1 degree
Taper in spindle: 40
Spindle speeds: 7500 RPM
Main Drive Motor: 20 HP

Equipped With:

Haas CNC Control, Chip Conveyor, 1 Degree Index, 80 Gallon Coolant Tank, (8) 6" Kurt vises, 710 IPM Brushless Servos

132"x134"x108"

16000 (LBS)
