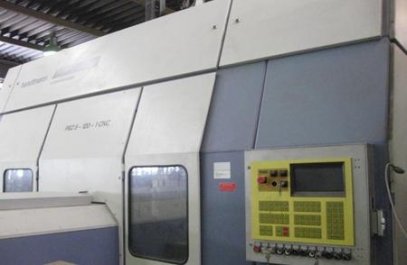

Technical Data: Editing, sawing, drilling, milling of profiles up to a length of 6500mm Working area X-axis: 7500mm workspace Y-axis: 1300mm Working dimension Z-axis: 800mm work area C-axis: + / - 200 Department A-axis: + / - 120 Tool taper: SK30 Max saw blade diameter: 400mm Max spindle speed: 30,000 rpm / min tool magazine for 10 tools feeding speed: Max 30m/min feed speed X-axis: Max 60m/min Power input: 400V 25KW Air consumption: 1000 l / h Weight: about 19 tons of Control: BWO 785 CNC space WxHxD: 17.5 x 3.05 / 3.65 x 3.8 m
