HORIZONTAL CENTER MORI SEIKI SH5, Mori Seiki NMH-5000/40, HORIZONTAL, MACHINING CENTERS
  • Condition:Used
  • Category:MACHINING CENTERS
  • Type:HORIZONTAL
  • Manufacturer:HORIZONTAL CENTER MORI SEIKI SH5
  • Model:Mori Seiki NMH-5000/40
  • YOM:2011
  • Location:Germany, Celle
  • Price:On request
  • Stock No:-
  • Control:CNC
  • ID:AS28166
Description:
You will not find an NMH5000/40 in better condition on the market ! As close to new as possible.

Axis X 28.7 in
Axis Y 33.5 in
Axis Z 43.3 in
Type Horizontal
Type
CNC MXS-711-MAPPS IV
Type of axis Universal head
Table length 19.7 in
Table width 19.7 in
Max. part weight 1542.8 lb
Number of tool pockets 120.0
Spindle taper HSK-63A
Max. spindle speed 12000 rpm
Spindle motor power 29.5 HP
Number of pallets 2.0
-------------------
Length x width x height 240.2 in × 233.9 in × 128.0 in
Weight 46284.0 lb
Worked hours 2000 hours
Hours under power
State like new
At local norms yes
Status under power
Specifications:
5-Axis Horizontal Machining Centre
Manufacturer Mori Seiki
Model NMH5000/40
Year 2011
Control MXS-711-MAPPS IV

Number of pallets: 2
Pallet size: Ø 500 mm
Pallet load: max. 700 kg

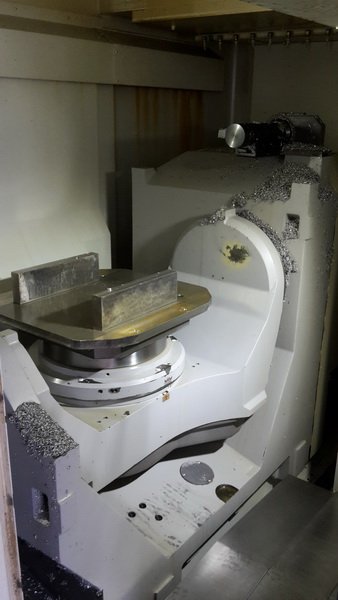

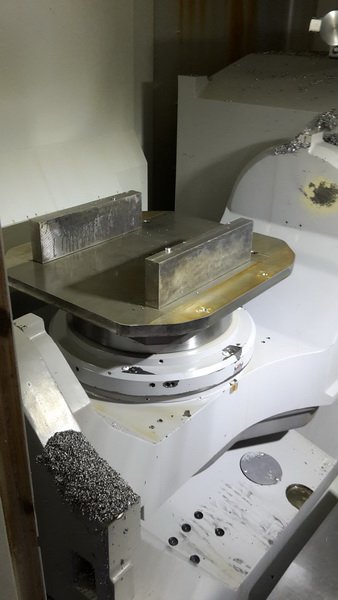

2-Axis NC Rotary Tilting TablePallet change time:
Rotary axis: B 360°/0.001°
Tilting axis: A +30°/-120° / 0.001°
Traverses: X 730 mm
Y 850 mm
Z 1100 mm
Workpiece diameter: max. 800 mm
Clamping height: max. 750 mm
Feeds: X/Y/Z 1 - 50000 mm/min.
Rapids: X/Y/Z 50000 mm/min.

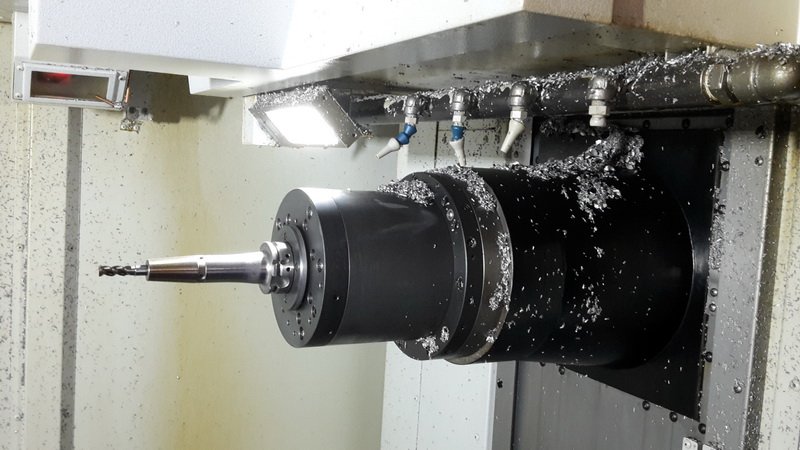

Spindle taper: HSK-63A
Spindle drive motor: 18.5 / 22 KW
Spindle speeds: to 12000 rpm
Tool magazine positions: 120
Tool diameter with/without adjacent tools: max. 70 / 140 mm
Tool length: max. 480 mm
Tool weight: max. 12 kg
Tool-to-tool time: sec.
Chip-to-chip time: sec.
Machine weight: approx. 21000 kg
Machine dimensions: L x W 6100 x 5940 mm
Machine height: H 3250 mm


Equipped with:
Twin pallet system;

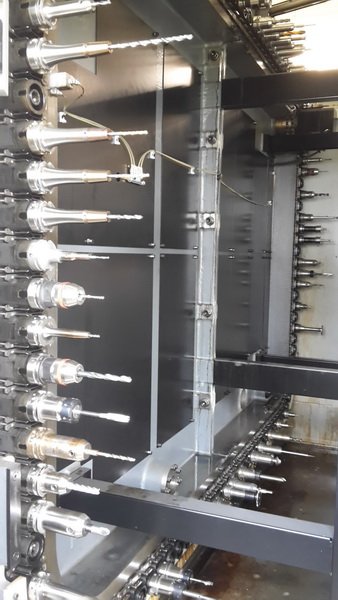

Tool magazine 120 station for HSK-63A tools;
Work area coolant shower;
Full chip and splash guards;
Automatic door locking;

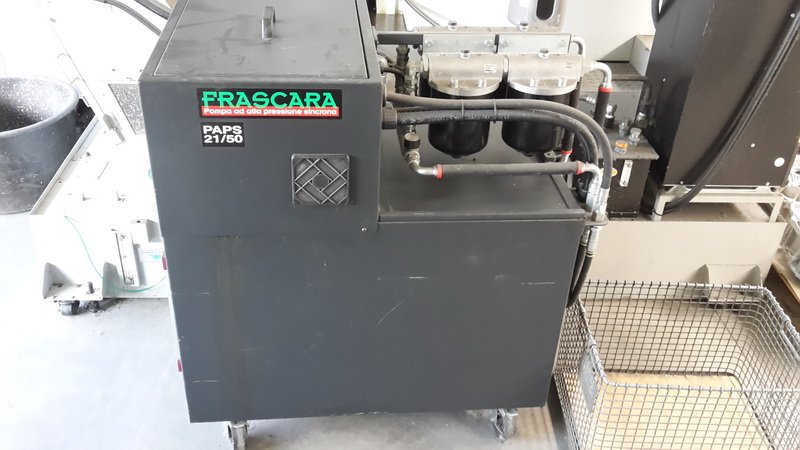

High pressure coolant through the spindle 70 bar;

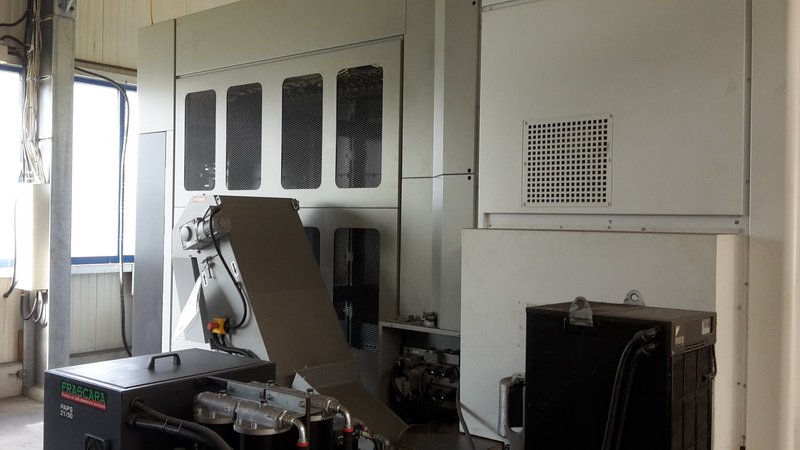

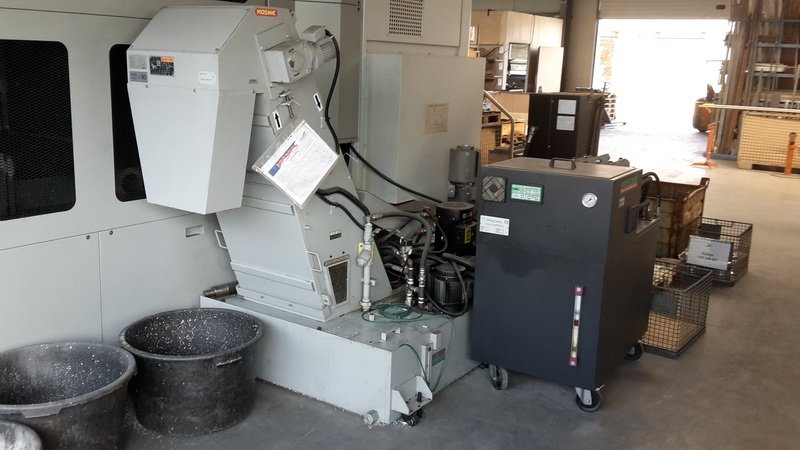

Chip conveyor;
Tool breakage control in the tool magazine;

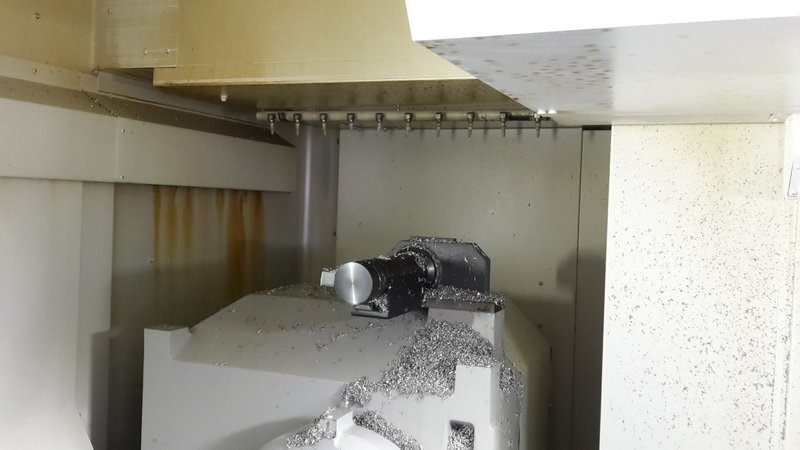

Renishaw spindle probe;
Tool length measurement "Metrol" and tool breakge control;
Electronic hand wheel MPG;
Signal lamp;
Numerous software options;

Condition: Superb condition, sparingly used.


Dimensions:
L x W 6100 x 5940 mm H 3250 mm
Weight:
21000kg
Dealer name:
Ridel Stank Russian Federation, Perm
