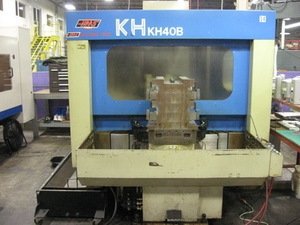

50 Tool Magazine, Chip Auger, Heavy Duty Box Way Construction
Specifications:
Pallet Size 15.7" (2)
Travel: X-Axis 21.65"
Y-Axis 19"
Z-Axis 19"
Pallet Index 1 Degree
Spindle Speed 30 - 6000 RPM
Spindle Taper BT40
Spindle Motor 10 HP
Spindle Center to Table Top 1.4" - 20.2"
Spindle Nose to Table Center 6.7" - 25.6"
Tools 50
Rapid Traverse Rates (X, Y & Z) 630 IPM
Tool Change Time (T - T / C - C) 6 / 9 Seconds
Pallet Change Time 18.5 Seconds
Pallet Load Capacity 880 lbs.
Max Tool Diameter 6.3"
Max Tool Length 12"
Max Tool Weight 22 lbs.
Machine Dimensions (L x W x H) 146" x 100" x 106"
Machine Weight 14,300 lbs.
FEATURES:
FANUC 15M CNC CONTROL
9" Monochrome CRT
50 Tool Magazine
Chip Auger
Heavy Duty Box Way Construction
