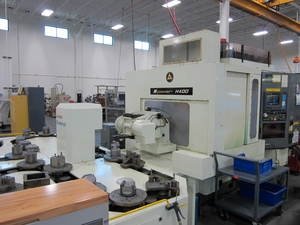

Five Axis Kitamura Mycenter H400 Supercell, 20 HP, 60 - 6,000 RPM, Cat 40, 100 Tool ATC, Pallet Pool with 40 Pallets, Excellent Condition
Specifications:
Year of manufacture - 1992
X, Y, Z travels - 24.02” x 18.11” x 20.08”
Pallet Index - Full 5 Axis
A Axis travel - 360 Degrees
B Axis travel - 120 Degrees
Horsepower - 20 HP
Spindle Taper - Cat #40
RPM Range - 60 – 6,000
Tool Changer Capacity - 100 Tools
Pallet Pool - 40 Stations
Maximum Tool Diameter, Length, Weight - 3”, 9.8”, 16 lbs
Tool Length Pre-Setter - Yes
Tool Probe - Yes
Lift-up Chip Conveyor - Yes
CNC Control - Fanuc 15M
Optional Equipment Included:
All available manuals will be provided.
Some spare parts.
Spindle is new from Kitamura.
Machine is in excellent condition.
Everything works.
Machine never ran production.
Machine ran aluminum.
F.O.B. point is loaded onto customer’s truck in Cornelia, GA.
Terms: Net due before machine is picked up.
Warranty: None, as is where is.
Guaranty: Startup guaranty with a 30 day return privilege.
For more information please call Jimmy Payne at 404-886-2687.
jp@cncsouth.net
