MACHINE HAS ONLY 997 CUTTING HOURS AND COMES W/ (2) EXTRA PALLETS

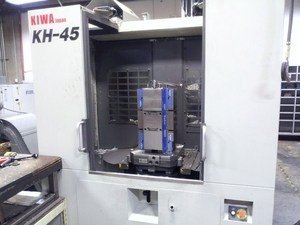

2008 KIWA -45 HMC
Specifications:
X-Axis Travel .... ... .... ... .... .. .. .. ..... .... .... . ...... .. ... 640 mm (25.2")
Y-Axis Travel ....... ... ... ... ... ...... ............ ... .... ... .. ... 610 mm (24.0")
Z-Axis Travel ...... ............. ....... ...... .... ..... .... .......... 680 mm (26.8")
Pallet Working Surface .. .... . ... .. ... ... .... .... ............ 400 x 400 mm (15.7" x 15.7")
Pallet (Table) Loading Capacity .... ..... .... ................ . 500 kg (1102 Ibs.)
Min. Table Indexing Angle .................... ............. ....... .001 deg
Table Indexing Time..... ..... .. ....... ... ............. ... ........ 1.1 sec I 90 deg
Spindle Motor .... ...... ..... .. ..... .... ......... . ... .... ... . . . 22.0 kW/30 HP
Spindle Speed Range ................. .... ..... .... ......... .... 150-12,000 RPM
Type of Spindle Taper Hole......... ......... .... ... ... ... .... 40 Taper
Spindle Air Blow .. .......... ........ ..................... ......... ... Standard
Spindle Orientation .. ....... .... ....... .................. .... .. .. Standard (Electrical)
Rapid Traverse Rate (X/Y/Z) .... ... .. .. ...... ................ 60,000 mm/min (2 ,362.2 ipm)
Feedrate (x/y/Z) ..... ..... ......... ... .... .... ...... ........... ... 1-30,000 mm/min (1181 ipm)
ATC .. .... .......... .. .... .. ........................................... ..60 Tools & 1 tool in spindle
Machine Height (PC-2)...... ..... ...... .. .. ............... .. . (101 .0")
Floor Space (PC-2) .......................... .... .. ......... ...... 100.0" x 178.7"
Weight of Machine + NC (PC-2S)....... .................... . (20,260 Ibs)

Equipped with:
Tool Life Management
1280 Meter Memory
Helical Interpolation
Tool Offsets 200 pc.
30 Block Lookhead
Macro Programming
Registered Program 1000
800 PSI Through Spindle Coolant
MARRPOS toll gauging
LNS conveyor with air knife
Royal Mist collector
Cat 40 big plus

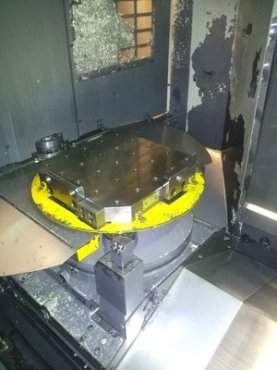

Full 4th axis

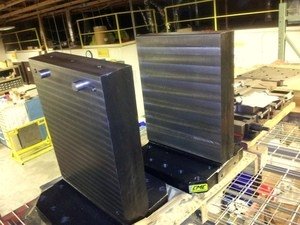

(2) Extra Pallets

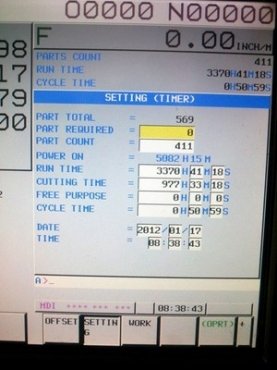

Cutting hrs.

101" X 100" X 179"

20,260
