Machine Is In Excellent Condition & Under Power Ready For Inspection

Specifications:

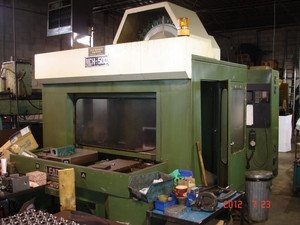

Model............................................. MCH-500
Pallet Size (2)................................... 20” x 20”
X Axis Travel..................................... 25”
Y Axis Travel..................................... 20”
Z Axis Travel..................................... 20”
Spindle Taper..................................... CAT 40
Spindle Speeds.................................... 60 – 6000 RPM
Cutting Feeds..................................... 0.01 – 200 IPM
ATC............................................... 30
Control........................................... Fanuc 10M
Year.............................................. 1987
Approximate Weight................................ 20,000 LBS
Overall Dimension................................. 84”L/R x 150”F/B x 132”H

Equipped With:

Fanuc 10M CNC Control, Pallet Changer, Coolant Pump & Tank,
Rebuilt Spindle, All New Bearings, Chip Conveyor, Full Enclosure,

84”L/R x 150”F/B x 132”H

20,000 LBS
