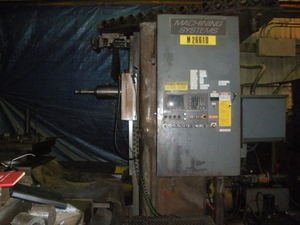

Description:
Machining Systems HMC-100
Model #: HMC-40
Serial #: Job #: 215
Asset #: MAC-030811-700111
Specifications:
Axis Travel Ranges:
Longitudinal Travel (saddle, X axis) 72”
Vertical Travel (spindle, Y axis) 40”
Cross Travel (table, Z axis) 40”
Rotary Index Table:
Work Surface Dimensions 39” x 39”
Index Positions 360
Maximum Workload 10,000 pounds
Index Rate 2 RPM
Spindle Carrier:
Drive Motor 25 HP – DC
Spindle Speed Range (1 RPM Increments) 0 – 533 low range
0 – 2400 high range
Spindle Taper No. 50 Taper – CV type
Linear Feed Rates (X, Y, and Z)
Feed Rates 0.1 to 100 ipm
Rapid Travers Rate 200 ipm(X), 250 ipm (Y,Z)
Z-axis Thrust 4,000 pounds
Accuracy
Slide Positioning Per Axis X, Y, Z .0005/ft
B Axis (Index Table) 10 arc seconds
Repeatability per Axis/Lost Motion .0002
Automatic Tool Storage & Changer
Storage Capacity 48 tools
Maximum Tool Weight 60 pounds
Maximum Tool Length 24 inches
Maximum Tool Diameter:
Full Chain 5.5 inches
Adjacent Pockets Empty 10 inches
Machine Weight Approximate:
Machine 54,000 pounds
With 4 Pallet System 68,500 pounds
Automatic Pallet Changer (A.P.C.)
Four Pallets 39 in. x 39 in.
Control:
1993 Autocon Technologies Delta 20 MU
Features:
Concurrency
Basic Calc Assist
Graphics
Expanded Part Program Storage
Customer Prepared Cycles
DNC Terminal Mode
Advanced Calc Assist
Tool Life Management
Buffered Input
Specifications:
Machining Systems HMC-100
Model #: HMC-40
Serial #: Job #: 215
Asset #: MAC-030811-700111
Specifications:
Axis Travel Ranges:
Longitudinal Travel (saddle, X axis) 72”
Vertical Travel (spindle, Y axis) 40”
Cross Travel (table, Z axis) 40”
Rotary Index Table:
Work Surface Dimensions 39” x 39”
Index Positions 360
Maximum Workload 10,000 pounds
Index Rate 2 RPM
Spindle Carrier:
Drive Motor 25 HP – DC
Spindle Speed Range (1 RPM Increments) 0 – 533 low range
0 – 2400 high range
Spindle Taper No. 50 Taper – CV type
Linear Feed Rates (X, Y, and Z)
Feed Rates 0.1 to 100 ipm
Rapid Travers Rate 200 ipm(X), 250 ipm (Y,Z)
Z-axis Thrust 4,000 pounds
Accuracy
Slide Positioning Per Axis X, Y, Z .0005/ft
B Axis (Index Table) 10 arc seconds
Repeatability per Axis/Lost Motion .0002
Automatic Tool Storage & Changer
Storage Capacity 48 tools
Maximum Tool Weight 60 pounds
Maximum Tool Length 24 inches
Maximum Tool Diameter:
Full Chain 5.5 inches
Adjacent Pockets Empty 10 inches
Machine Weight Approximate:
Machine 54,000 pounds
With 4 Pallet System 68,500 pounds
Automatic Pallet Changer (A.P.C.)
Four Pallets 39 in. x 39 in.
Control:
1993 Autocon Technologies Delta 20 MU
Features:
Concurrency
Basic Calc Assist
Graphics
Expanded Part Program Storage
Customer Prepared Cycles
DNC Terminal Mode
Advanced Calc Assist
Tool Life Management
Buffered Input
Weight:
68000
