Great tooling package included. Machine ran only aluminum parts. 6-place fixture table.
Specifications:
ONE USED MATSUURA HMC
Model: MAM-600-HF-PC2
Pallet size: 15.75” x 15.75” (2)
Max. pallet load: 880 lbs.
Travels:
X: 23.60”
Y: 18.60”
Z: 21.60”
Spindle speeds: 8000 rpm
Spindle taper: BT40
Spindle HP: 15/10
Table indexing positions: 360
ATC: 240 place with one rack missing, allowing storage for 210 ATC
Max. fixture height: 26 ½”
Wired: 220v/3ph/60cy
Approximate dimensions: 182” L-R x 106” F-B x 111” H x 32,000 lbs
EQUIPPED WITH:
Nice tooling package (roughly 150 tool holders)
Spindle Chiller
Air Dryer
High Pressure flush
Chip conveyor with separator
Ceramic bearings in spindle

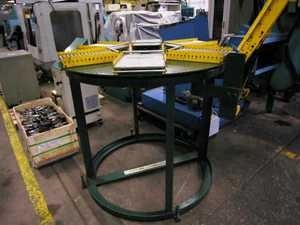

Six place fixture table with loading ramp
Yasnac i80 controls
Two pallets

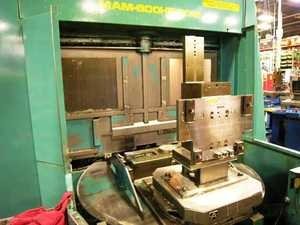

Two quick change monuments with four holes with bushings to mount fixtures on using Bull Lock Bolts (very quick and simple)
Manuals
Note: You will notice in the photos that there are yellow stickers with numbers on this machine. These are for their daily maintenance check list which consisted of 22 check points. This list and photos of numbers goes with this machine. Great idea!
