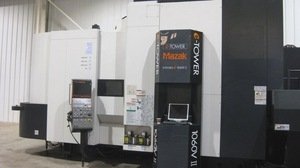

Description:
Auto Two Pallet Changer, E-Tower, EIA/ISO Input Function, Additional EIA/ISO Functions, 8MB Max Program Size, Cardbus Interface, LAN Port, USB I/F, Milling Spindle Synchronous Tapping, Simultaneous 5-Axis Contouring, Tool Tip Point Control, Tool Radius Compensation, Cylindrical & Polar Coordinate, Auto Tool Length Measurement for B-Axis, 3-D Coordinate Conversion, G00 Slope Constant, MAZACC 2-D Software Shape Compensation, Shape Compensation for Rotary Axes, Inch/Metric Conversion, Coolant Thru Spindle (113 psi), Lathe Spindle (Table) Motor 50HP, C-Axis Degree Index, C-Axis Milling Capability, Millling Spindle Motor 50HP, B-Axis Index .0001 Degree, Extended 41.7" Y-Axis Travel, 120 Tool Magazine, 10000 RPM Milling Spindle, Remote Manual Pulse Generator, Double Internal Conveyors, Operator Door Interlock, Hydraulic Pressure Interlock, Windows XP Operating System, Concept Chip Conveyor, Probe Prep for Optical OMP60, Mazak Super Flow V8M Variable, Renishaw EIA Probing Software, Safety Cover for Two Pallet Changer
Specifications:
Pallet Size 39"
Travel: X-Axis 73.82"
Y-Axis 41.73"
Z-Axis 52.95"
B-Axis Tilt 150 Degrees
C-Axis Rotation 360 Degrees
C-Axis Index .0001 Degrees
Max Swing with 2 Pallet Changer 49.2"
Max Workpiece Height 49.21"
Max Workpiece Diameter 49.21"
Spindle Speed 35 - 10,000 RPM
Spindle Motor 50 / 40 HP
Spindle Torque 2200 ft. lbs.
Spindle Taper Big Plus Cat 50
Tools 120
Table Load Capacity 4850 lbs.
Tool Change Time (T - T) 1.8 Seconds
Milling Motor 50 HP
Milling Speed 10,000 RPM
Rapid Traverse Rates (X Y Z) 1575 IPM
Max Tool Diameter 5.31" / 10.24"
Max Tool Length 19.69"
Max Tool Weight 66 lbs.
Machine Dimensions (L x W x H) 209.4" x 324.5" x 173.2"
Machine Weight 83,775 lbs.
FEATURES:
MATRIX CNC CONTROL
15" Color LCD
EIA/ISO Input Function
Additional EIA/ISO Functions
Conversational Programming
8MB Max Program Size
Cardbus (2 slot) Interface
LAN Port
USB I/F
Tool Tip Point Control (Simultaneous 5-Axis)
Tool Radius Compensation (5-Axis)
Cylindrical (G07) & Polar Coordinate (G12)
3-D Coordinate Conversion
G00 Slope Constant
MAZACC 2-D Software Shape Compensation
Shape Compensation for Rotary Axes
Inch / Metric Conversion
Windows XP Operating System
Auto Two Pallet Changer
E-Tower
120 Tool Magazine
Coolant Thru Spindle (113 psi)
Mazak Super Flow V8M Variable
Extended 41.73" Y-Axis Travel
10,000 RPM Milling Spindle
Lathe Spindle (Table) Motor 50HP
C-Axis Degree Index (Table) .0001
C-Axis Milling Capability
B-Axis Index .0001 Degree
Simultaneous 5-Axis Contouring
Milling Spindle Synchronous Tapping
Auto Tool Length Measurement for B-Axis (G43.1)
Milling Spindle Motor 50HP
Absolute Positioning System (Linear Axes)
Remote Manual Pulse Generator
Double Internal Conveyors (Wear Resistant)
Concept Chip Conveyor (Side Exit)
Renishaw EIA Probing Software
Probe Prep for Optical OMP60
Prep for Flash Tool System
Safety Cover for Two Pallet Changer
Operator Door Interlock
Hydraulic Pressure Interlock
Installed in April 2011
Dimensions:
209 x 325 x 173
Weight:
83775
