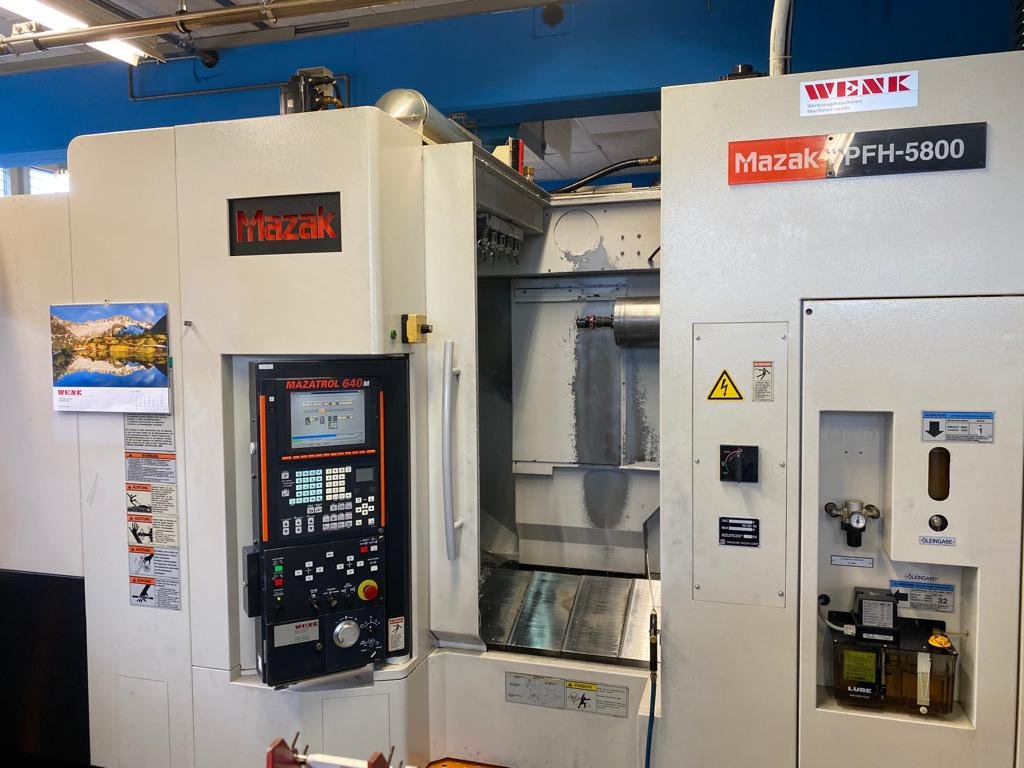

Horizontal machining centre MAZAK - PFH 5800 HMC with 20 x Palletech and 325 ATC Tool-Hive 6532 = Mach4metal

X – Travel730 mm
Y – Travel730 mm
Z – Travel740 mm
B-Axis indexing360000
Table Length500 mm
Table Width500 mm
Table load500 Kg
Number of palletsPalletech 20 Stations
Feed rate X-Axis60.000 mm/min.
Feed rate Y-Axis60.000 mm/min.
Feed rate Z-Axis60.000 mm/min.
Indexing speed B-Axis90/1,3 sec
Spindle Taper40
Power on spindle22
Speeds / ranges12000

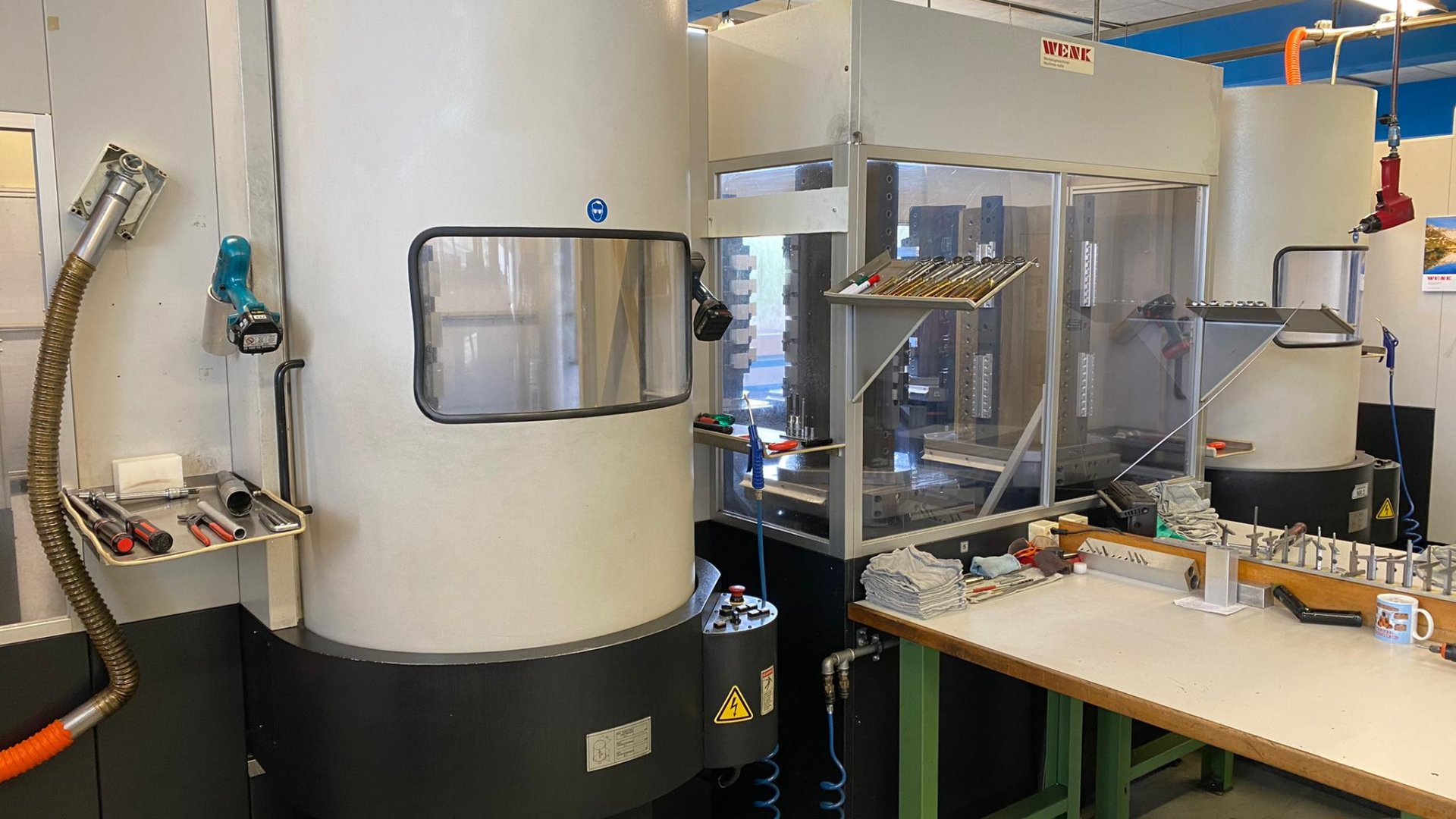

ATC / revolver325 Tool-Hive
Coolant true spindle / BarYes, 70 Bar
Number of controlled axis4
Chip conveyorYes
CoolantsystemYes
20 x Pallet stations

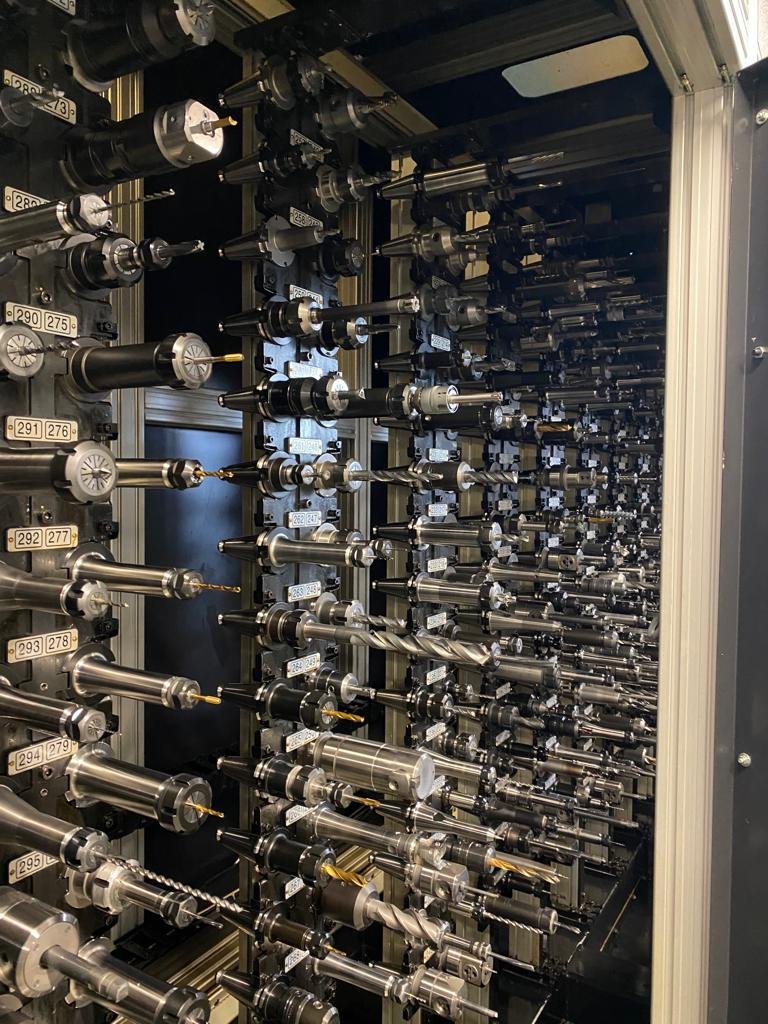

ATC with 325 positions
Tooling package ca 150 pieces
Granit clamping towers 18 x

-
