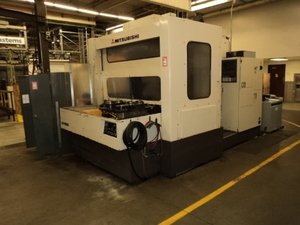

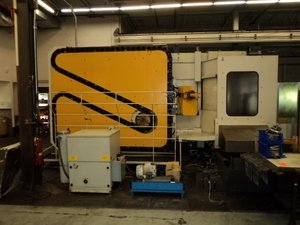

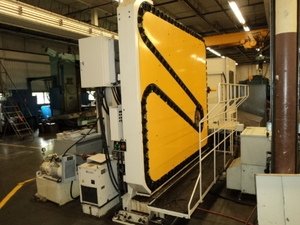

1995 Mitsubishi MH60D CNC Horizontal Machining Center
SPECIFICATIONS:

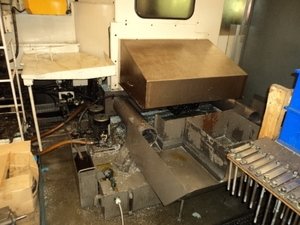

Pallet Size: 24.75" x 24.75"
Number of Pallets: 2
Axis Travel: X-Axis: 39.4"; Y-Axis: 31.5"; Z-Axis: 32.5"; B-Axis: 360,000 Positions
Spindle Nose to Table Center: 5.9" - 37.4"
Spindle Drive Motor: 25/20 HP AC

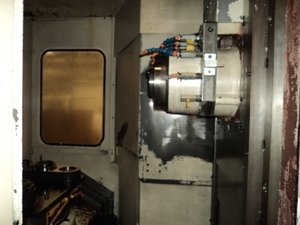

Spindle Taper: CAT #50
Spindle Speeds: 4,000 RPM
Rapid Traverse Rate: 797 IPM X,Y,Z
Cutting Feed Rate: .04 - 397 IPM
Auto Tool Change Capacity: 120 ATC
Max Tool Weight: 33 lbs.
Machine Weight: 32,500 lbs.
EQUIPPED WITH:

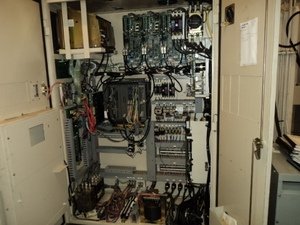

Mitsubishi 323M CNC Control
Full 4th Axis
Scales
120 ATC
Helical Interpolation

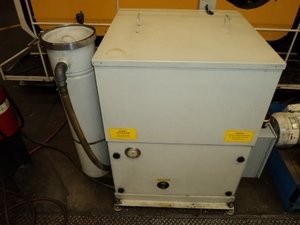

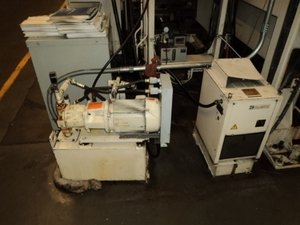

Spindle Chiller
High Pressure Through Spindle Coolant
Rigid Tapping
All Available Manuals
