MITSUBISHI MH80D CNC HORIZONTAL MACHINING CENTER

MANUFACTURED IN 1996

PALLETS (2)................................................................. 31.5" X 31.5"
TRAVELS (X)................................................................ 49.2"
(Y)................................................................ 39.4"
(Z)................................................................. 33.5"
SPINDLE NOSE TO TABLE......................................... 9.8" - 43"
PALLET INDEXING...................................................... .001 DEG
SPINDLE SPEED............................................................ 40 -6000 RPM
SPINDLE TAPER............................................................ CAT 50
SPINDLE DRIVE............................................................. 35 HP
RAPIDS (X,Y/Z)............................................................... 787/591 IPM
TOOL CHANGER............................................................ 60 ATC


EQUIPPED WITH:

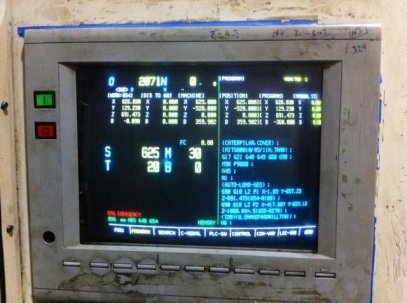

MITSUBISHI MELDAS 500 CNC CONTROLS
FULL 4TH AXIS WITH CONTOURING
HIGH PRESSURE COOLANT THRU SPINDLE
CHIP CONVEYOR
BOX WAY CONSTRUCTION
