Specifications:

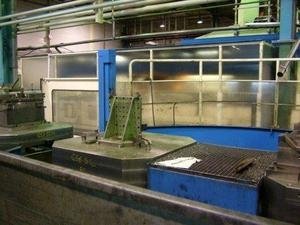

PALLET: Pallet Length 51" (1300mm)
Pallet Width 51" (1300mm)
Number of Pallets 4 Pallets
TOOLCHANGER Number of Stations 92
TRAVELS: X Axis 70.8" (1800mm)
Y Axis 59.0"(1500mm)
Z Axis 47.2"(1200mm)
W axis 11.8" (300mm)
B axis 0.001 degrees
SPINDLE: Spindle Taper BT50
Minimum Spindle Speed 8 RPM
Maximum Spindle Speed 3150 RPM
Spindle Drive 50/40 HP
Equipped With: X, Y Z. axes are Linear scale
B axis is Rotary indoctosyn
Max part size (circle): 72.8" (1850mm)
Max weight on pallets: 17,600# (8000KG)
Coolant thru Spindle
Renishaw Probing
Tooling ( Tombstones)
X, Y Z. axes are Linear scale
B axis is Rotary indoctosyn
Max part size (circle): 72.8" (1850mm)
Max weight on pallets: 17,600# (8000KG)
Coolant thru Spindle
Renishaw Probing
Tooling ( Tombstones)
Following works will be done on the machine:
X, Y, Z ball Screws will be rebuilt, plus new end block bearings.

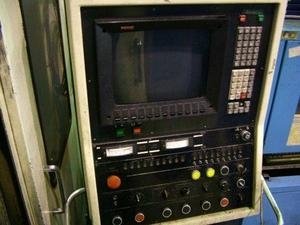

Machine Ways will precision re-scraped and turcited. Spindle reconditioned . All components will be cleaned and proper packed for export. Fanuc 11M CNC sent to Fanuc for inspection and reconditioned as required
