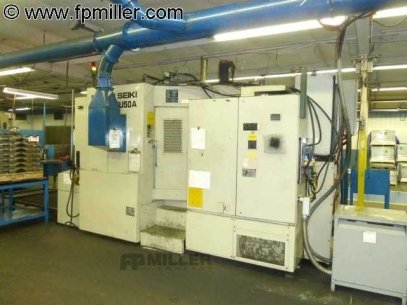

Mitsui-Seiki HU50A Horizontal Machining Center

TWIN PALLETS.........................19.7" X 19.7"

TABLE INDEX..........................1 DEG (360 POSITIONS)

MAX TABLE LOAD.......................2100 LBS

TABLE TRAVERSE - STROKE..............28.3" (X)

SPINDLE HEAD VERTICAL STOKE..........27.5" (Y)

SPINDLE HEAD LONGITUDINAL STROKE.....25.6" (Z)

SPINDLE TAPER........................50 TAPER

SPINDLE SPEEDS.......................12,000 RPM (MAX)

TOOL CHANGER.........................60

RAPID FEED...........................1418 IPM

SPINDLE DRIVE........................40/30 H.P.

MACHINE WEIGHT.......................32,000 LBS
EQUIPPED WITH:

FANUC 16M CNC CONTROLS

COOLANT THRU SPINDLE

HI-PRESSURE COOLANT

CHIP CONVEYOR
