Specifications:
Approximate Machine Age: 2005
Table Size: 19.7" X 19.7"
Table Load Capacity 1,100 LBS
B AXIS INCREMENTS 1 DEG
X-Axis Table Travel: 24"
Y-Axis Saddle Travel: 27""
Z-Axis Spindle Head Travel: 26"
Maximum Distance Spindle To Table:
Rapid Traverse Rate: 1969 IPM ON X Y Z
Cutting Feed Rates .0000004 - 600 IMP
Spindle Taper: 40 Taper
Spindle Speeds: 40-14,000 RPM
Spindle Drive Motor: 30/25 HP
Automatic Tool Changer: 60 Positions
Tool To Tool Time 1.0 SEC
Chip To Chip Time 3.40 SEC
Maximum Tool Diameter: 5.5"
Maximum Tool Length: 15.7"
Maximum Tool Weight: 17.6 LBS
Approximate Dimensions: (L X W X H) 154" X 91" X 109"
Machine Weight: 29,000 LBS
Equipped With:

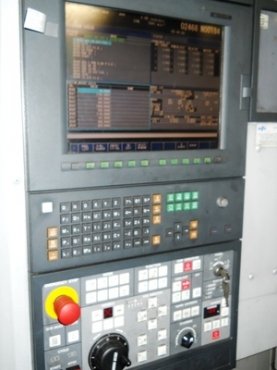

MAPPS III CNC CONTROL
B AXIS INCREMENTS 1 DEG
60 Tools
Through Tool Coolant 1000 PSI
chip conveyor
All Available manials
Power On Hours 42,573
Cutting hours 9,561
