1 degree indexing, high pressure CTS, chip conveyor, helical interpolation, Excellent condition.

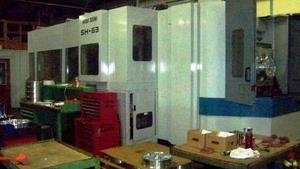

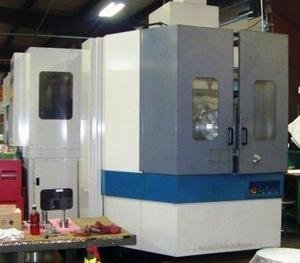

One used Mori Seiki SH-63 CNC Horizontal Machining Center

Model: SH-63 /50
Year: 1996-97
Condition: Excellent

Specifications:
Table Size: 24.8" X 24.8"
Table Load Capacity 2,640 LBS
Table Index 1 Deg.
X-Axis Table Travel: 33.1"
Y-Axis Saddle Travel: 29.9"
Z-Axis Spindle Head Travel: 33.1"
Maximum Distance Spindle To Table: 2.0" - 31.9""
Rapid Traverse Rate: X,Y,Z 1260 IPM
Cutting Feed Rates .0000004 - 630 IMP
Spindle Taper: Cat 50
Spindle Speeds: 15,000 RPM
Spindle Drive Motor: 40/33.5 HP
Automatic Tool Changer: 120 Positions
Tool To Tool Time 2.0 SEC
Maximum Tool Diameter: 11.8"
Maximum Tool Length: 19.6"
Maximum Tool Weight: 21.7LBS
Max Work piece Swing Dia. 31.5"
Max. Work piece Height 39.4
Machine foot print 130.2" x 229.6" X 126.2"
Machine Weight: 40,700 LBS

Equipped With:
Fanuc 16M
Dual pallet changer with two pallets
OPTIONS INCLUDED:
Spindle RPM 15,000
120 ATC
Chip conveyor
High pressure coolant thru spindle
Helical Interpolation

130"x230"x126"

40,700 lbs.
