Machine in very nice condition, mostly aluminum machining.

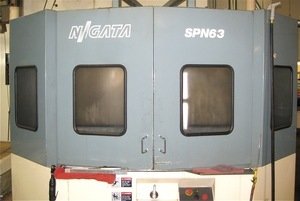

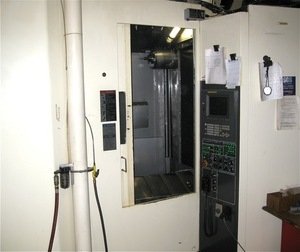

Niigata Mod. SPN-63 with Fanuc 16iM control
Stock Number: 202001 New 1999


Table Size - X (ins) 24.8"
Table Size - Y (ins) 24.8

Table Feed Rate (ipm) - 1181

Number of Pallets 2

X-Travel (ins) 39.4"
Y-Travel (ins) 33.5"
Z-Travel (ins) 29.4"

Spindle Motor (hp) - 40
Maximum Spindle Speed (rpm) 50 - 12000
Spindle Taper - #50

Number of Tools - 126
* Coolant thru Spindle
Table Rotation - 1 degree

Approx. Machine Weight - 44,700 lbs



Equipped With:
* Fanuc 16M
* 1 deg.
* Thru Spindle Coolant
* Rigid Tap
* Chip Conveyor
* 126 pos ATC

44,700 lbs
