OKK HM-50S, 14,000 RPM, 20" Pallets, Fanuc 16i, 1000 PSI CTS, Alum. C/C, 30HP, 1/2 Meg mem, 1 deg index

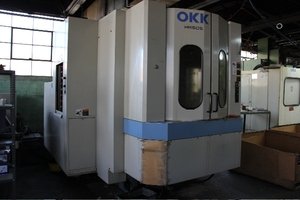

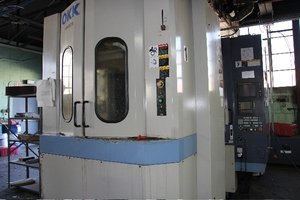

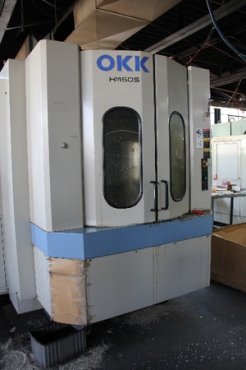

Used 2000 “OKK” model HM-50S CNC Horizontal Machining Center

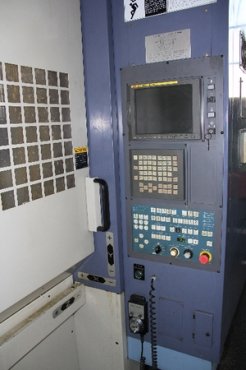

with “Fanuc” model F16i control
________________________________________
FEATURES
•Travel: (X) 24.4”, (Y) 22.05”, (Z) 22.05”
•Spindle motor HP: AC 30 / 25 HP
•Spindle Speed: 100- 14,000 RPM
•Spindle Taper: CAT-40
•Tool Storage: 40 ATC
•Tool Change Time: 1.3 seconds
•Rapid Traverse rate: (X, Y, Z) 1,575 IPM
•Pallet Table Dimension: 19.68”
•Pallet Change Time: 5 seconds
•Digital Servo Feed Motors: (X, Z) 4.8 HP, (Y) 6.1 HP
•Full Enclosure Splash Guards
•Pallet Changer (Turn Type 2-APC)
•Protection Shutters for X, Y, Z Axis
•Large Preloaded Linear Ball Guides
•Spindle Oil Cooler
•Synchronous tap cycle
•Helical Interpolation
•Soft scale II on Y & Z axes
•Machine weight: 22,000 lbs.

OPTIONAL FEATURES INCLUDED ON MACHINE

•Coolant thru spindle unit (1000 PSI)
•Lift up chip conveyor w/micro-fine
•Lubricated oil shot (balance tooling required)
•Memory – increase to 4,199 FT (1280 M)
________________________________________
TERMS:

F.O.B.: Long Island, NY
PAYMENT: In full prior to delivery
DELIVERY: Stock, subject to prior sale
*Specifications are subject to verification, Machine Sold “As Is, Where Is”

22,000 lbs.
