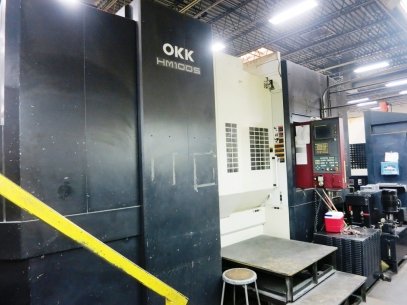

OKK MODEL HM100S CNC LARGE CAPACITY HORIZONTAL MACHINING CENTER
NEW 2004

OKK MODEL HM100S CNC LARGE CAPACITY HORIZONTAL MACHINING
CENTER

NEW 2004

GENERAL SPECIFICATIONS:

Number of Pallets 2
Pallet Size 39.4" x 39.4"
Pallet Load Max. 5,512 lbs
Pallet change time 15 sec.
Table indexing 1 deg index
Traverses:
X 55.12"
Y 43.31"
Z 39.4"
Spindle Nose to Table 1.97" - 45.28"
Feeds (X/Y/Z) 1889 IPM
Rapids (X/Y/Z) 4500 mm/min
Spindle Taper CAT 50
Spindle bearing diameter 100mm
Spindle Drive Motor 40/30 HP
Spindle speed Max. 12,000 RPM
Spindle Torque Max. 420 Nm
Tool Taper MAS BT 50
Tool Magazine Positions 60
Tool diameter with/without adjacent tools Max. 115/270mm
Tool length Max. 500 mm
Tool weight Max. 25 kg
Tool-to-tool time 2.5 sec.
Chip-to-chip time 6 sec.
Machine weight approx. 25,000 kg

EQUIPPED WITH:
Fanuc 160i CNC Controls
(2) 39.4" x 39.4" Pallets
High Pressure Coolant 1000 PSI thur Spindle
Total Enclosure & Chip Conveyor
60 Position Automatic Tool Changer
