EQUIPPED WITH:

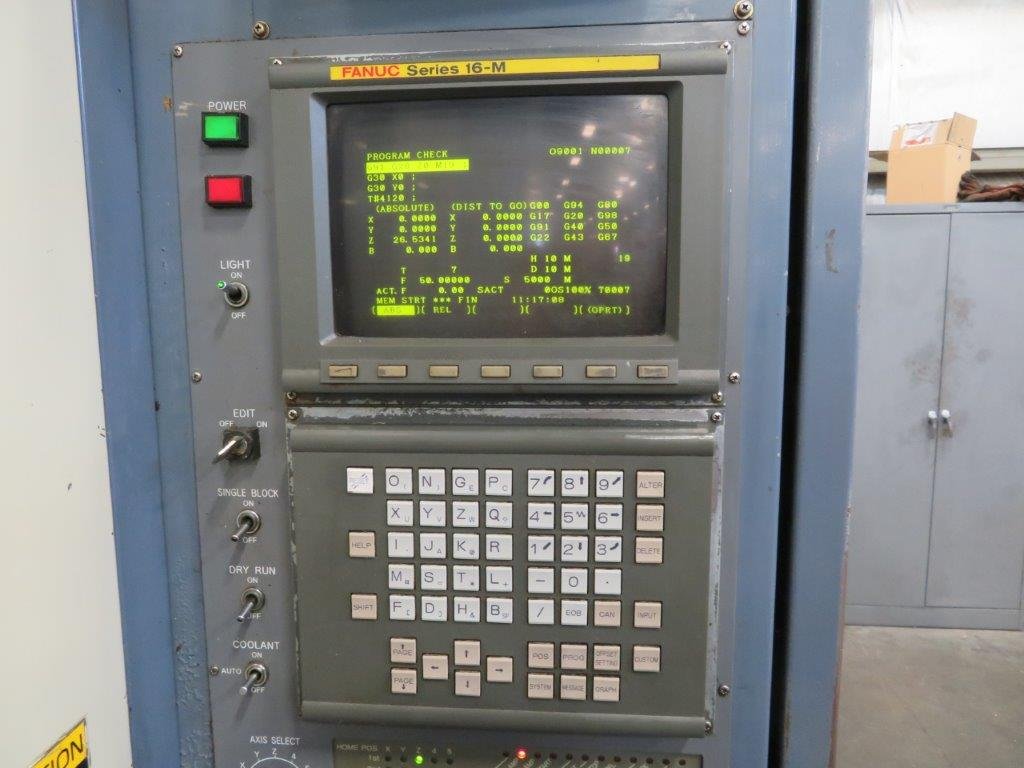

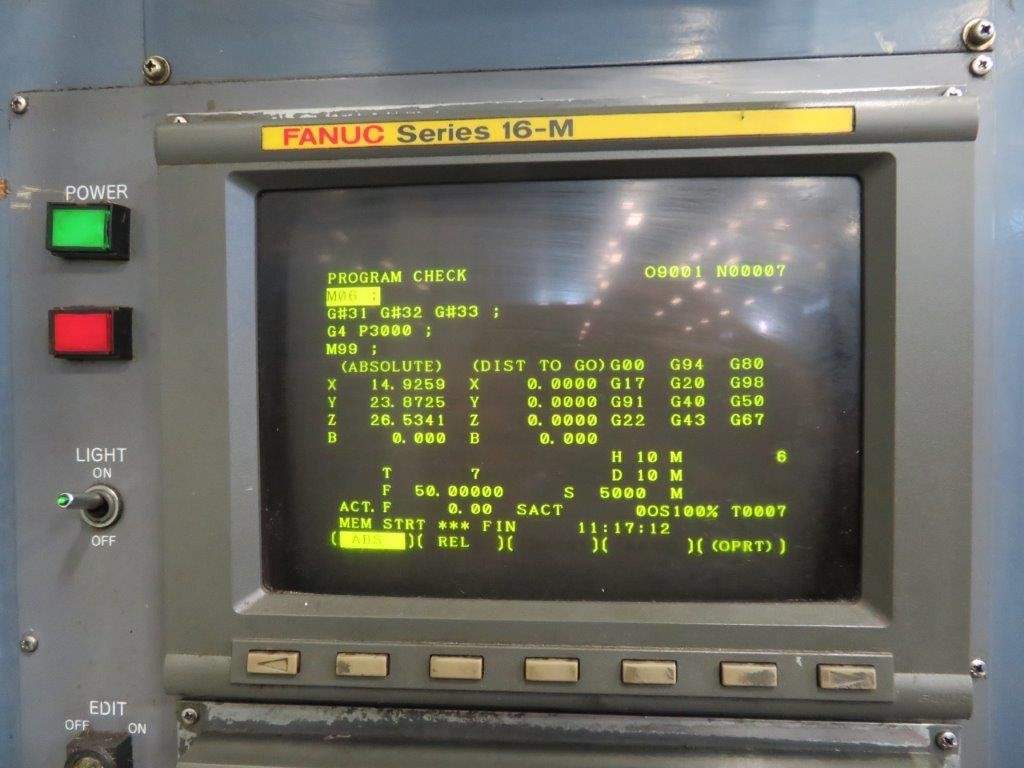

Fanuc 16M Control

1 Degree 4th Axis

8,000 RPM Spindle

CAT-50

40 ATC

Probe

High Pressure Coolant Re-circulation & Filtration

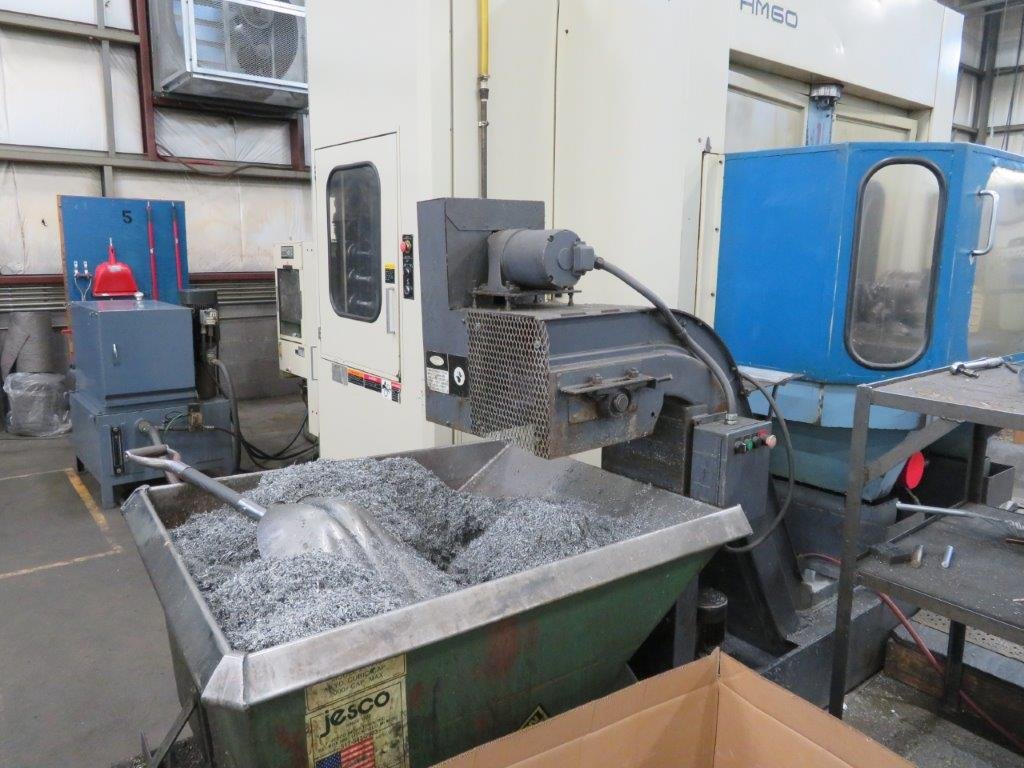

Chip Conveyor

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**

NOTE: Owner replaced the linear bearings and seals, replaced the rotation pinion gear shaft and bearings, refreshed and adjusted the tool changer, refreshed the way covers, replaced some hydraulic hoses, refreshed the coolant and cleaned up the machine, 4/ 2019

Currently under power, making parts

Pallet Size – 24″ x 24″

Number of Pallets – 2

Pallet Indexing – 1 DEGREE

X-Axis Travel – 31.5″

Y-Axis Travel – 28.7″

Z-Axis Travel – 31.0″

Spindle Nose – CAT-50

Spindle Speed – 8,000 RPM

Cutting Feed Speed – 0.030-1574 IPM

Number of Tools – 40 ATC

Approx Dimensions – 120″ x 169″ x 123″

Approximate Machine Weight – 30,864 LBS
