CNC Horizontal MAcchiing Center with Built in Rotary Table, Lift Up chip COnveyor for Aluminum and Coolant through the spindle operating at 1000 PSI.

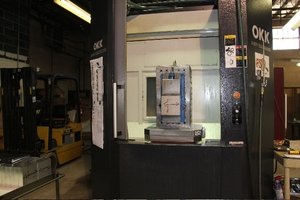

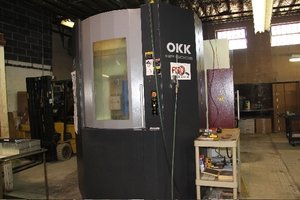

Used 2007 "OKK" model HP-500S CNC Horizontal Machining Center
With Fanuc model 180iS Control

________________________________________

MACHINE SPECIFICATIONS

•Built-in Rotary Table
•Travel: (X) 24.80" (Y) 24.41" (Z) 27.95"
•Spindle Drive: AC 30/15/10 HP
•Spindle Speed: 100 - 12,000 RPM
•Spindle Taper: CAT-40
•Spindle Torque: 103.3 Ft. Lbs.
•Tool Storage: 60 ATC with ATC Zero Return
•Tool Change Time: 1.0 Seconds
•Lift-up Chip Conveyor for Aluminum
•1000 PSI Coolant through Spindle
•Rapid Traverse Rate: (X, Y, Z) 2362 IPM
•Feed Rate: 1575 IPM
•Pallet Changer (Turn Type 2-APC) with Safety Guard
Pallet Table Dimensions: 19.69”
Pallet Change Time: 5 Seconds
•1280M / 4199 ft Program Memory
•Helical Interpolation, Rigid Tapping
•Ballscrews, pretensioned, double anchored supported Lubrication-oil-impregnated sealed
•Machine Weight: 18,222 Lbs.

Features:
•Built-in Rotary Table
•Lift-up Chip Conveyor for Aluminum
•1000 PSI Coolant through the spindle

________________________________________
TERMS:
F.O.B.: Long Island, NY
PAYMENT: In Full Prior to Delivery
DELIVERY: Stock, subject to prior sale

98" x 230" x 109"

18,500 LBS
