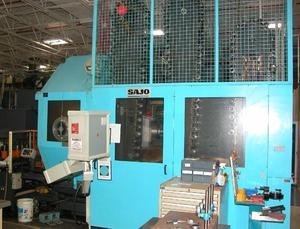

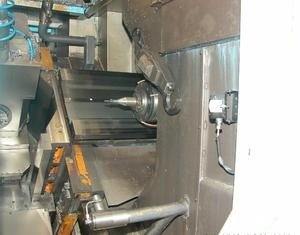

Full 5-Axis Machine, Fanuc 16iM-B Control

New 2002.

Preliminary Specifications:
X Axis Travel .................................... 24"
Y Axis Travel .................................... 18"
Z Axis Travel .................................... 21.5"
Center distance table to spindle ................. 12"
Distance, Table Center - Spindle Nose ............ 4.5"-26.2"
Distance, Pallet Surface - Spindle Center Axis ... 2"-20"
Pallet Size ...................................... 15.75" x 19.5"
Pallet Width of central T-slot ................... 9/16"
Pallet Distance between T-slots .................. 2"
Pallet Index Positions ........................... Inf. Variable
Max weight of workpiece .......................... 661 lbs.
NC Dividing Head (5th Axis) Spindle Taper ........ 50
NC Dividing Head Index Positions ................. Inf. Variable
NC Dividing Head Max Weight Workpiece ............ 55 Lbs.
Machine Spindle Taper ............................ 45
Spindle Speeds ................................... 12,000 RPM
Number of Tools ................................. 192 ATC
Max diameter of tool ............................. 5.1"
Max weight of tool ............................... 22 lbs.
Feeds X,Y,Z : .................................... 590 ipm
Floor Space Including Workpiece Changer .......... 18'2" x 19'
Machine Height ................................... 98.5"
Machine Weight ................................... 15,400 Lbs.
Workpiece Changer Weight ......................... 3,970 Lbs.
Electrics ........................................ 3/60/460 Volt

Equipped With:
Fanuc 16i-M Control
High Pressure Thru Spindle Coolant
Arm Style Tool Changer
Workpiece Changer
Chip Conveyor

approx. 20,000 lbs.
