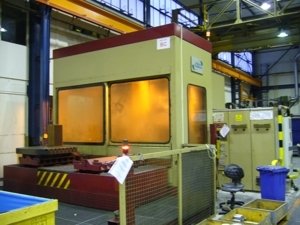

CNC Horizontal Machining Centre with Boring Spindle and NC Facing Head
Specifications:
Number of pallets: 2
Pallet size: 1000 x 1000 mm
Pallet load: max. 2500 kg
Type of pallet changer: boxer type
Collision circle in work area: 1650 mm
Table indexing: B 0.001 degrees
Traverses:
X 1600 mm
Y 1050 mm
Z 1020 mm
W 600 mm
Feeds:
X/Y/Z 1 - 15000 mm/min.
W 1 - 6000 mmm/min.
Rapids:
X/Y/Z 15000 mm/min.
W 6000 mm/min.
B 5.56 rpm
Spindle taper: SK 50
Spindle bearing diameter: 160 mm
Spindle drive motor: 30 / 40 KW
Spindle speeds: 12 - 3000 rpm
Spindle torque: max. 2300 Nm
Facing head diameter: 600 mm
Facing slide travel: U +/- 75 mm
Facing head speeds: 2 - 300 rpm
Facing head torque: max. 10000 Nm
Facing head feeds: 1 - 2000 mm/min.
Boring spindle diameter: 125 mm
Tool magazine positions: 60
Tool diameter with/without adjacent tools: 125 / 300 mm
Tool length: max. 400 mm
Tool weight: max. 35 kg
Machine weight: 43000 kg
Equipped with:
Coolant through the spindle 8 bar, 20 l/min;
Chip conveyor;
Tool life management;
Tool measurement device;
Renishaw measuring probe;
Torque control;
