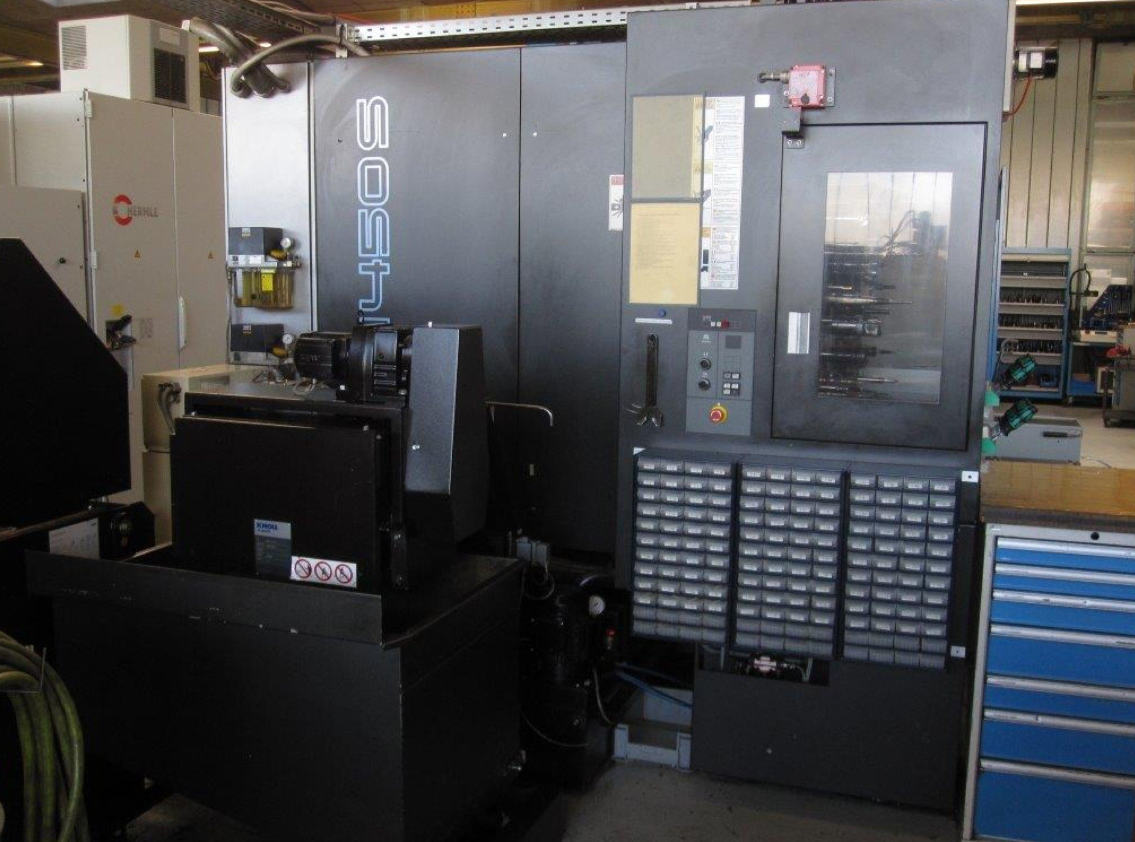

TOYODA, FH 450 S, HORIZONTAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:HORIZONTAL
Manufacturer:TOYODA
Model:FH 450 S
YOM:2006
Location:Netherlands, BABBERICH
Price:On request
Stock No:7100
Control:CNC
ID:AS29319

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

X - Travel: 600mm
Y - Travel: 600mm
Z - Travel: 600mm
B-Axis indexing: 360.000°
Table Length: 450mm
Table Width: 450mm
Table load: 400
Number of pallets: 2
Feed rate X-Axis: 50000mm/min.
Feed rate Y-Axis: 50000mm/min.
Feed rate Z-Axis: 50000mm/min.
Indexing speed B-Axis: 90 Gr = 2.5 Sec,Degrees/min
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 15.000Rpm
ATC / revolver: 60
Coolant true spindle / Bar:Yes
Number of controlled axis:3 + 1
Chip conveyor: Yes
Coolantsystem: Yes

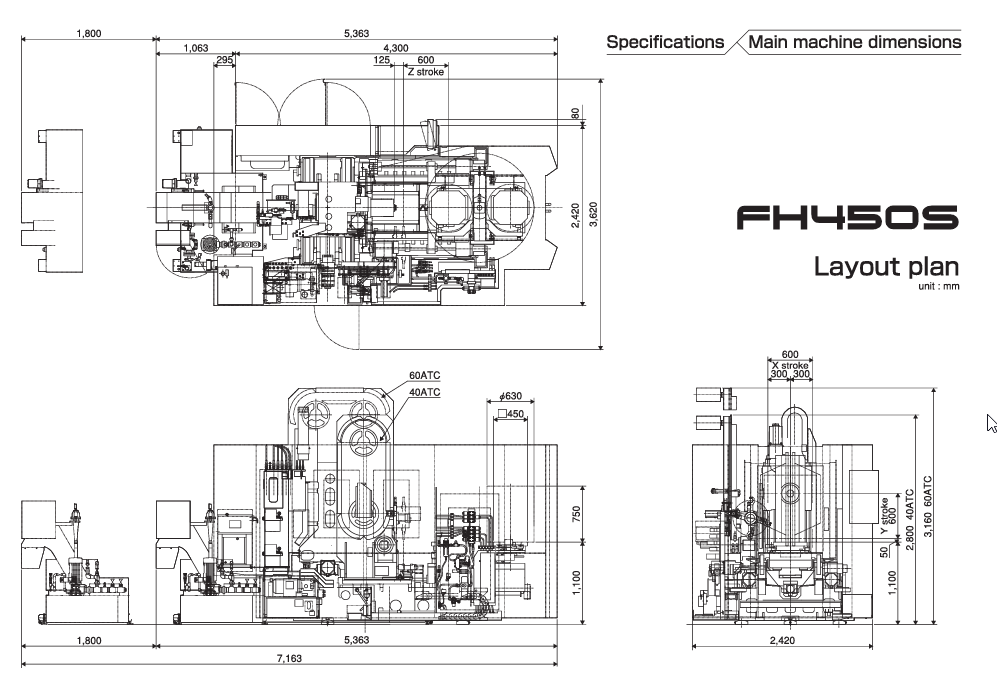

Length: 5363mm
Width: 2500mm
Height: 2785mm
Weight: 11500kg

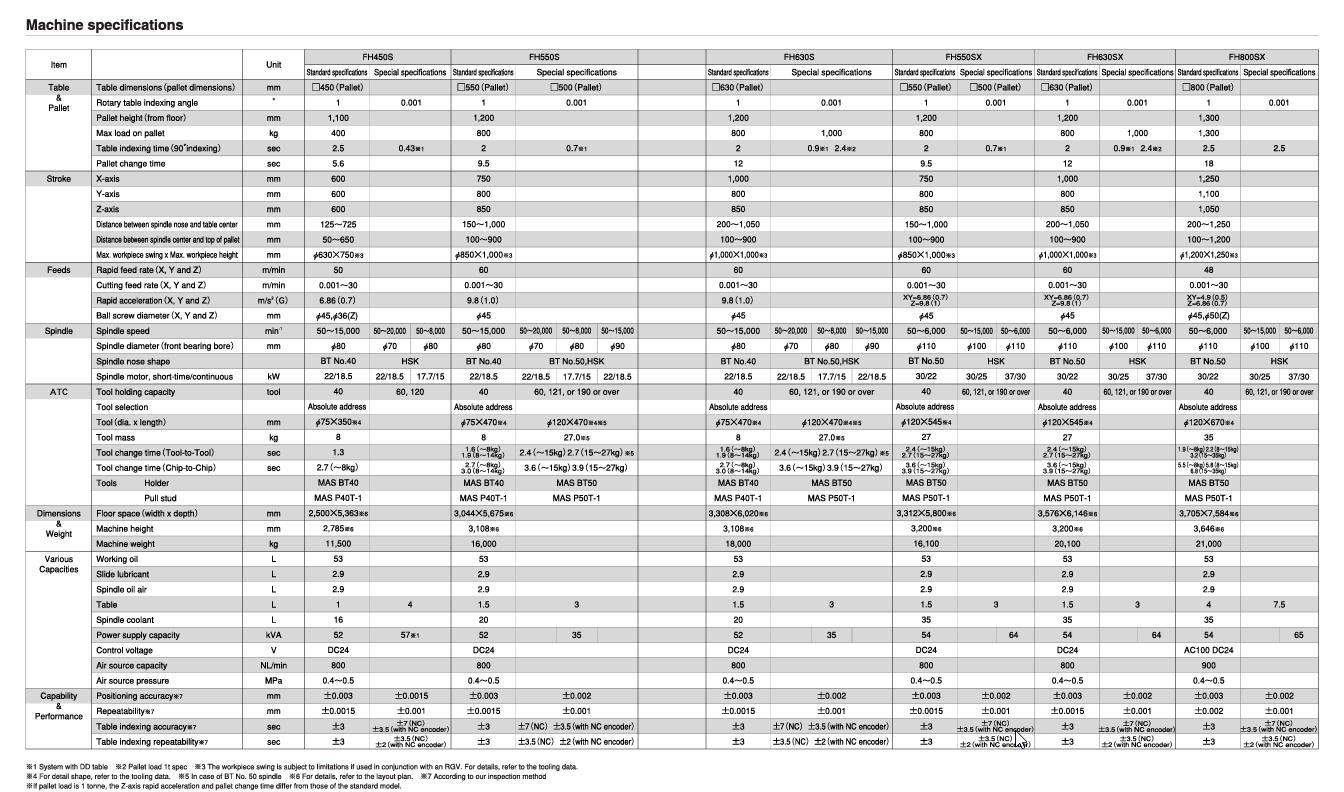

Specifications:

X - Travel: 600mm
Y - Travel: 600mm
Z - Travel: 600mm
B-Axis indexing: 360.000°
Table Length: 450mm
Table Width: 450mm
Table load: 400
Number of pallets: 2
Feed rate X-Axis: 50000mm/min.
Feed rate Y-Axis: 50000mm/min.
Feed rate Z-Axis: 50000mm/min.
Indexing speed B-Axis: 90 Gr = 2.5 Sec,Degrees/min
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 15.000Rpm
ATC / revolver: 60
Coolant true spindle / Bar:Yes
Number of controlled axis:3 + 1
Chip conveyor: Yes
Coolantsystem: Yes
Length: 5363mm
Width: 2500mm
Height: 2785mm
Weight: 11500kg

Dealer name:

Mach4Metal Netherlands, Babberich
