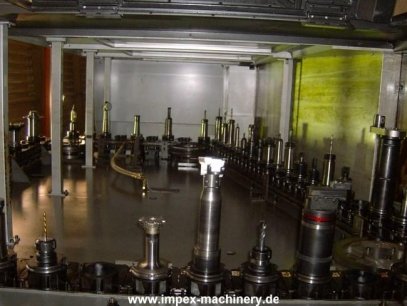

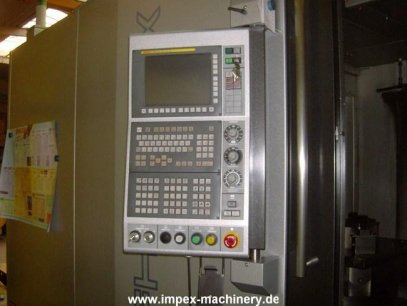

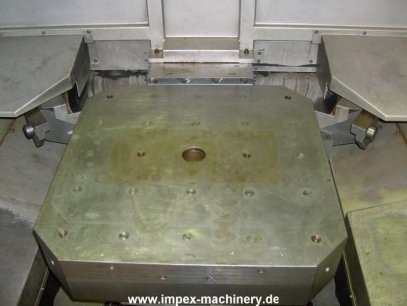

Technology control CNC FANUC 31 iMA x-travel 1000 mm y-travel 800 mm z-travel 850 mm pallet size 630 x 630 mm workpiece weight 800 kg Toolholders spindle speed 6000 rev / min Power 22 kW feed range 1 60,000 mm / min rapid traverse 60 m / min Tool weight max. 27 kg Maximum tool diameter. 120 mm Tool length max. 545 mm max distance spindle / table. 800 mm total power requirement 90 kW weight of the machine 21 t dimensions of approximately 8.0 x 3.5 x 3.2 m 10.824h Features 60 tool magazine NC rotary table 2-pallet changer coolant through spindle hours Steürspannung chip conveyor
