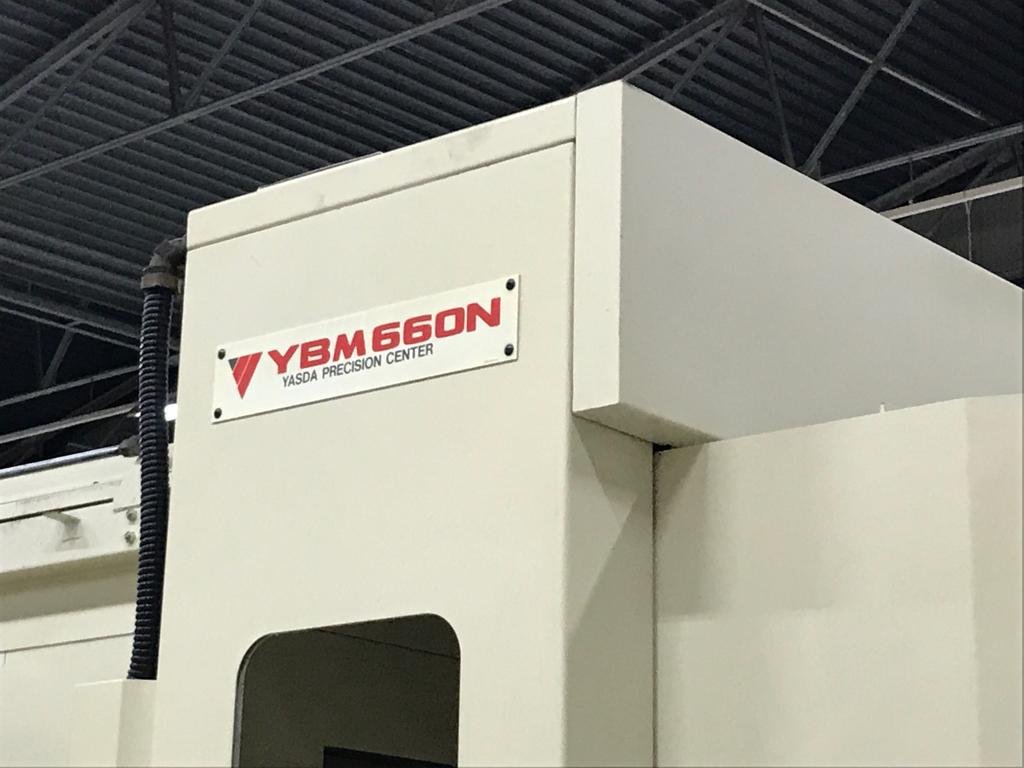

YASDA, YBM 660N, HORIZONTAL, MACHINING CENTERS
  • Condition:Used
  • Category:MACHINING CENTERS
  • Type:HORIZONTAL
  • Manufacturer:YASDA
  • Model:YBM 660N
  • YOM:1999
  • Location:Italy
  • Price:-
  • Stock No:CNC0108
  • Control:CNC
  • ID:AS28264
Description:

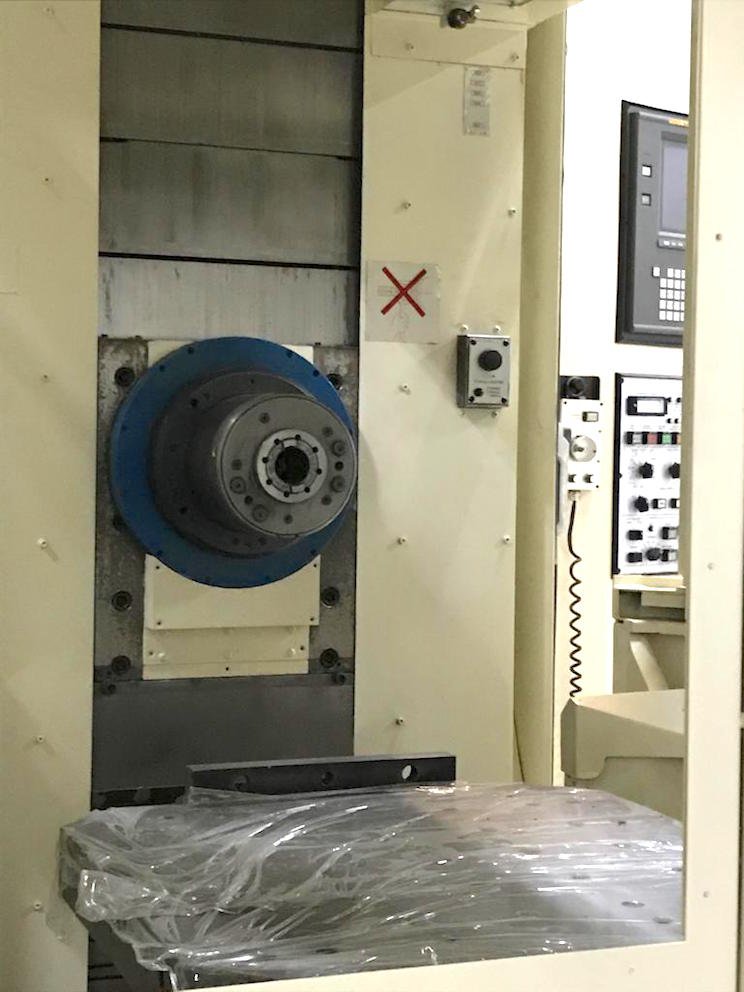

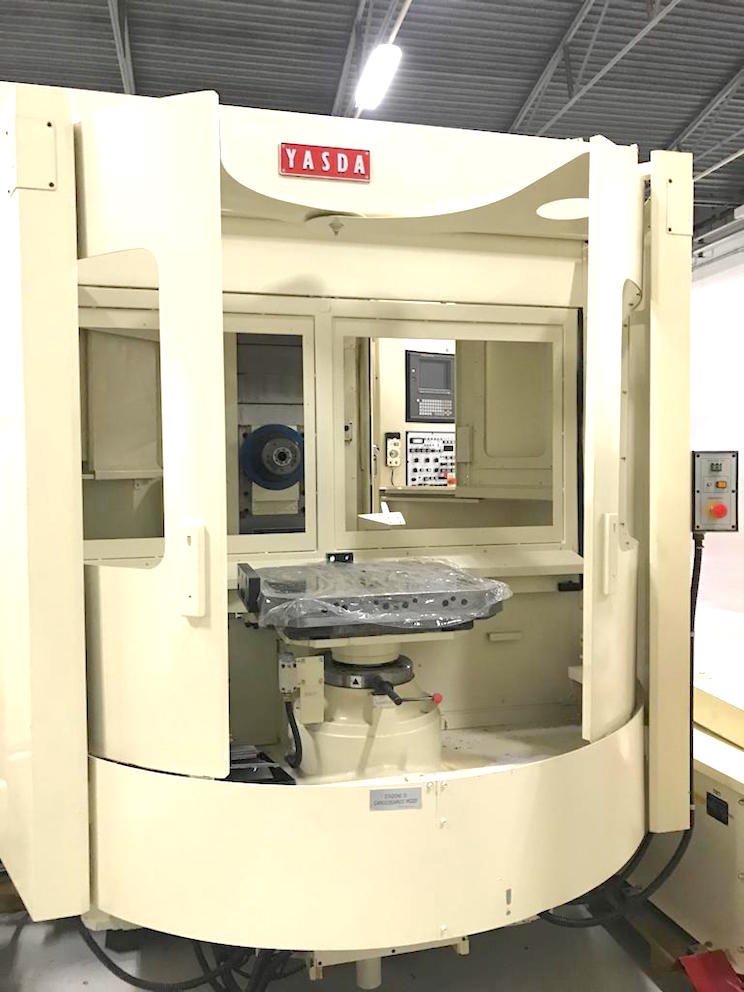

Horizontal Center Machine. Manufactured in 1999. Control FANUC, 18.000 rpm, pallet 630 x 630, etc...Located in Italy. Immediate availability.
Specifications:

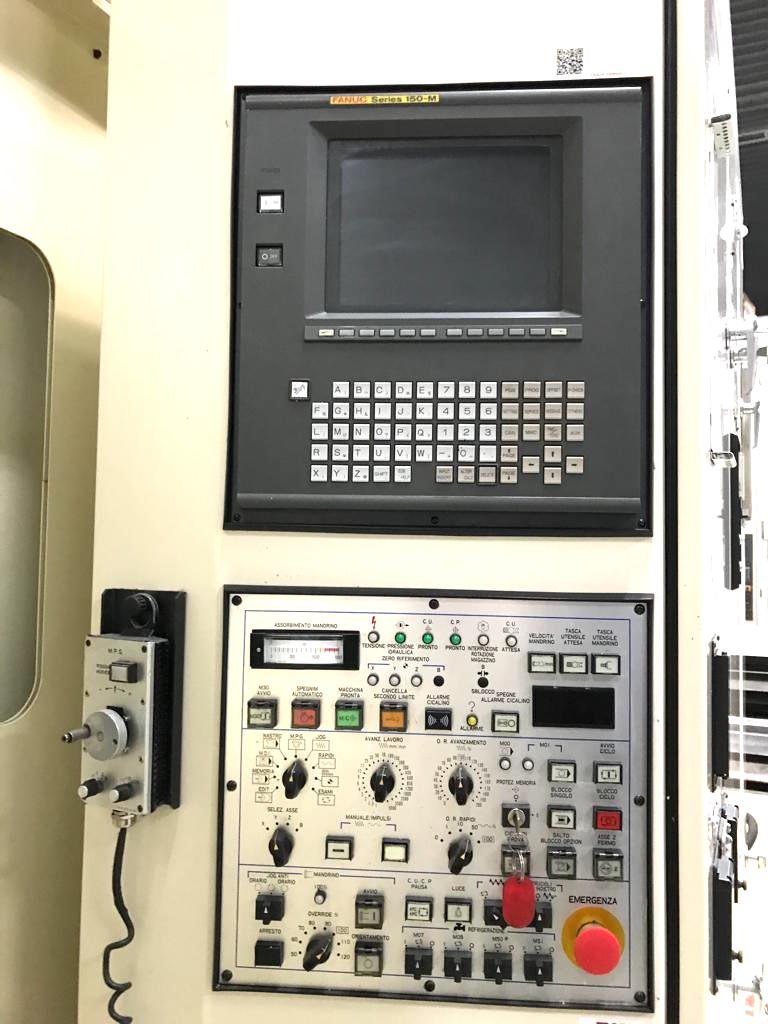

CNC Control FANUC Series 150-M
Spindle center distance - pallet plane: 70-820 mm

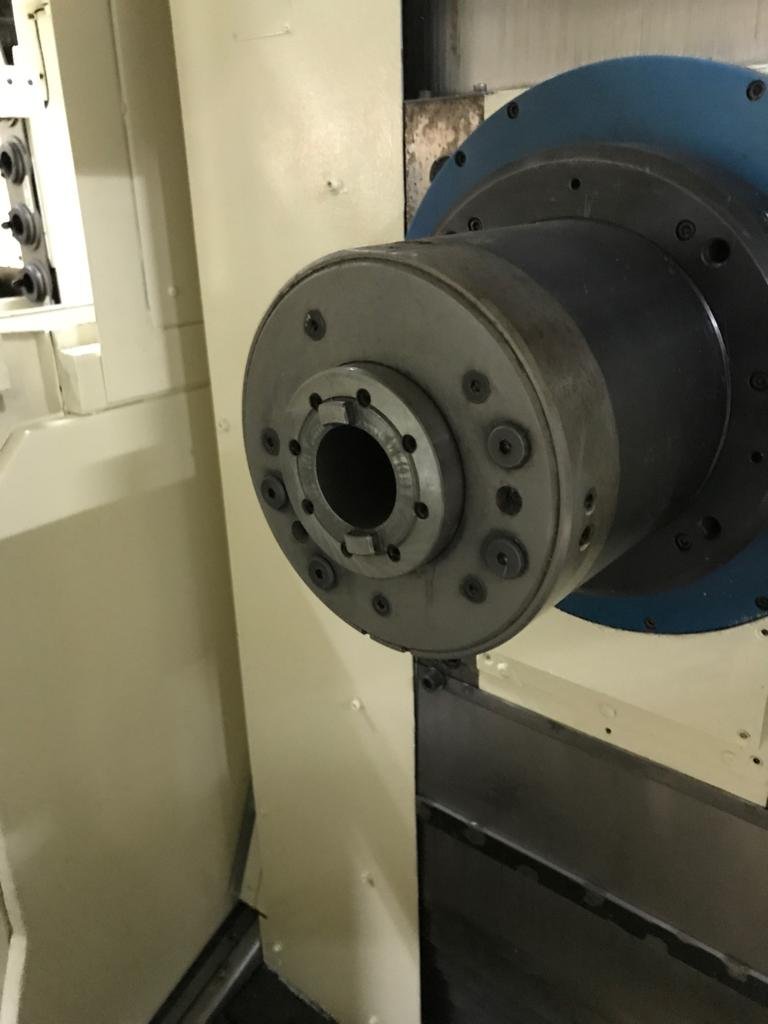

Cone type: ISO 40 (MAS 403)
Speed spindle: 200-18000 rpm
Power spindle: (CONT./30 MIN.) 18.5 kW
X axis 850 mm
Y axis 750 mm
Z axis 700 mm
Rapid feed: X/Y/Z 24/24/24 m/min
Table dimensions: 630X630 mm
Weight permitted: 1200 kg

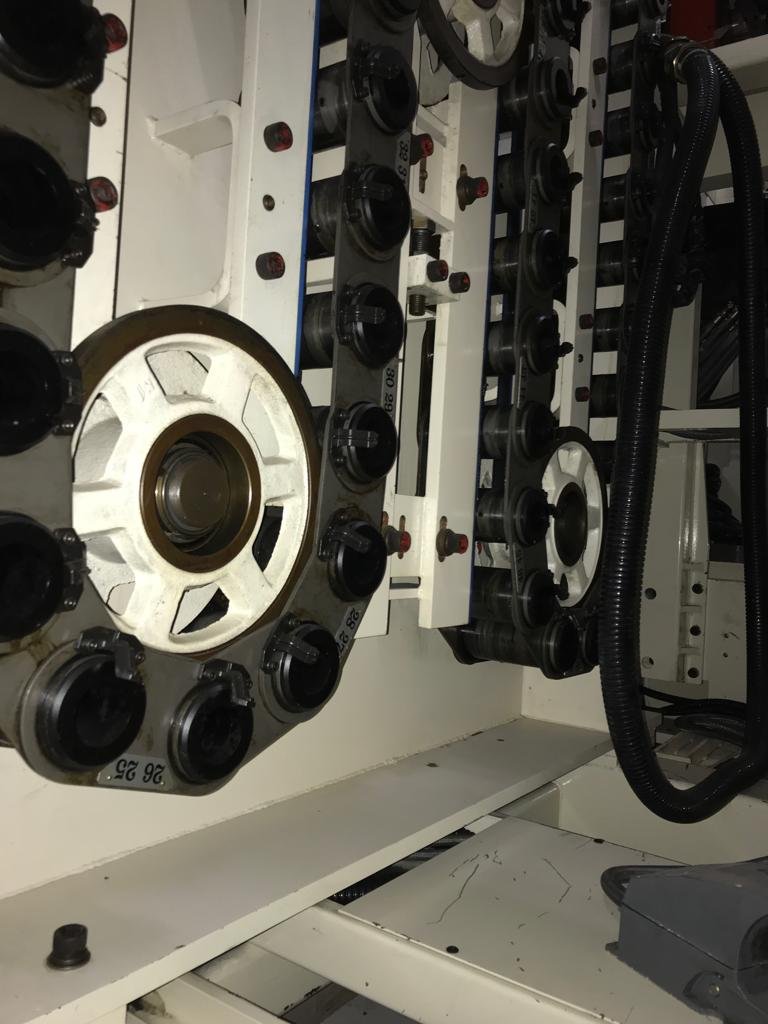

Tool magazine: 120 pos
Dimensions of tools: 100/440 mm
Max. weight of tools: 12 kg
Numbers of pallet: 2
Indexing pallet: 1ยบ
Weight: 20.500 kg

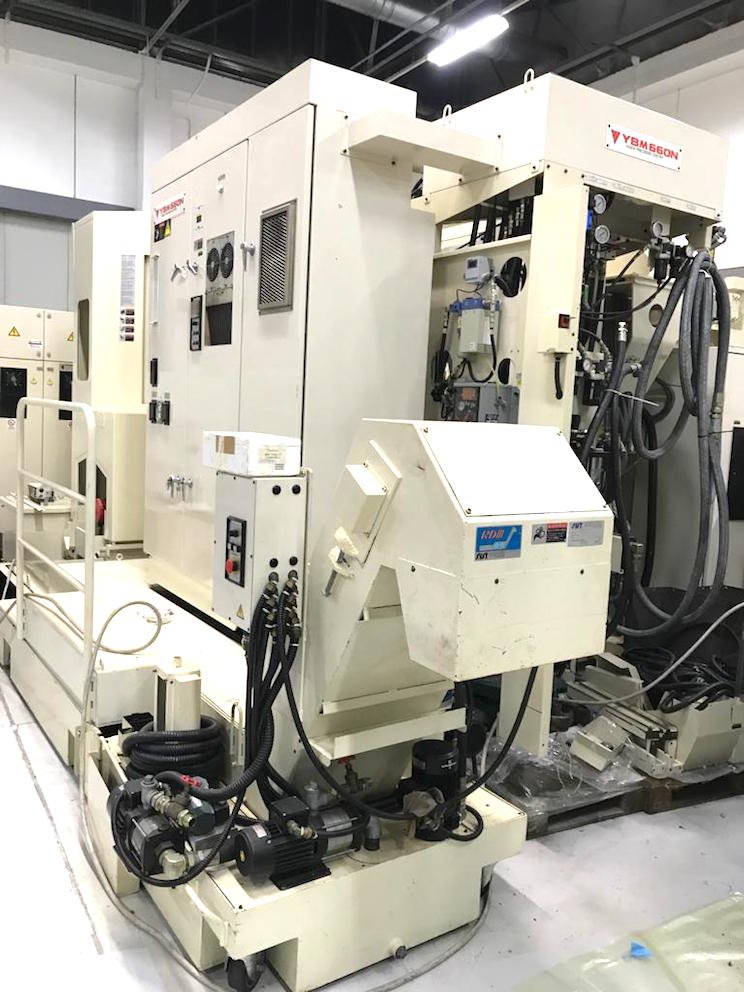

Chip conveyor
Remote electronic handwhell
Tool preseting


Cooling area of the working area separator oil from the integrated refrigerant in the bathtub sensors for checking the refrigerant flow.
Refrigartion system high pressure tools 35 bar HAS-1 function (High speed).
Control of spare tools.
Tool confirmation system.
Marposs probe mounted on the table for automatic surveying.
Compensation lenght and radius tools and tool breakage control.
Tool life management.
Adadaptive control of cutting efforts.
Memory extension AT 640meters of helicoidal interpolation tape.
Programmable mirror image.
Restart program.
FANUC data server rigid synchronized tapping.
Thermal stabilization of the structure.
Weight:
20.500kg
