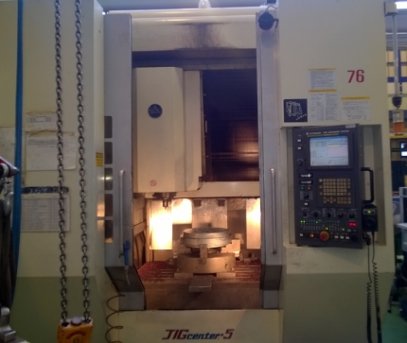

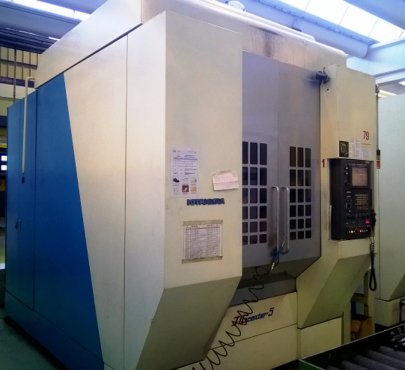

KITAMURA JIG CENTER 5
YEAR 2006
work plan: 1200 x 780 mm
Longitudinal travel X 815 mm (32.1 in)
Transversal travel Y 745 mm (29.3 in)
Z 500 mm vertical stroke (19.7 in)
CNC FANUC 16 i MB
maximum part weight 1500 kg (3306 lb)
Spindle taper BT 40
Spindle Speed: 20 ~ 20,000RPM

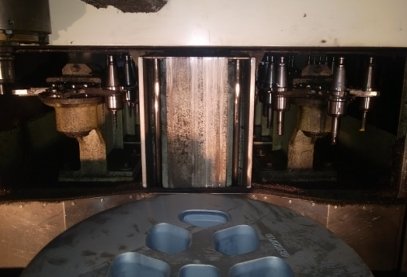

Tool Storage Capacity: 100 Pcs.
Maximum spindle speed 20000 rpm
external coolant
internal coolant high pressure pump 20bar
Air inside M151
1. Addition Function Library (FOCAS)
2. Tool Life Management Additional 512
3. Additional block skip / 1/2/3/4
4. Ethernet
5. Dataserver cap 1GB
6. Offset work G54.1 P1-P300
7. High speed skip function G990 Q1 Q2 Q3
8. HPCC G05 P10000
9. Helical Interpolation
10. Coordinate System G68 rotation
11. Variable from # 1 to # 999
Renishaw Renishaw laser center and NC3

-
