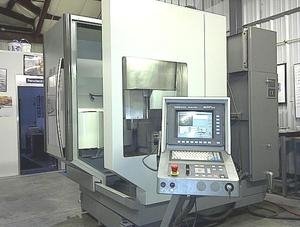

Five Axis Rotary / Tilt Table, Heidenhain Glass Scale Feedback, 15000 RPM Spindle Speed, Pendant Control, Full Enclosure
Specifications:
Travel: X-Axis 19.7"
Y-Axis 15"
Z-Axis 15"
B-Axis (Table Swivel) 0 - 180 Degrees
C-Axis (Table Rotation) .001 Degrees
Table Size 19.6" x 14.9"
Spindle Speed 20 - 15,000 RPM
Spindle Taper Cat 40
Spindle Motor 20 / 15 HP
Tools 24
Table Load Capacity 440 lbs.
Rapid Traverse Rates 1181 IPM
Max Tool Diameter 3"
Max Tool Length 11"
Max Tool Weight 13.2 lbs.
Machine Dimensions (L x W x H) 100" x 68" x 96"
Machine Weight 16,000 lbs.
FEATURES:
DMG MILLPLUS / HEIDENHAIN TNC-426 CNC CONTROL
15" Color CRT
Five Axis Rotary / Tilt Table
Heidenhain Glass Scale Feedback
15,000 RPM Spindle Speed
Pendant Control
Full Enclosure
