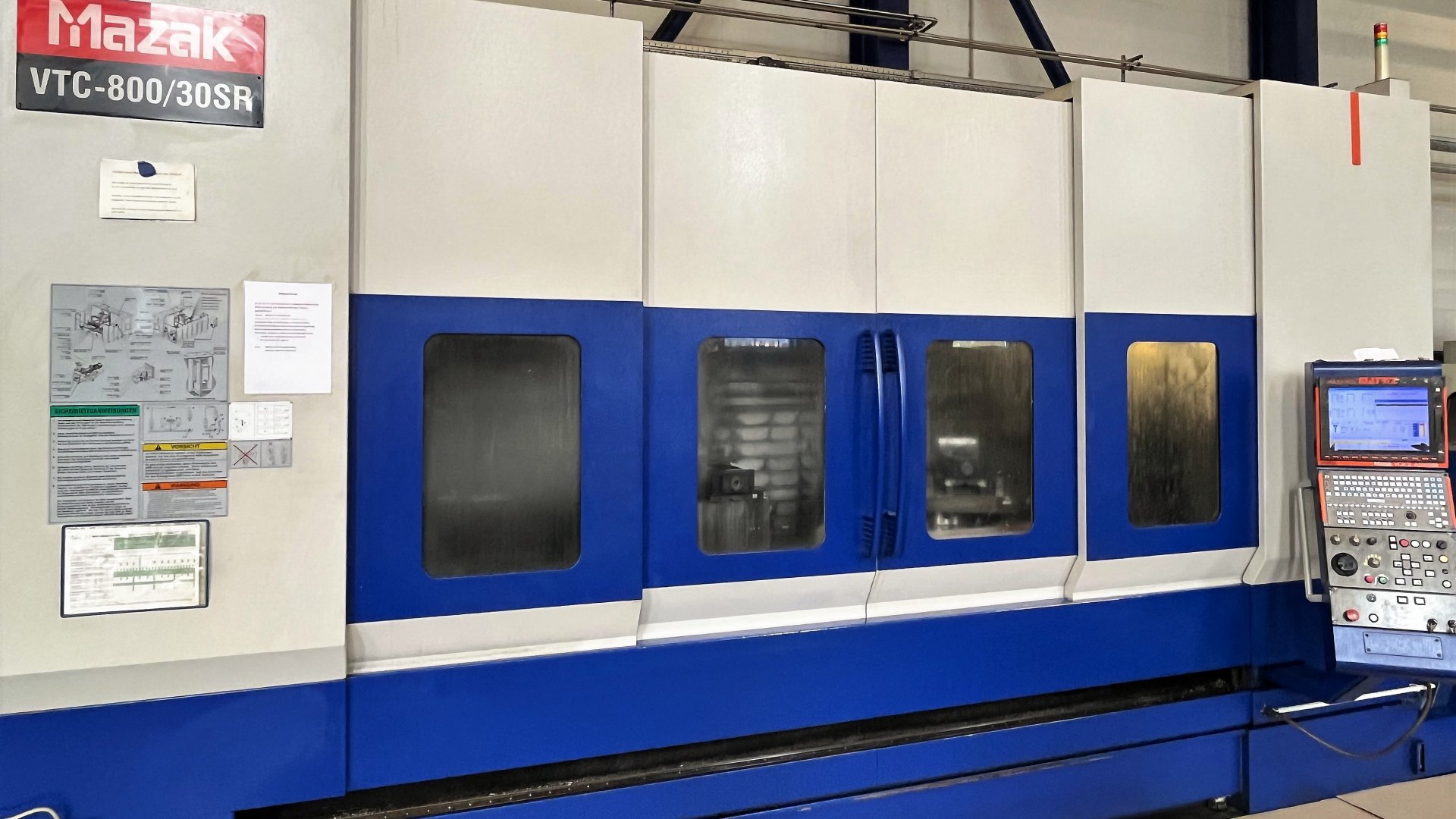

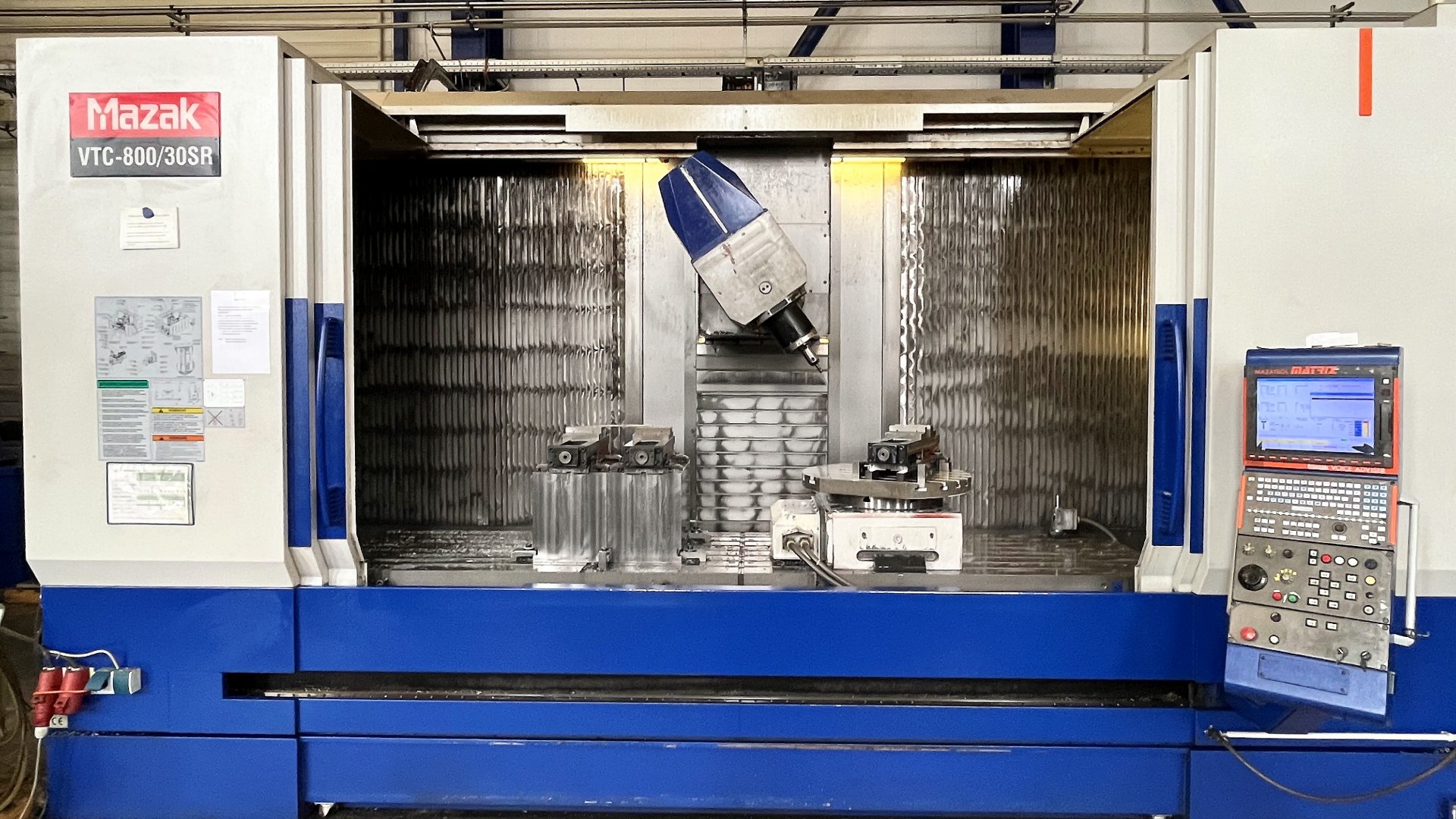

MAZAK, VTC 800/30SR, UNIVERSAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:UNIVERSAL
Manufacturer:MAZAK
Model:VTC 800/30SR
YOM:2009
Location:Netherlands, BABBERICH
Price:On request
Stock No:7596
Control:Manual
ID:AS29486

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

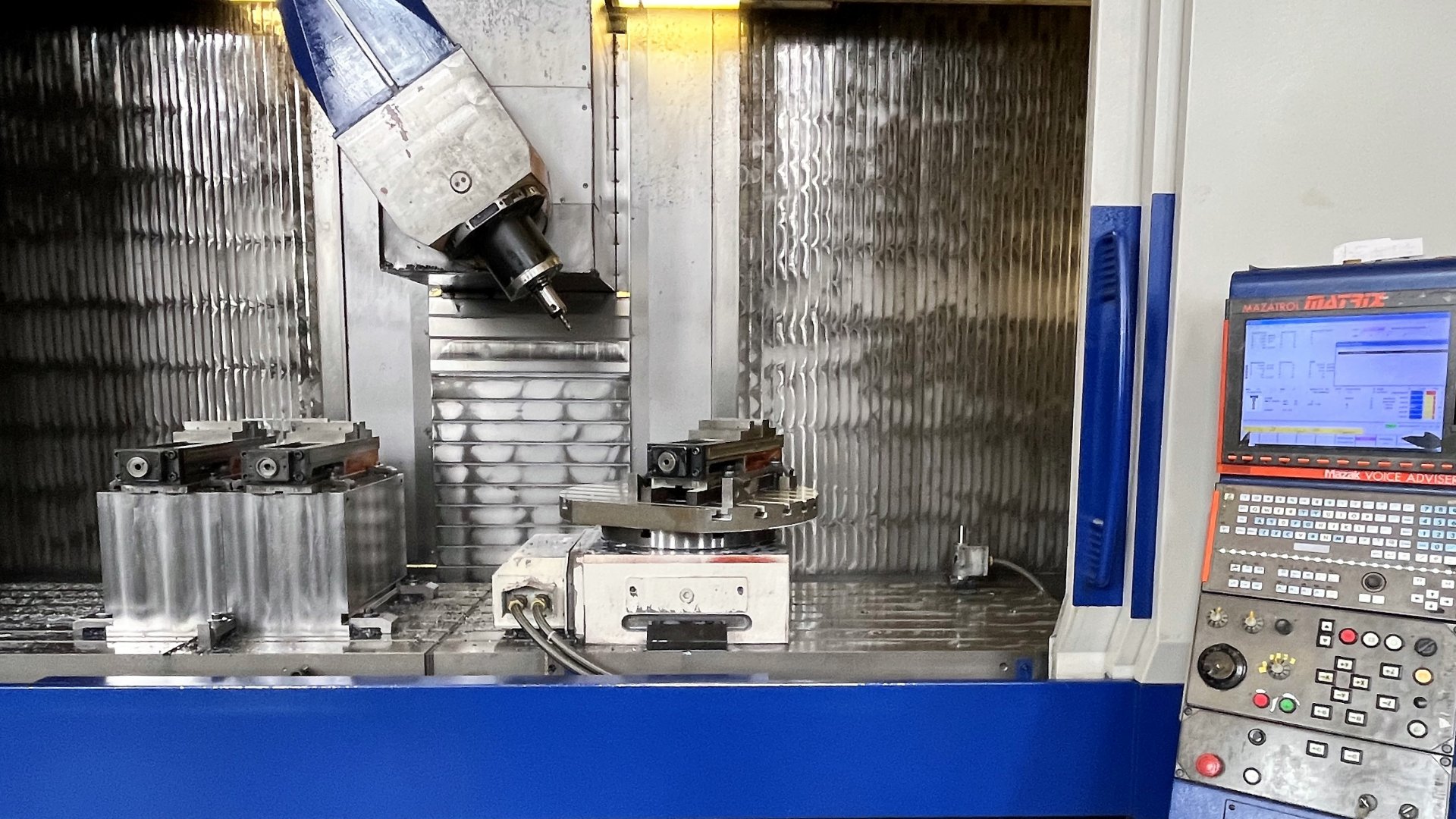

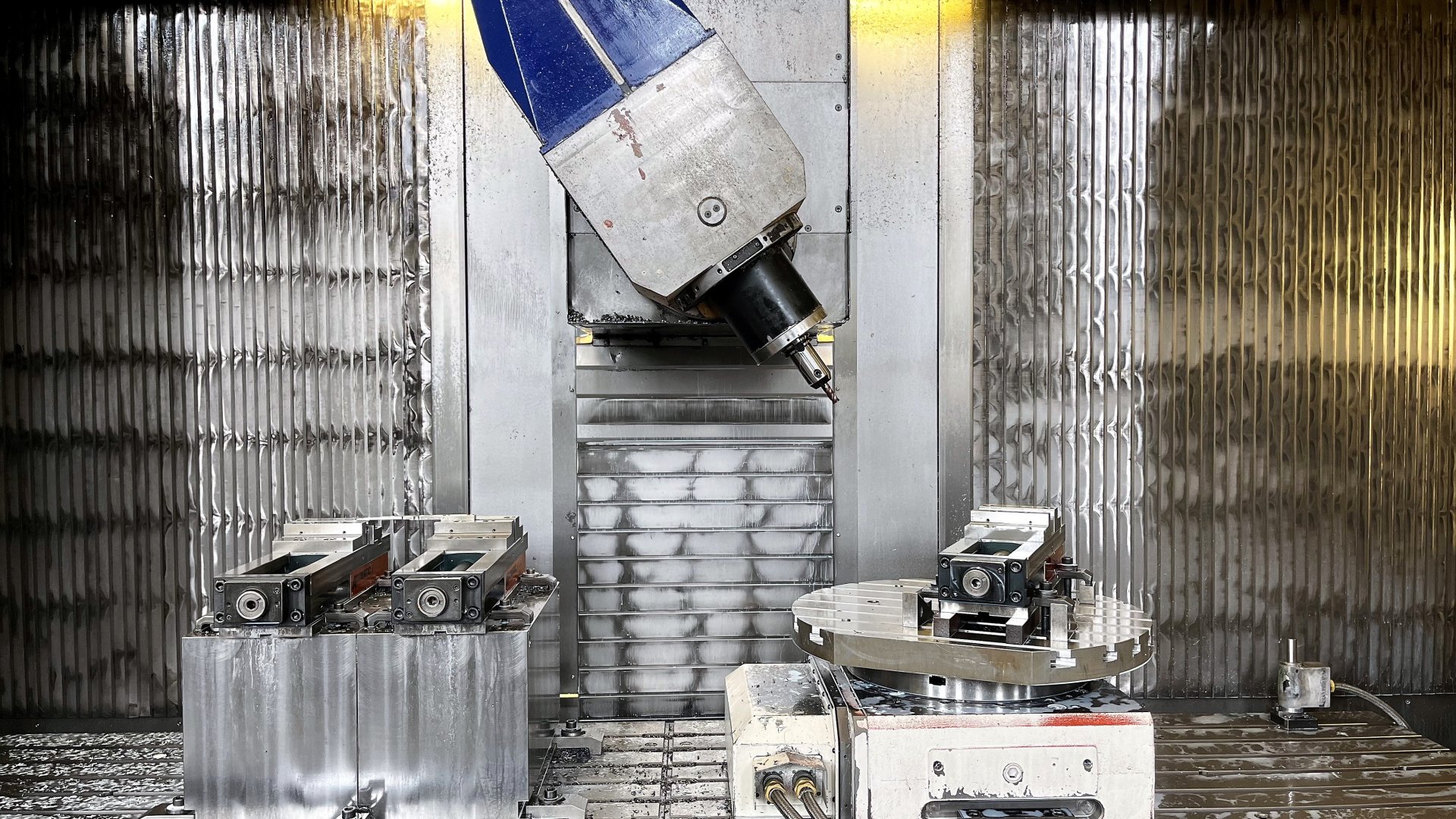

5-axis CNC machine (VMC)
MAZAK - VTC 800/30SR
MACH-ID 7596
Make: MAZAK
Type: VTC 800/30SR

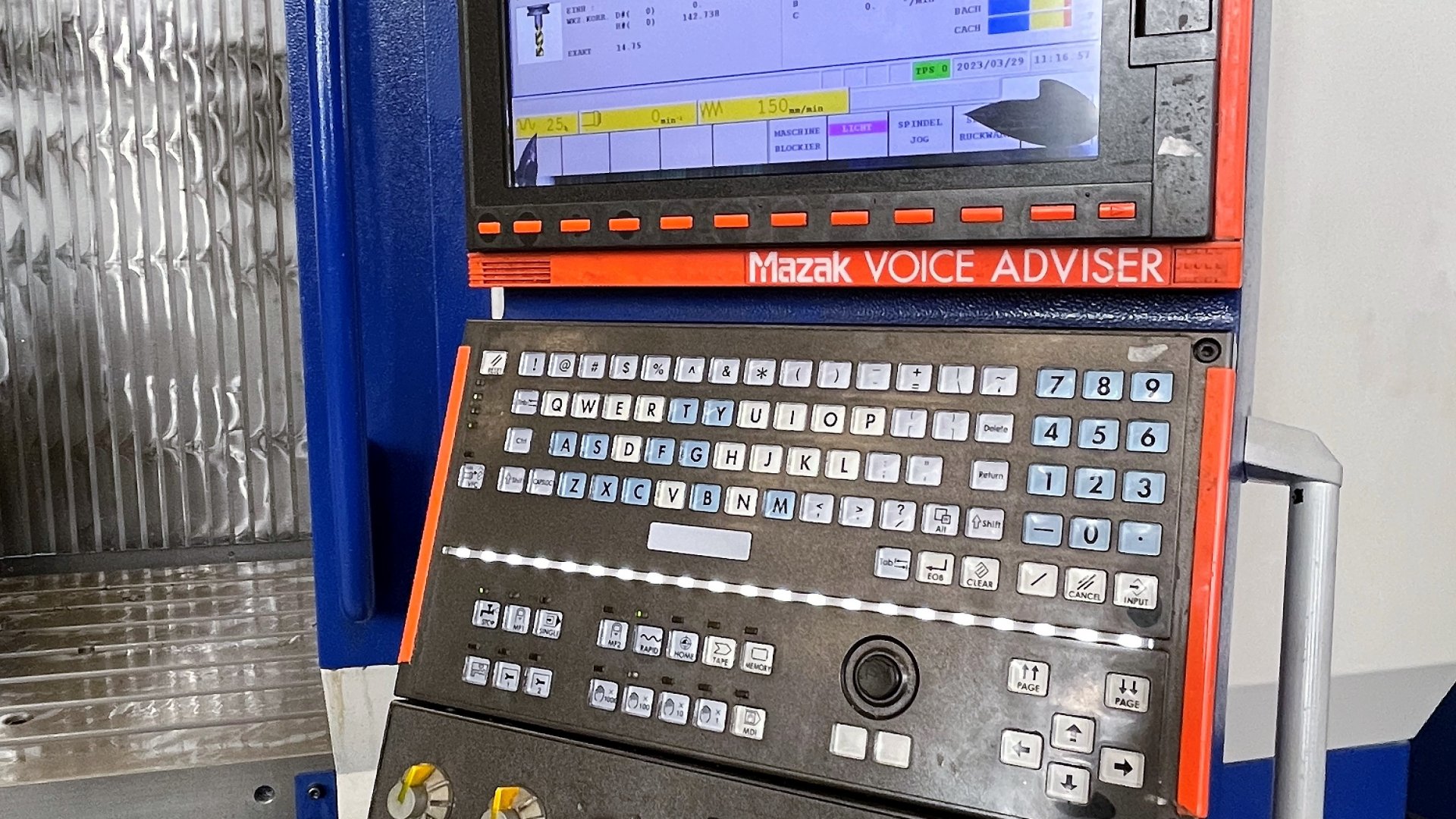

Control: MAZATROL MATRIX
Year: 2009
10800 spindle hours
Renishaw OMP 60 3D Taster
ikz 15 Bar

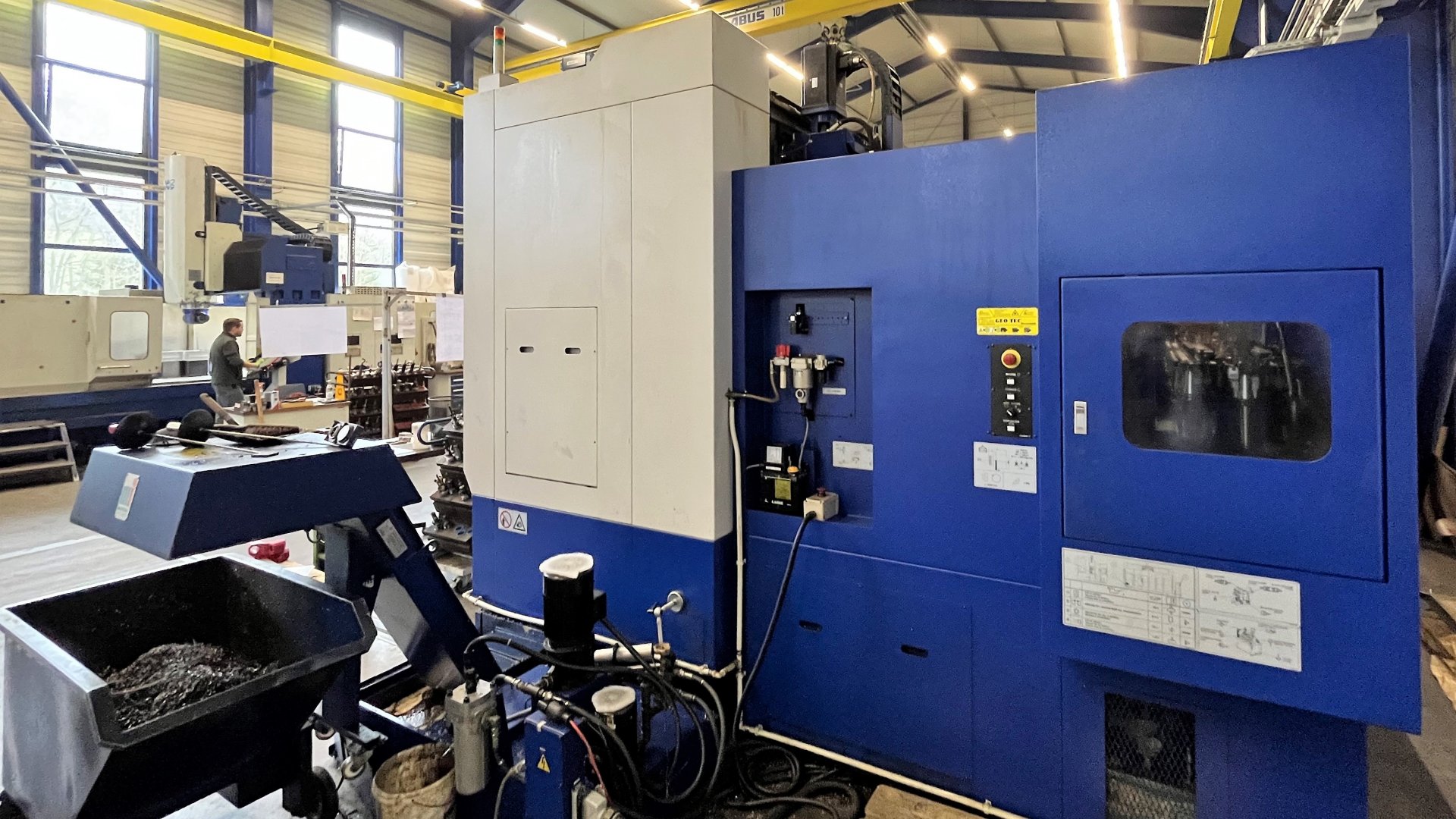

Double chip conveyor
Free from 09.2023

X - Travel: 3000mm
Y - Travel: 800mm
Z - Travel: 720mm
A - Axis: 360000°
B - Axis: 110°
Table Length: 3500mm
Table Width: 820mm
Table load: 2500
Table Ø: 700mm
Feed rate X-Axis: 50000mm/min.
Feed rate Y-Axis: 50000mm/min.
Feed rate Z-Axis: 50000mm/min.
Feed rate B-Axis: 20Degrees/min
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 35kW
Speeds / ranges: 18000Rpm
ATC / revolver: 48
Coolant true spindle / Bar:15
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 7000mm
Width: 3500mm
Height: 3500mm
Weight: 20000kg

Specifications:

5-axis CNC machine (VMC)
MAZAK - VTC 800/30SR
MACH-ID 7596
Make: MAZAK
Type: VTC 800/30SR
Control: MAZATROL MATRIX
Year: 2009
10800 spindle hours
Renishaw OMP 60 3D Taster
ikz 15 Bar
Double chip conveyor
Free from 09.2023

X - Travel: 3000mm
Y - Travel: 800mm
Z - Travel: 720mm
A - Axis: 360000°
B - Axis: 110°
Table Length: 3500mm
Table Width: 820mm
Table load: 2500
Table Ø: 700mm
Feed rate X-Axis: 50000mm/min.
Feed rate Y-Axis: 50000mm/min.
Feed rate Z-Axis: 50000mm/min.
Feed rate B-Axis: 20Degrees/min
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 35kW
Speeds / ranges: 18000Rpm
ATC / revolver: 48
Coolant true spindle / Bar:15
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 7000mm
Width: 3500mm
Height: 3500mm
Weight: 20000kg

Dealer name:

Mach4Metal Netherlands, Babberich
