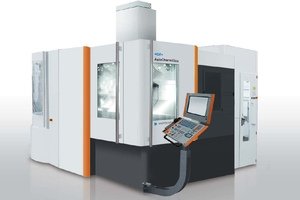

The MIKRON HPM 450U is a powerful 5-axis solution for universal, automated production which perfectly combines dynamics and stability. Apart from the compact basic machine, also available for the MIKRON HPM 450U system are a pair of highly efficient milling spindles, a wide range of tool changer pallets ideal for customisation to suit customer requirements, as well as tried and tested optional pallet magazines. In addition, this machine offers impressive machining options from simple drilling to complex simultaneous 5-side to 5-axis machining processes.
Thanks to its outstanding accessibility and ergonomics, a good view of the milling process and user-friendly machine handling, the MIKRON HPM 450U offers one-of-a-kind operability without compromises.
Specifications:
Key Points
* Mechanical design based on tried and tested C-frame construction. Column, table and quill are made from ultra rigid cast iron to gaurantee stiffness and optimised thermal stability.
* The APG (Advanced Power Generator) is a high efficiency, high output 72 Amp generator that delivers speed, consistency and precision. Just 3.7 kW/hour of power consumption can be expected at full power.
* Integrated tool capacity for 4 positions.
* Integrated C-axis with either a System 3R Macro, Macro/Combi or a Erowa ITS 50 automatic chuck. PLease select chuck type from option list .
* Microsoft® Windows® XP operating system that employs a simple conversational programming design.
* Data Networking. The system can be easilty integrated in to a data network via LAN, for remote monitoring and data management.
* A unique manual positioning mode lets you erode simple jobs without time-consuming CNC programming.
* A 2.5 kW chiller is included to maximize repeatability and precision.
* Fine Drill option is available for the erosion of small holes using electrodes as small as .004".
