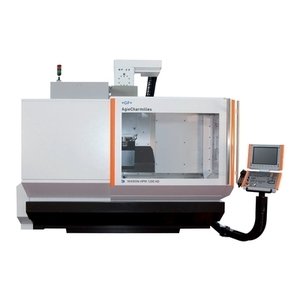

The MIKRON HPM 1200 HD machining center has been specifically designed for moldmaking and diemaking and for industrial short-run production of high-quality components. By using this machine, difficult machining tasks in both the lower and middle speed range can be tackled (HPC). Finishing work at high speeds can also be carried out with outstanding results (HSC). This is of particular benefit to the moldmaking and diemaking industries, which are geared towards single-part and short-run production. The MIKRON HPM 1200 HD machining center is designed as a slide carriage machine with moving work table. Two linear movements are carried out on the tool and one linear movement is on the workpiece. The movement of the work table (X-axis) enables easy accessibility. The biaxial unit consists of the lateral slide (Y-axis), which travels over a long length, all of which is supported by the polymer concrete machine base and the spindle slide for the Z-movement. To obtain the dynamics listed in this specification, the machine frame has been sized to be load-optimized. To do so, the cast polymer concrete column has been completely reengineered. The machine table, spindle slide and lateral slide are ribbed of cast construction, optimized for weight and rigidity. This allows reliable control over the machining and mass forces that occur – the basic prerequisite for high geometric precision and surface quality on the workpiece.
Specifications:
Key Points
Rigid design - The static polymer granite machine tool base and the direct drive design enables the machine to handle high thrust forces while still maintaining excellent positioning accuracy .
High performance 20,000 RPM HSK-A63 in-line spindle delivers 84Nm of torque at 4450 rpm for high metal removal, yet still providing the higher RPM's for fine surface quality.
60 position toolchanger has easy accessability for tools up to 3.14" in diameter fully occupied, 5.1" in diameter partially occupied. Tool lengths are accepted up to 11.8".
High resolution glass scales on all axes. A direct path measuring system is provided for determining the position on all linear axes.
Fast iTNC530 control presents a neatly designed and user freindly interface.
The MIKRON HPM 1200HD is subject to the strict GF AgieCharmilles quality requirements. Each machine is factory-tested in accordance with DIN/ISO 230-2 (97).
A cab enclosure neatly encloses the working area. The sliding door can be opened wide both front and sideways, permitting easy loading using a crane. The working area is well lit by the integrated lighting system.
