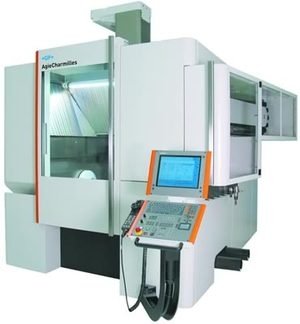

The HPM 800U HD is based on the portal type of Gantry design. This 5-axis machine is designed for high-performance machining applications. For 100% simultaneous operation, the machine has direct drives in the circular and swiveling axis, which can be clamped. The excellent access to the workpiece is unrestricted, even in the fully automated pallet version. Thanks to its unique concept and its modularity, the machine stands for precise machining applications in both single item production and in rational series production.
Specifications:
Key Points
Rotary/Tilt table with water-cooled direct drives. Clamping in 3-axis increases stability and maximizes tool life.
The HD (High Dynamic) feature offers acceleration rates up to 1G.
High performance 20,000 RPM HSK-A63 in-line spindle delivers 84Nm of torque at 4,450 rpm for high metal removal, yet still providing the higher RPM's for fine surface quality.
30 position toolchanger has easy accessibility for tools up to 3.14" in diameter fully occupied, 5.1" in diameter partially occupied. Tool lengths are accepted up to 11.8".
High resolution glass scales on the X,Y and Z axes.
Fast Heidenhain iTNC530 control presents a neatly designed and user friendly interface.
The HPM 800U HD is subject to strict GF AgieCharmilles quality requirements. Every machine is ISO 230-2(97) checked at the factory. The results are logged.
