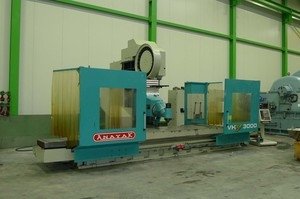

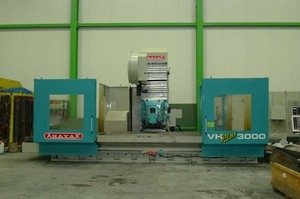

CNC Miller ANAYAK VH-Plus 3000 N
- Make : Anayak - Spain
- Typ : VH-Plus 3000 N
- Age : 2002
- No. : M-20030201
- Table dimensions:
- Length = 3.200
- Width = 1.100
- Load ca. = 6.000
- Movements:
- X. = 3000
- Y. = 1500
- Z. = 1250
- Spindle = iso 50
- Speeds = 50 – 4.000 Rpm
- Milling head power = 18.5 / 22 kW
- Feeding range = 0,01 – 6.000 rpm
- Rapid traverse = 0,01 – 20.000 rpm
- A + B axis Milling head 1° + 2,5° indexing
- CNC Control Fanuc 16 i
- Dimensions = 6,674 / 5.040 / 3,845
- Weight = 22.000 Kg
- Hydr. Tool clamping
- 25 pos. tool changer
- Central lubrication
- Chip conveyor
- More details on www.mach4metal.com
