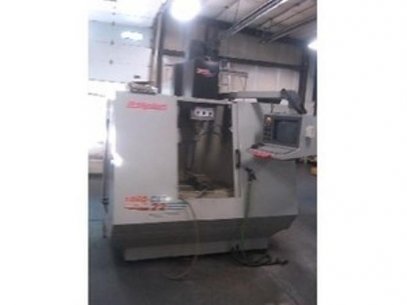

1996 Bridgeport Model TORQ-CUT 22 Vertical Machining Center

Bridgeport Torq 22 VMC 1996 BX 32 CNC Control BT-40 Taper 22 Tool ATC 6000 RPM 7.5 HP
Age: 1996

Table Dimensions 33" x 14"
Table Capacity 750 lbs.
X-Axis Travel 22"
Y-Axis Travel 16"
Z-Axis Travel 20"
Spindle Speed 80 to 6,000 RPM
Spindle Motor 7.5 HP
Taper BT-40
Tool 22 ATC


Equipped With:
BX 32 CNC Control, BT-40 Taper, and 22 Tool ATC.

Specifications
X:22" / 558.8 mm
Y:16" / 406.4 mm
Z:20" / 508mm
Power:7.5 hp / 5.6 kW
RPM:6000 rpm
# ATC:22
Table-W:14" / 355.6 mm
Table-L:33" / 838.2 mm
Taper:BT-40

Control:BRIDGEPORT BX-32
