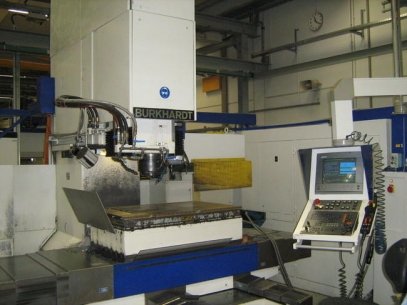

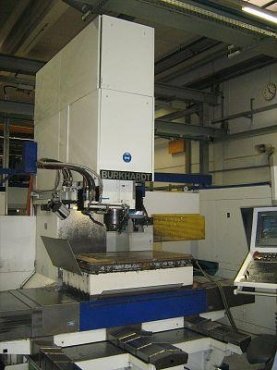

1 used CNC JIG Boring Machine / Vertical Machining Center
retrofitted in 2000
Make BURKHARDT & WEBER,
mod. HYOP 120 NCW

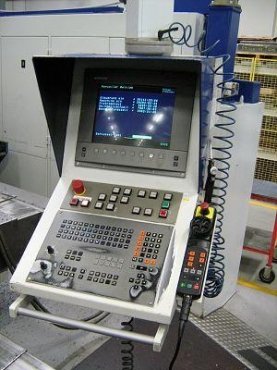

Heidenhain TNC 426 PB
Workrange: 1250 x 630 x 560 mm
main motor: 44 kW
Equipment:

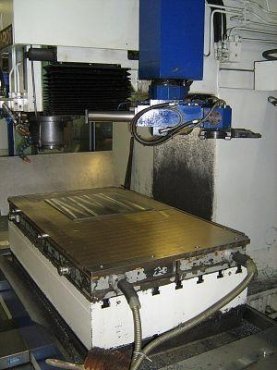

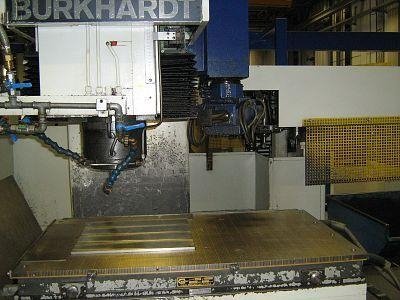

Fixed Table 1200 x 710, Add. Table 200 mm,
36-station Tool Changer, Cooling.
Heidenhain Probe TS 630
- without the Magnetic Table -
Remarks:
Spindle ISO 50, Speedrange 30-3000 min-1
max. Torque 522 Nm
Feed Rate 3-2000 mm, Rapid Feed 10 m/min
Distance Spindle - Table Surface 725 mm
Distance Spindle - Column 800 mm.
Measurements ca. 5 x 5 m, Weight ca. 12 to
Die Maschine was retrofitted in 2000
with Siemens AC-Drives and Heidenhain Control
