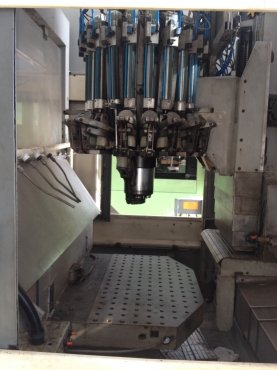

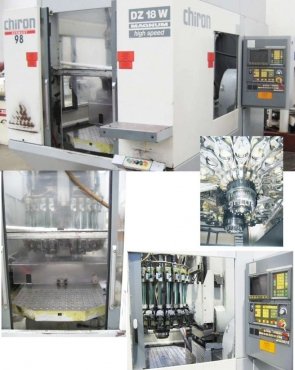

Vertical machining center Chiron DZ18W Magmum High Speed

ROTOPALLET 2 x 850 x 460mm
tools / tools = 2x12, type ISO 40
dia max 65mm (180mm with spaces)
Maximum tool length 250mm

2 spindles / 2 spindles
wheelbase 320mm / 320mm distance between spindles
Mandirino / spindle 10500 rpm / RPM @ 18,5kW (100%)
Drilling max dia 2x30mm
Max 2xM24 thread
milling max 2x150 cm3 / min

X1 - X2 = 400mm
Y = 410mm
Z = 625mm


Fanuc OM
Magnetic Separators - Magnetic swarf conveyor


More photos and videos: http://mimu.blogspot.com/
(menu on the right -> the machines are listed by type / brand in alphabetical order)

-
