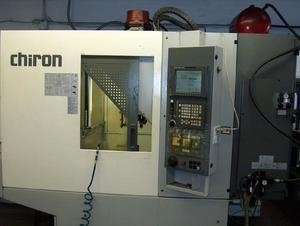

12"X, 10"Y, 10"Z, CHIRON FZ08W, 2000,12ATC,Fanuc 21M,10,500 RPM,Rigid Tap,Tnsfrm

General Specifications As Per Brochure
Delivered & Installed December 2000
CNC Control: Fanuc 21M
Travel:
X-Axis: 12"
Y-Axis: 10"
Z-Axis: 10"
Motor: 2.0 HP @ 100%
5.0 HP # 25%
Spindle Speed: 20 - 10,500 RPM
# of Tools: 12, HSK32 taper
Equipped With (Must Be Verified By Buyer):
Workpiece Swivel Table
AC Servo Motors
Steel Covers on All Axes
3 Axes Continuous Path Control
Machine Enclosure
Mini-Operating Panel
Coolant Equipment w/Chip Container
Installation Elements
Rigid Tapping
Standard Transformer
Multi-Tap Transformer - 240/480 Volts/ 3 Phase/ 60 Cycles
Wash Gun
Increased Spindle Speed Range
Laser 40 Control
Built-In Handwheel
Tooling Start Kit

Coolant: Ran only light oil w/o sulphers or chlorides
