Motor at 100%: 9.4 HP (7kW)
Motor at 25%: 18.8HP (14kW)
Main Spindle Speeds: 0-30,000 RPM
Turning Spindle speeds: 15 - 8,000 RPM *

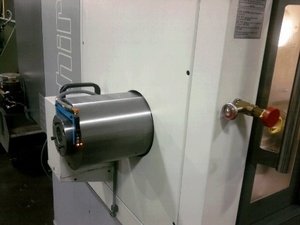

*Barfeed Interface included (originally interfaced for an LNS bar feed)

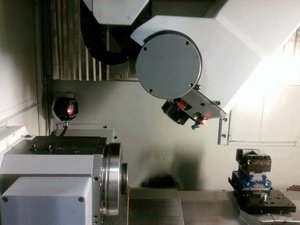

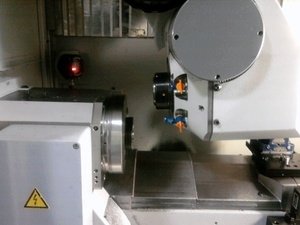

NC Swivel Head: -20 / +115 deg
Rapid traverse: 60 RPM
Increments: 0.0001 deg
with direct measuring system: +/- 5"
Swivel Head Speed: 0.5 seconds to swivel from 0-90deg
Drilling capacity in steel 60: 0.47" (12mm)
Tapping capacity: 0.31" (M8)
Milling capacity in steel 60: 1.893 ci/min (30 cm3/min)
Automatic Tool Changer: 40 tools
Tool Shank: HSK-A 40 DIN 69893
Max tool Dia: 1.97"(adj. magazine pos are full)
Max tool Dia: 3.94"(adj. magazine position open)
Tool length: 6.3" (160mm)
Max tool weight: 2.6 lbs
Tool Change time: 0.8 sec
Chip-to-chip time: 1.9 sec

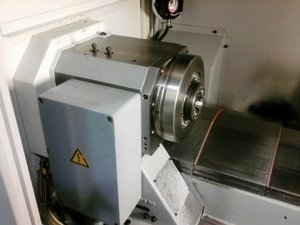

Lathe spindle capacity (water cooled): 32mm (1.25")
Motor: 4kW @ 100% / 8.5kW @ 15%
Spindle speeds: 15-8,000 rpm
with direct measuring system and pneumatic clamping
Collet Chuck 12kN with integrated pneumatic actuation
NC-feeding unit as bar feeder
rapid traver: 60m/min
stroke: 460mm, depending on fixture

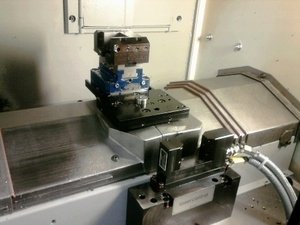

Fixed Table with chip pan
clamping sur: 30.3" x 11.4" (770 x 290 MM)
with thread and locating hole grids: M16 x diameter 15 H7 x 50mm
Table Load Cap: 1100 lbs (500kg)
Only 3500 Spindle Hours
Machine is in near new condition
Note: 30,000 RPM Milling spindle option included
Originally interfaced for an LNS Bar Feeder, interface included
