High pressure through the spindle 70 bar (see note 4 ****)

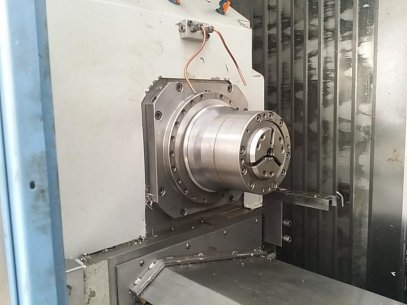

CN inverter with vice for processing the 6th side (v. Note 5)
Optical lines presurrizzate
Chip conveyor band scraping
Susceptibility meter Renishaw
Year Built 2006
Weight 7500 kgs
Package turning
Technology package for turning the bar machining spindle with water cooling with hollow shaft for passing the bar up to max diam. 65 mm.
R / min: 15/4500
Max power 42.5 KW with activation time to 5% 90 Nm.
with direct measuring systems and hydraulic clamping 800 Nm.
Bar loader ILS-RBK- 10012 65
for the processing of material of D = 5 mm length 600-1200 mm extraction of the blanks advanced through the machine minimum length of the segments 70 mm.
Highspeed construction (2 **)
rapid speed of 60m / min. all axes Spindle 20-12000 min. '- 140 laps Nm.12.000
12.5 KW / Max 34kW

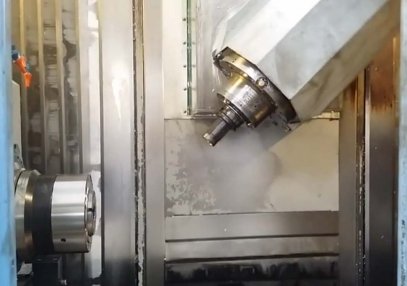

Motor spindle with NC swivel head ± 100 °
Notes:
* 1
Package 5-axis milling for 5-axis simultaneous machining and processing card High Speed RISC
** 2
rapid speed of 60m / min. all axes Spindle 20-12000 min. '
- 140 laps Nm.12.000
12.5 KW / Max 34kW spindle motor with NC swivel head ± 100 °
*** 3
Tools diam. 75 mm.
With adjacent tools 160 mm max.
Maximum length 320 mm
Tool weight up to 4 kg.
**** 4
High pressure pump at 70 BAR
Capacity 20lt. / Min. to 30 bar - 11lt. / min at 70 bar with valve imitator pressure Vario; Programmable for 8 pressure stages, with fixed setting 20,
30,40,50,55,60,65,70 bar
Refrigeration system PF 50 / FKA 900 with tank 900lt., With normal pump capacity 100 l / min. to 2.1 bar up to 250 lt / min. to 1.8 bar and the high pressure pump
20 l / min. to 30 bar, filtering
Partial circuit high pressure through filter paper PF50;
5 *****
CN inverter with clamp for the machining of the 6th side, mounted on the slide CN stroke per jaw 16mm. Included predisposition assa CN, including expansion hydraulic control unit for locking / unlocking the grip and locking turntable included
