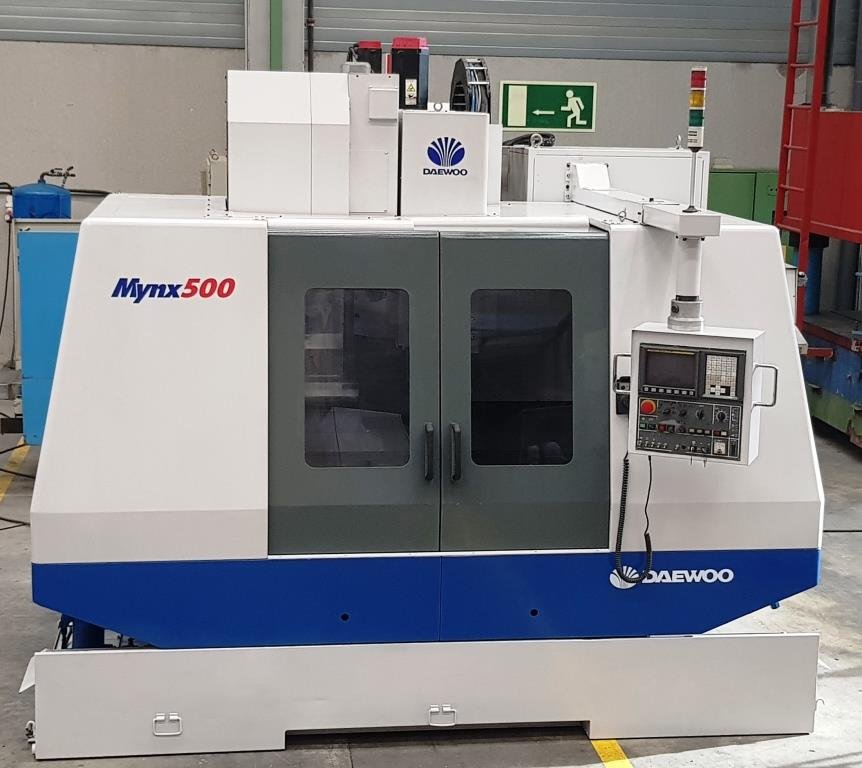

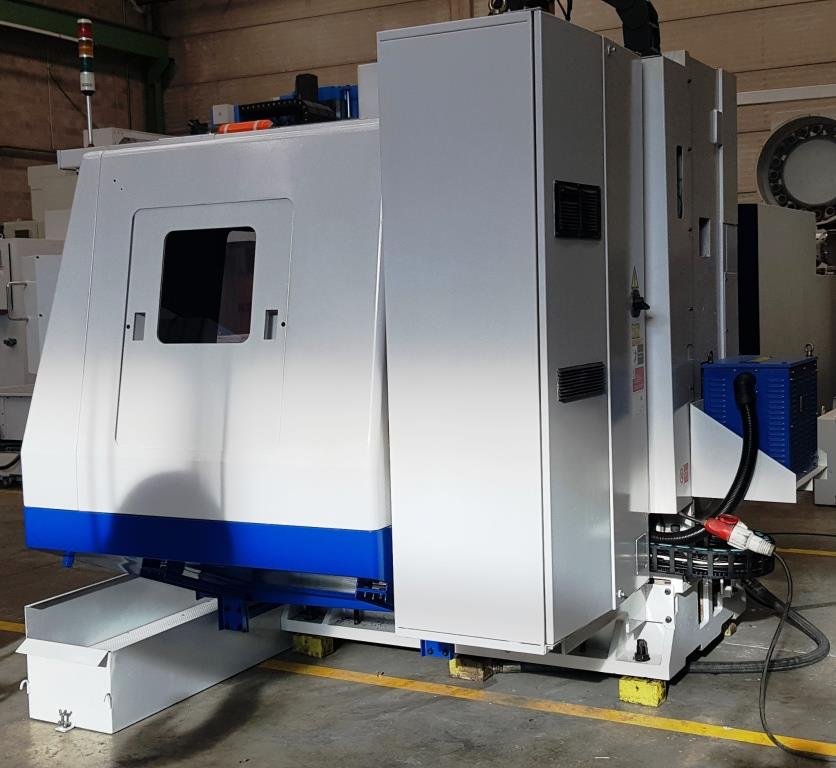

The manufacturer of vertical machining center DAEWOO MYNX 500 It enjoys great prestige in terms of economic machine, great performance and great results. We can highlight that, despite being a machining center with an X axis travel of 1,000 mm, the table surface is 1,200 mm. In addition, its vertical travel of 625 mm makes this machine depart from the standards of 500 mm vertically. Its 8,000 revolutions and its internal cooling make it a very versatile machine and very useful in the fields of general machining, mold and small tooling. Likewise, also highlight the RANDOM 24-tool charger with which it is equipped.
Specifications:
Table: 1200x500 mm
Max weight on table: 800 kgs
X-axis traverse: 1020 mm
Y-axis traverse: 510 mm
Z-axis traverse: 625 mm
Spindle taper: ISO-40
Speed range: 8.000 r.p.m.
Rapid traverses (X,Y): 24 m/min
Rapid traverse (Z): 20 m/min
Approximate machine weight: 7,500 Kgs
Machine dimensions: 3275x2948x2996 mm
Year: 2001
Equipped with:

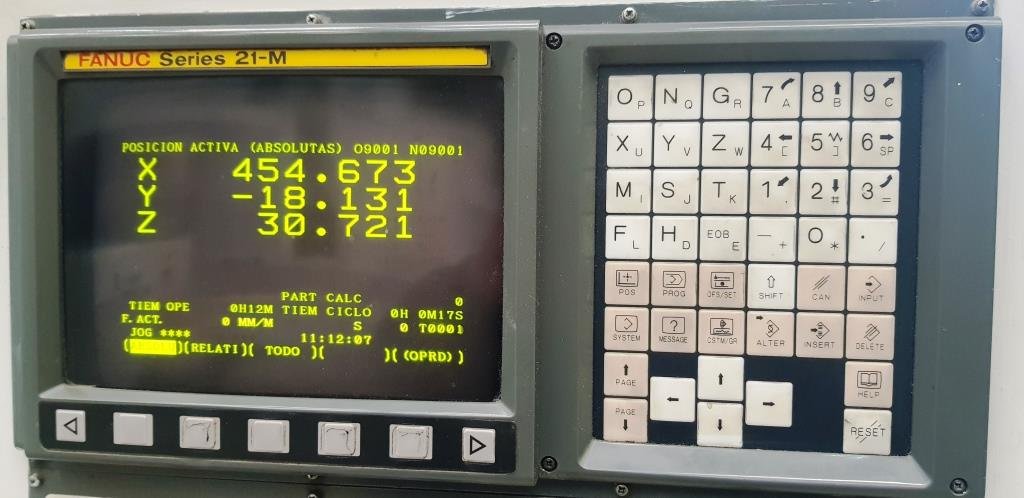

FANUC SERIES 21 iM control
Electronic handwheel
Tool Changer RANDOM 24 tools
Internal coolant supply
