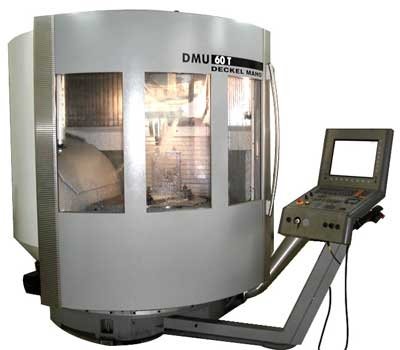

xyz 630mm/560mm/560mm, Heidenhain Mill Plus IT control
integrated NC-rotary table (c-axis)
NC-swivel head (full b-axis), inner coolant device
infrared measuring feele

x-travel 630 mm
y-travel 560 mm
z-travel 560 mm
b-axis 0-103 °
c-axis 0-360 °
spindle taper SK 40
spindle speed range 20-12000 rpm
number of tool places 20
infeed up to 15000 mm/min
rapid feed 26,26,20 m/min
drive capacity 40%, 100% ED 15 / 10 kW
weight ca. 6000 kg

6000kg
